Toyota AURIS — SHIFT LEVER & RETAINER

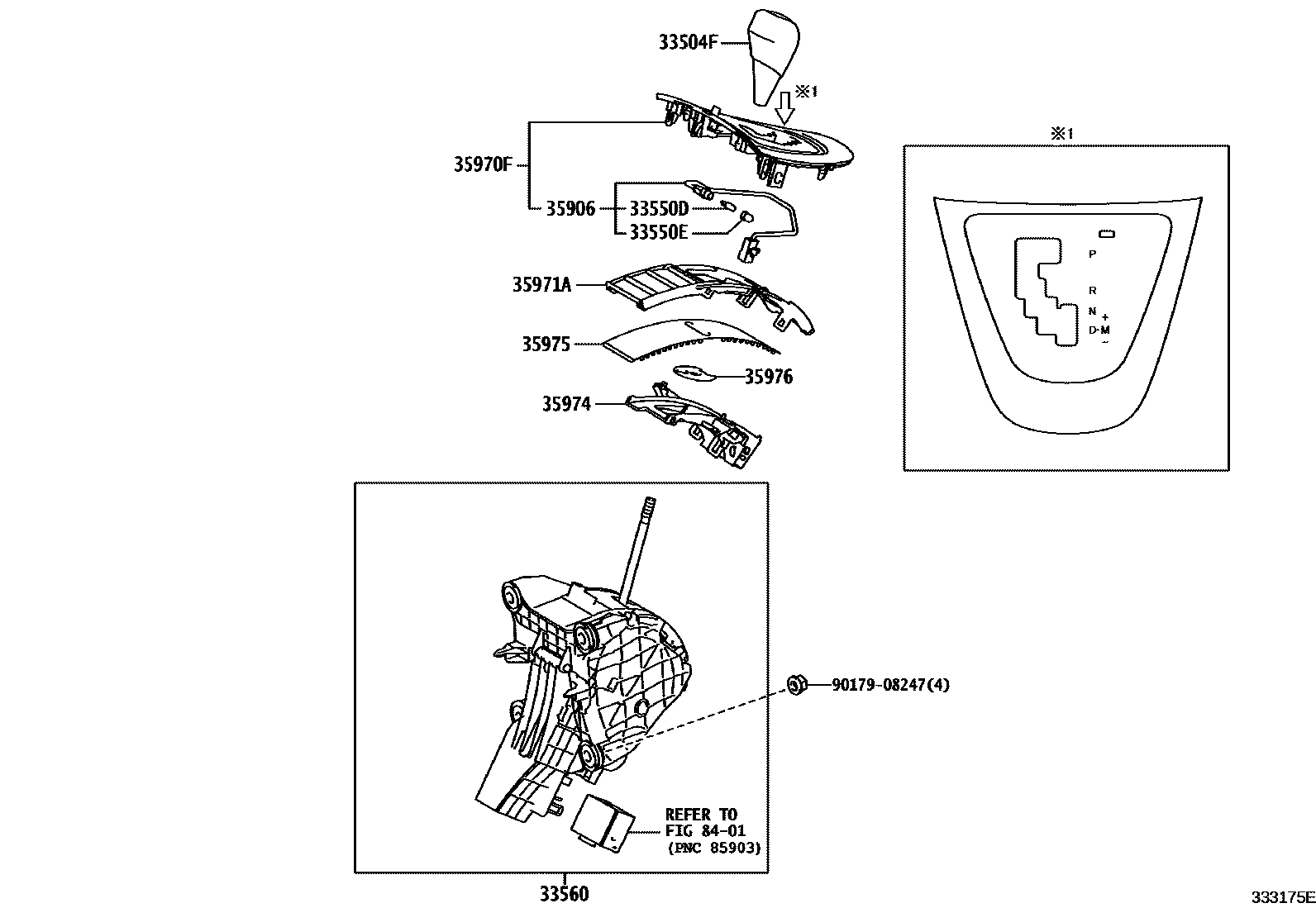

Parts diagram

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12330-B1i200910-201201

DK.GRAY,TRIM1#,4#

main33504-12330-C0i201201-201208

BLACK,TRIM1#

main33504-12290-B0i200610-200812

main33504-12290-B2supersedes 33504-12280-B0i200910-201208

33550DBULB, POSITION INDICATOR LAMP

main90981-11014i200610-200812

33550ECAP, POSITION INDICATOR LAMP

main35956-12020i200812-200910

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12210i200812-200910

main33560-12190supersedes 33560-12450i200610-200812

main33560-12420supersedes 33560-12450i200910

main33560-12430i200910-201012

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12220i200610-200812

main35906-12240i200910

35970FHOUSING ASSY, POSITION INDICATOR

main35970-12030i200610-200812

main35970-12050i200610-200812

main35970-12210i200910

main35970-12220i200910

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12460i200610-200812

main35971-12560i200910

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12210i200610-200812

main35974-12320i200910

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12380i200610-200812

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-12150i200910

main35976-28010i200610-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908247

main90179-08247

12 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota AURIS

This section contains 24 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota AURIS. Key components include: GEAR SHIFT FORK & LEVER SHAFT (MTM), KNOB SUB-ASSY, SHIFT LEVER, LEVER ASSY, SHIFT (FOR FLOOR SHIFT), BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP.
