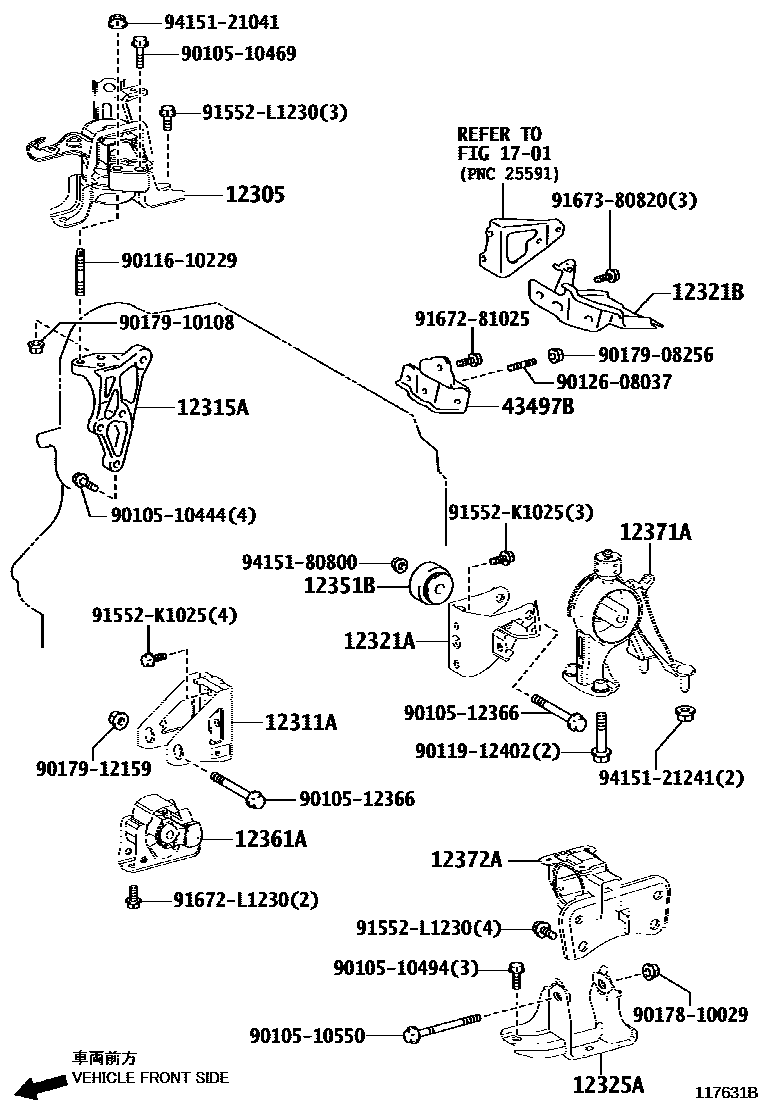

Toyota AURIS — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351BDAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
1701MANIFOLD
43497BBRACKET, DRIVE SHAFT HEAT INSULATOR
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510550
main90105-10550
9010512366
main90105-12366
9011610229
main90116-10229
9011912402
main90119-12402
9012608037
main90126-08037
9017810029
main90178-10029
9017908256
main90179-08256
9017910108
main90179-10108
9017912159
main90179-12159
91552K1025
main91552-K1025
91552L1230
main91552-L1230
9167281025
main91672-81025
91672L1230
main91672-L1230
9167380820
main91673-80820
9415121041
main94151-21041
9415121241
main94151-21241
9415180800
main94151-80800
32 parts on this diagram · 6 diagrams in section
MOUNTING for Toyota AURIS
This section contains 43 genuine Toyota parts for the MOUNTING system of the Toyota AURIS. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
