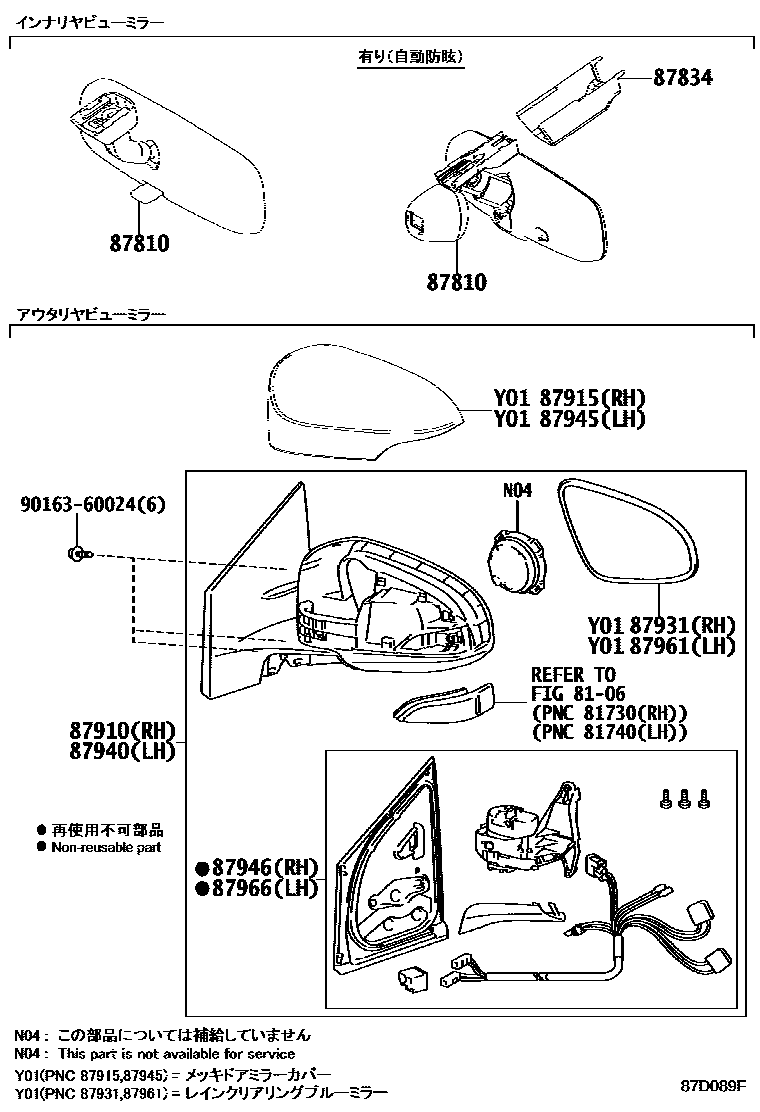

Toyota AURIS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
BLACKISH RED MC.,3R0
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8T7
BLUE ME.,8X7
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
BLACKISH RED MC.,3R0
AVANT-GARDE BRONZE ME.,4V8
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8T7
BLUE ME.,8X7
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024
12 parts on this diagram · 2 diagrams in section
MIRROR for Toyota AURIS
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota AURIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
