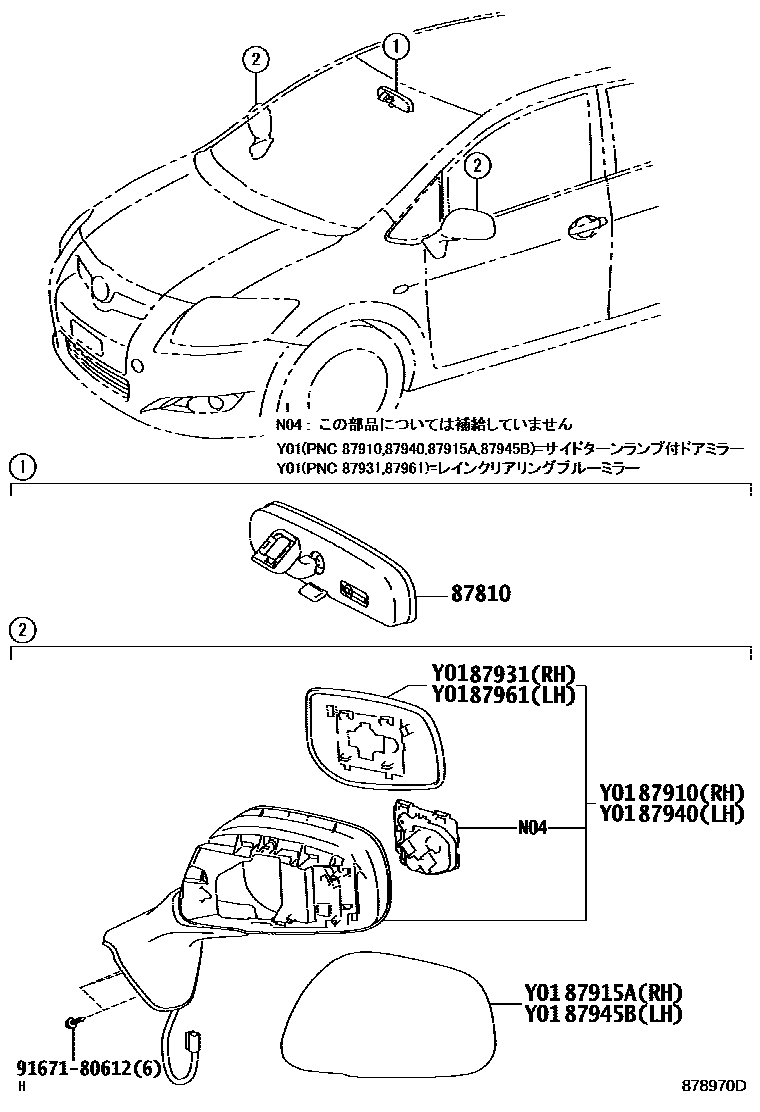

Toyota AURIS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
BLUE ME.,8T4
BLUE ME.,8T7
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1C0
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
PURPLE ME.,9AD
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
DK.BLUE MC.,8S6
BLUE ME.,8T4
BLUE ME.,8T7
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1C0
BLACK MC.,209
RED M.M.,3R3
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
PURPLE ME.,9AD
87961MIRROR OUTER, LH
9167180612
main91671-80612
8 parts on this diagram · 2 diagrams in section
MIRROR for Toyota AURIS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota AURIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
