Toyota AURIS — METER

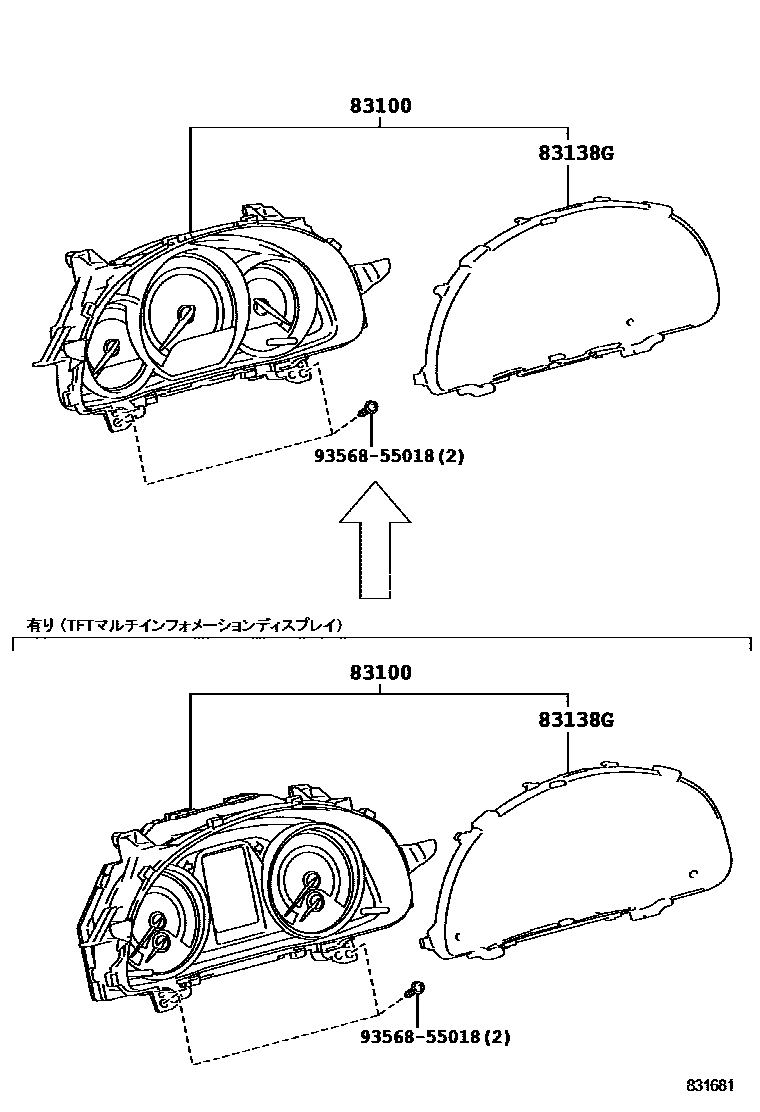

Parts diagram

83100METER ASSY, COMBINATION

main83800-12V30i201208-201309

main83800-12V31i201309-201503

main83800-12X40i201604

main83800-12Z70supersedes 83800-12Z80i201503

main83800-12Z90i201503

main83800-12V50i201208-201305

main83800-12V51i201306-201309

main83800-12V52i201309-201503

main83800-12Z60supersedes 83800-12Z80i201405-201503

83138GGLASS, COMBINATION METER

main83852-12V30i201208-201503

main83852-12Z70supersedes 83852-12V30i201503

main83852-12V50i201208-201503

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section
