Toyota AURIS — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-12B40-E0i200801-200812

main58510-12B50-E0i200812-200910

main58510-12B60-E0i200910-201208

main58510-12C10-B1supersedes 58510-12C00-B1i200610-200812

main58510-12C30-B1supersedes 58510-12C20-B1i200812-200910

main58510-12F40-B0supersedes 58510-12A70-B0i201010-201208

main58510-12G00-E0i200910-201208

58511HMAT, FLOOR, FRONT RH

main58512-12200supersedes 58512-12190i200610-200812

58512BMAT, FLOOR, FRONT LH

main58511-12620supersedes 58511-12610i200812-200910

58521BHOOK, FLOOR CARPET

main58521-12140×10i200610-200812

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2i200812-200910

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12040i200812-200901

main58561-12041i200910

main58561-12050i200610-200812

main58561-12051i200902-200910

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0i200610-200812

DK.GRAY

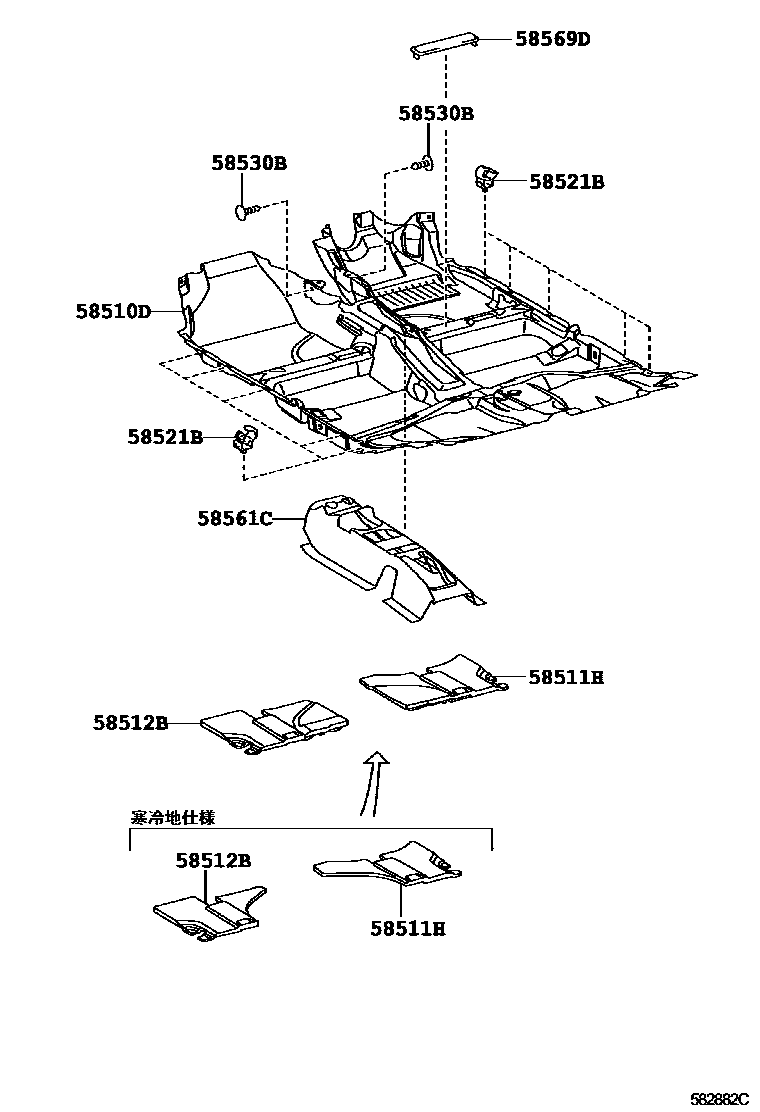

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota AURIS

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota AURIS. Key components include: CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT RH, MAT, FLOOR, FRONT LH, HOOK, FLOOR CARPET, CLIP(FOR FRONT FLOOR CARPET).
