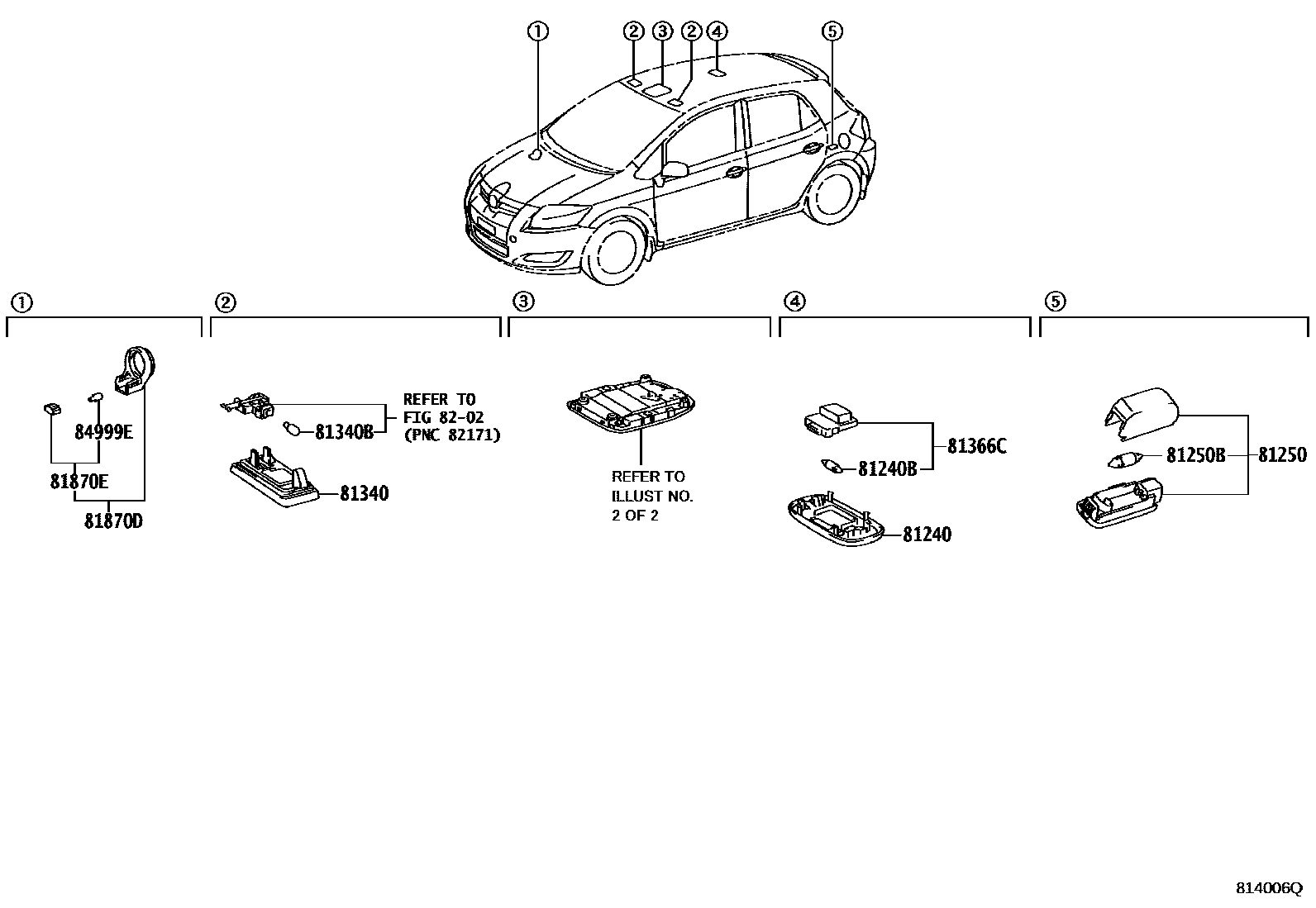

Toyota AURIS — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1i200812-200910

LT.GRAY,TRIM1#

main81240-52040-E0i200910-201208

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200812-200910

81250LAMP ASSY, ROOM, NO.2

main81240-05041i200910-201010

main81330-05050i201010

81250BBULB, ROOM LAMP, NO.2

main90981-WE002i200610-200812

81340LAMP ASSY, VANITY

main81340-30100-B0×2i200910-201208

LT.GRAY,TRIM1#

main81340-30100-E1×2i200910-201208

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i200910-201208

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200610-200812

81870DLAMP ASSY, KEY CYLINDER

main81870-42020i200910

81870EBULB, KEY CYLINDER LAMP

main90010-01030i200610-200812

8202WIRING & CLAMP

→ Go to FIG 82-02

84999EBULB, KEY CYLINDER LAMP

main84999-10250i200610-200812

11 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota AURIS

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota AURIS. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LAMP ASSY, MAP.
