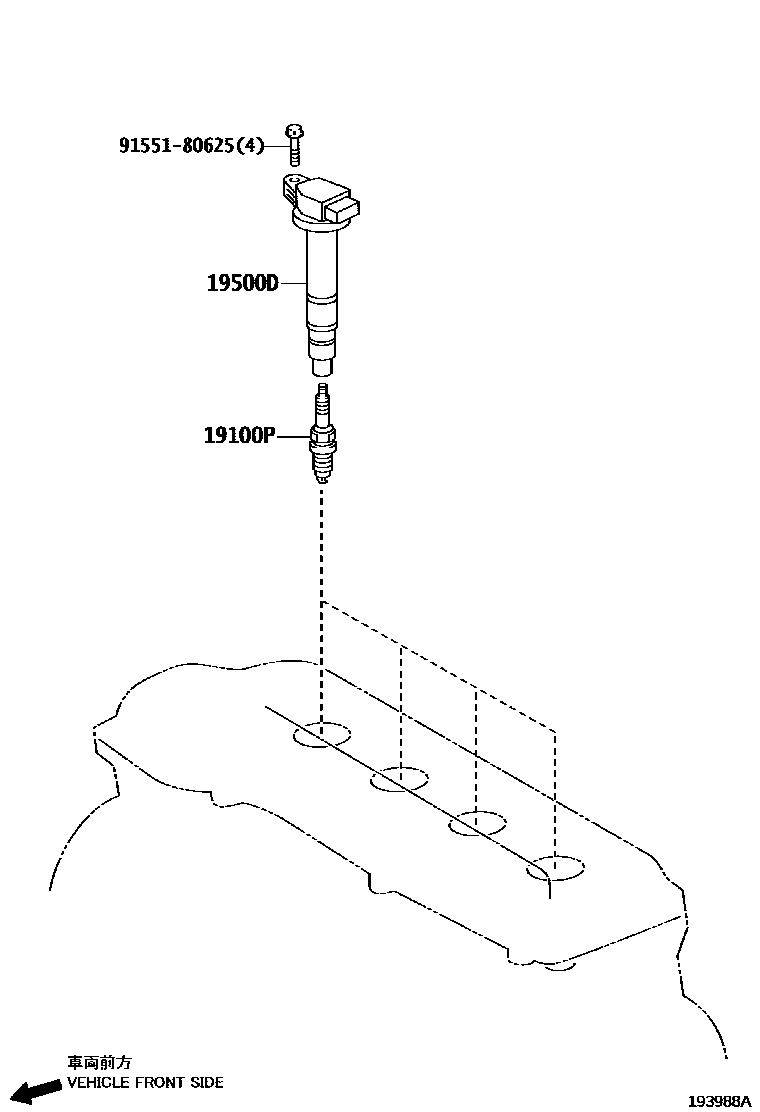

Toyota AURIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01243×4i201208-201503

main90919-01253×4i201208-201503

main90919-01275×4i201504

main90919-01285×4i201503

19500COIL ASSY, IGNITION

main90919-02258×4i201208-201503

19500DCOIL, IGNITION, NO.1

main90919-02260×4i201208-201503

main90919-02271×4i201503

9155180625

main91551-80625

4 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AURIS

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AURIS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
