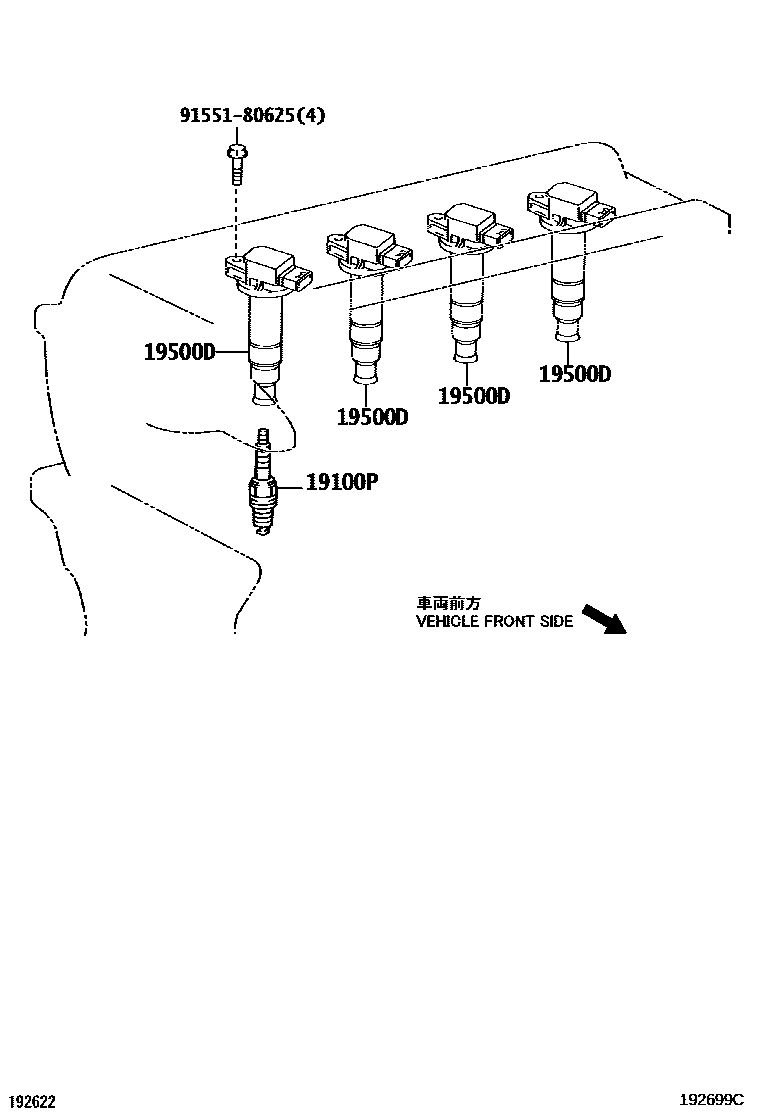

Toyota AURIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01243×4i200812-200910

main90919-01247×4i200610-200709

main90919-01253×4i200812-200910

19500COIL ASSY, IGNITION

main90919-02252×4i200610-200812

main90919-02258×4i201004

19500DCOIL, IGNITION, NO.1

main90919-02248×4i200610-200812

main90919-02260×4i201010

9155180625

main91551-80625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AURIS

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AURIS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
