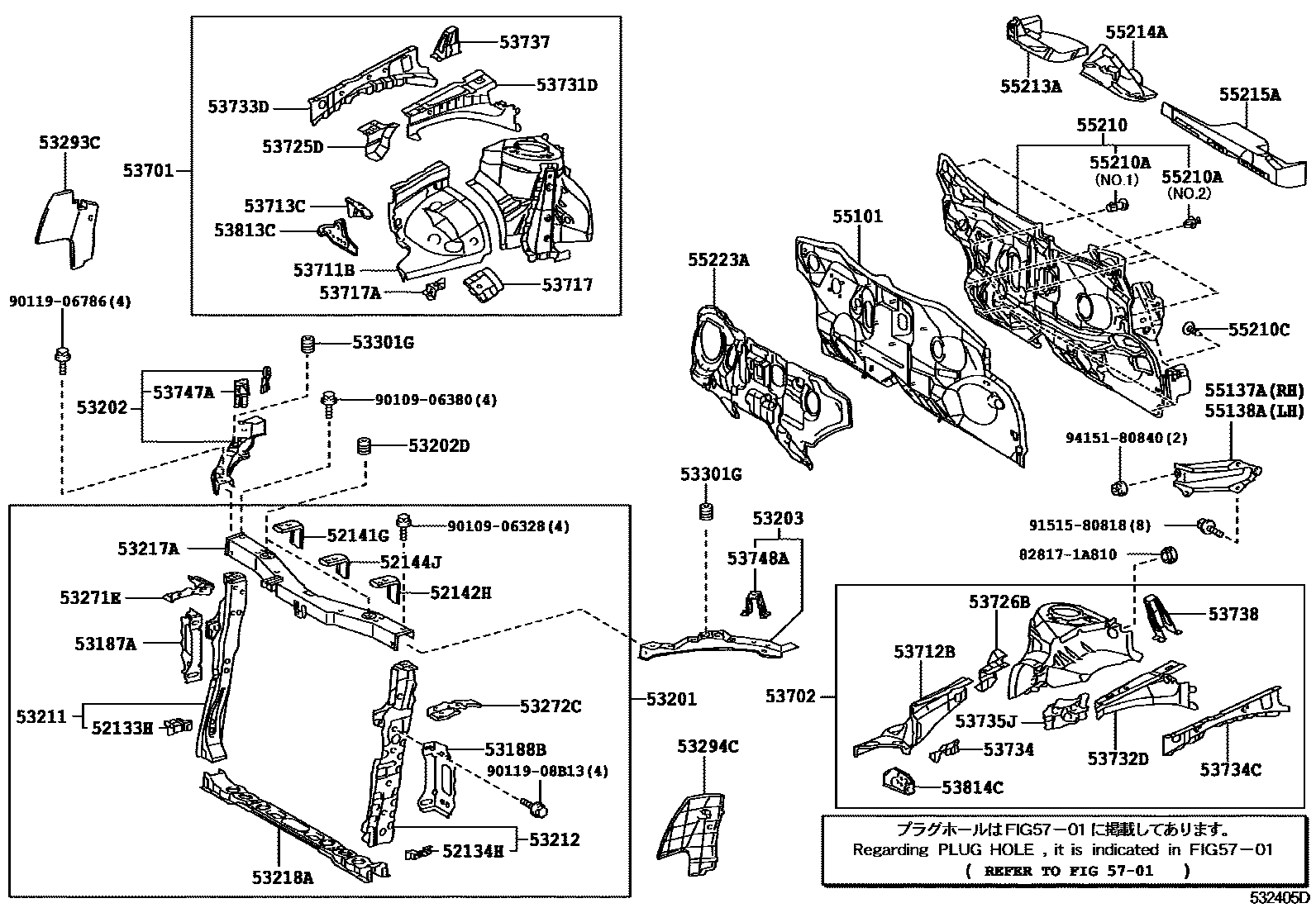

Toyota AURIS — FRONT FENDER APRON & DASH PANEL

52133HBRACKET, FRONT BUMPER, RH

main52133-12150i200610-200812

52134HBRACKET, FRONT BUMPER, LH

main52134-12090i200610-200812

52141GSTAY, FRONT BUMPER, RH

main52081-12020i200610-200812

52142HSTAY, FRONT BUMPER, LH

main52082-12020i200610-200812

52144JSTAY, FRONT BUMPER, CENTER

main52085-12010i200610-200812

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030i200610-200812

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030i200610-200812

53201SUPPORT SUB-ASSY, RADIATOR

main53201-12902i200610-200812

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12480i200610-200812

53202DCUSHION, RADIATOR SUPPORT

main90541-15022×2i200610-200812

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12430i200610-200812

53211SUPPORT, RADIATOR, RH

main53209-12140i200610-200812

53212SUPPORT, RADIATOR, LH

main53204-12060i200610-200812

53217ABRACE, HOOD LOCK SUPPORT

main53208-12560i200610-200812

53218ASUPPORT, RADIATOR, LOWER

main53218-12901i200610-200812

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-12050i200610-200812

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-12030i200610-200812

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-12030i200610-200812

main53293-12090i200910

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-12050i200610-200812

main53294-12120i200910

53301GCUSHION, HOOD BUMPER

main53384-50010×2i200910

main90541-15019×2i200610-200812

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A170i200610-200812

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A100i200610-200812

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12270i200610-200812

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12220i200610-200812

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160i200610-200812

53717PLATE, FENDER APRON, RH

main53717-12070i200610-200812

53717APLATE, FENDER APRON

main53718-12060i200610-200812

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040i200610-200812

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040i200610-200812

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170i200610-200812

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150i200610-200812

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070i200610-200812

53734PATCH, FRONT FENDER APRON, NO.4

main53736-12070i200610-200812

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070i200610-200812

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-12070i200610-200812

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12070i200610-200812

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12040i200610-200812

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-12020i200610-200812

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-12030i200610-200812

53813CEXTENSION, FRONT FENDER, RH

main53813-12100i200610-200812

53814CEXTENSION, FRONT FENDER, LH

main53814-12050i200610-200812

55101PANEL SUB-ASSY, DASH

main55101-12B10i200610-200812

main55101-12B20i200910-201208

55137ABRACE, DASH TO FRAME, RH

main55137-12030i200610-200812

55138ABRACE, DASH TO FRAME, LH

main55138-12010i200610-200812

55210INSULATOR ASSY, DASH PANEL

main55210-12540i200610-200812

55210ACLIP

main90467-11122×5i200610-200812

main90467-11127×3i200610-200812

55210CCLIP

main90467-08186-C0×4i200610-200812

BLACK

55213APAD, DASH PANEL SILENCER

main55213-12660i200610-200812

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-12040i200610-200812

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-12110i200610-200812

55223AINSULATOR, DASH PANEL, OUTER

main55223-12170i200610-200812

5701HOLE PLUG

→ Go to FIG 57-01

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906328

main90109-06328

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

9151580818

main91515-80818

9415180840

main94151-80840

59 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota AURIS

This section contains 59 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota AURIS. Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, STAY, FRONT BUMPER, CENTER.
