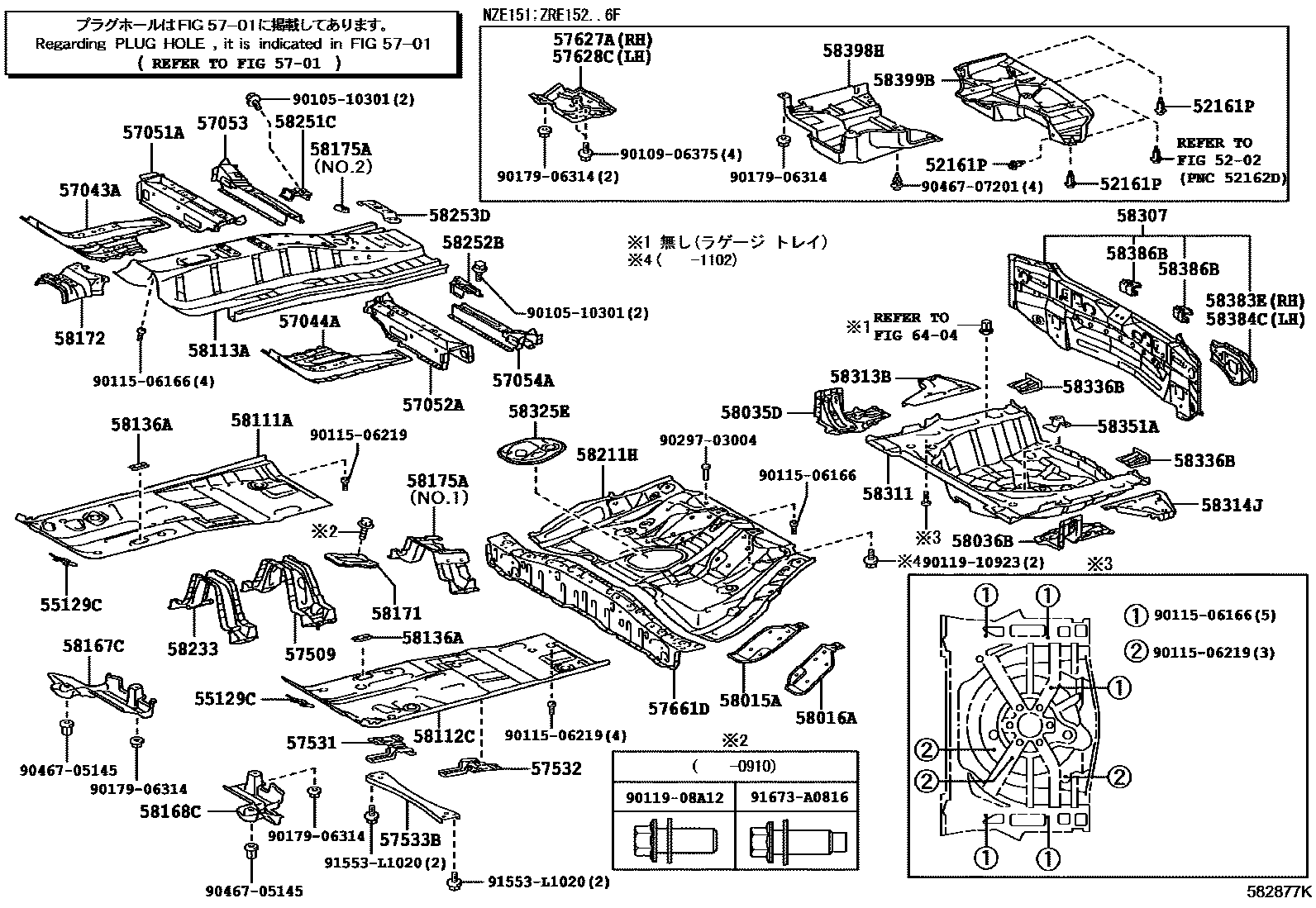

Toyota AURIS — FLOOR PAN & LOWER BACK PANEL
5202REAR BUMPER & BUMPER STAY
52161PPIECE, REAR BUMPER
55129CCOVER, DASH PANEL HOLE
5701HOLE PLUG
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57533BBRACE, FRONT FLOOR, CENTER
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58167CCOVER, FRONT FLOOR, CENTER RH
58168CCOVER, FRONT FLOOR, CENTER LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313BPANEL, REAR FLOOR SIDE, RH
58314JPANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58398HCOVER, FLOOR UNDER, NO.1
58399BCOVER, FLOOR UNDER, NO.2
6404DECK BOARD & DECK TRIM COVER
9010510301
main90105-10301
9010906375
main90109-06375
9011506166
main90115-06166
9011506219
main90115-06219
9011908A12
main90119-08A12
9011910923
main90119-10923
9017906314
main90179-06314
9029703004
main90297-03004
9046705145
main90467-05145
9046707201
main90467-07201
91553L1020
main91553-L1020
91673A0816
main91673-A0816
60 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota AURIS
This section contains 65 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota AURIS. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, REAR BUMPER & BUMPER STAY, PIECE, REAR BUMPER, COVER, DASH PANEL HOLE, HOLE PLUG.
