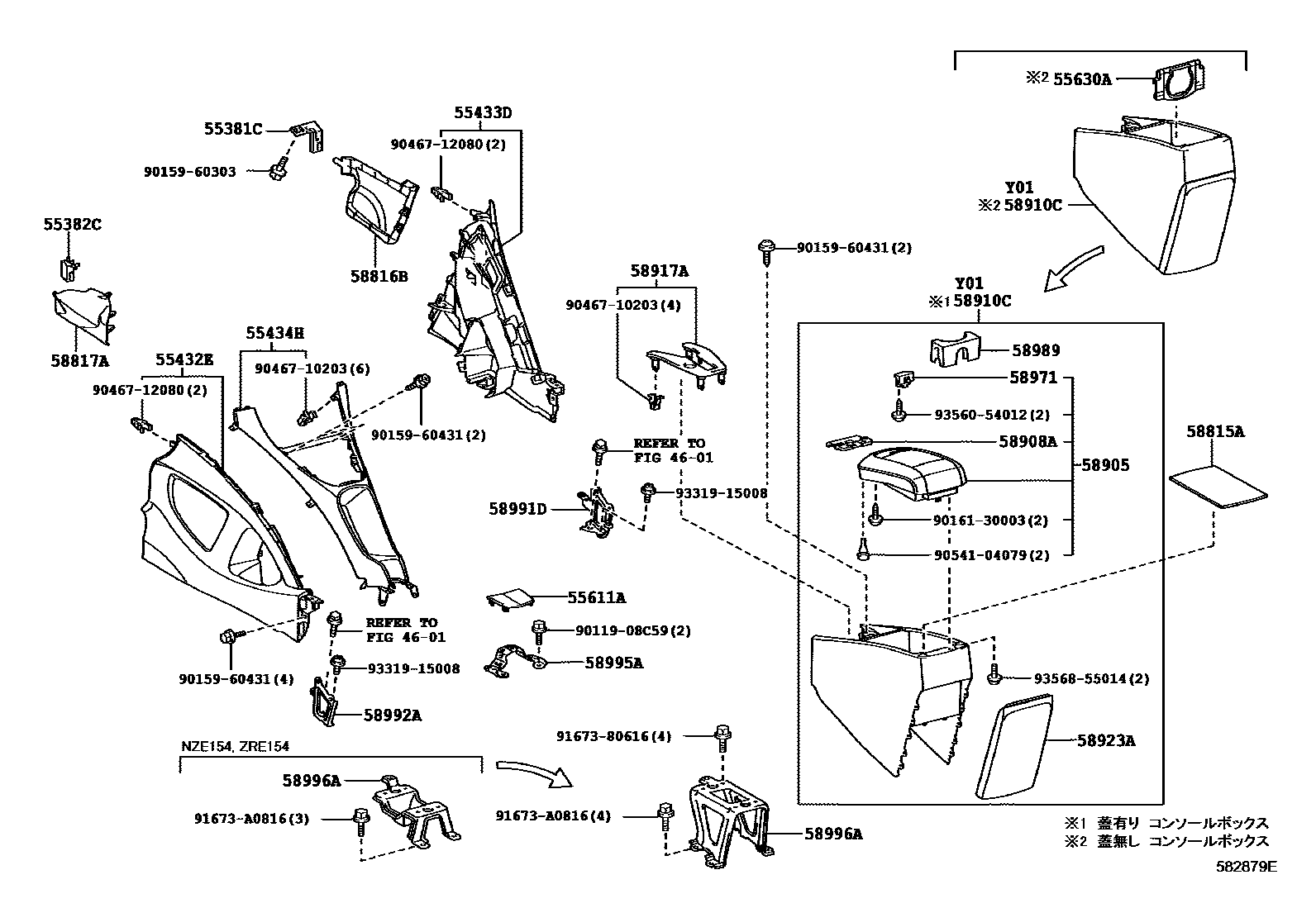

Toyota AURIS — CONSOLE BOX & BRACKET

0001 1 0002 1

4601

55381CBRACKET, FINISH PANEL MOUNTING, NO.1

main55389-42020iNZE15#,ZRE15#200610-200812

55382CBRACKET, FINISH PANEL MOUNTING, NO.2

main55388-42020iNZE15#,ZRE15#200910

55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55432-12460-B0iNZE15#,ZRE15#200812-200910

DK.GRAY,TRIM1#,4#

main55432-12520-B0iNZE15#,ZRE15#200910-201208

DK.GRAY,TRIM1#,4#

55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12200-B0iNZE15#,ZRE15#200812-200910

DK.GRAY,TRIM1#,4#

main55433-12210-B0iNZE15#,ZRE15#200910-201208

DK.GRAY,TRIM1#,4#

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12230-B0iNZE15#,ZRE15#200812-200910

DK.GRAY,TRIM1#,4#

main55434-12240-B0iNZE15#,ZRE15#200910-201208

DK.GRAY,TRIM1#,4#

55611ATRAY, INSTRUMENT PANEL UNDER

main55611-12110-B0iNZE15#,ZRE15#200910-201208

DK.GRAY,TRIM1#,4#

55630AHOLDER, REAR CONSOLE BOX, CUP

58815ACARPET, CONSOLE BOX

main58815-12100iNZE15#,ZRE15#200610-200812

main58815-12190iNZE15#,ZRE15#200910

58816BINSERT, CONSOLE BOX

main58816-12010-B0iNZE15#,ZRE15#200610-200812

DK.GRAY,TRIM1#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-12040-B0iNZE15#,ZRE15#200610-200812

DK.GRAY,TRIM1#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12580-B0iZRE15#200610-200812

DK.GRAY,TRIM1#,4#

main58905-12760-B1iZRE152..6F200910-201208

DK.GRAY,TRIM1#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZRE15#200812-200910

58910CBOX ASSY, CONSOLE, REAR

main58910-12360-B0iNZE151200812-200910

DK.GRAY,TRIM1#

main58910-12370-B0supersedes 58910-12360-B0iNZE151200610-200812

DK.GRAY,TRIM1#,4#

main58910-12380-B0iNZE154200812-200910

DK.GRAY,TRIM1#

main58910-12390-B0supersedes 58910-12380-B0iNZE154200812-200910

main58910-12710-B0iNZE151,ZRE152200910-201208

DK.GRAY,TRIM1#,4#

main58910-12730-B0iNZE154,ZRE154200910-201208

DK.GRAY,TRIM1#,4#

58917ACOVER, CONSOLE BOX, REAR

main58917-12010-B0iNZE154200812-200910

DK.GRAY,TRIM1#,4#

main58917-12060-B0iNZE151200812-200910

DK.GRAY,TRIM1#,4#

main58917-12090-B1iNZE154,ZRE154200910-201011

DK.GRAY,TRIM1#,4#

main58917-12091-B1iNZE154,ZRE154201012-201101

DK.GRAY,TRIM1#,4#

main58917-12092-B1iNZE154,ZRE154201101-201208

DK.GRAY,TRIM1#,4#

main58917-12100-B1iZRE152..6F200910-201011

DK.GRAY,TRIM1#,4#

main58917-12101-B1iZRE152..6F201012-201101

DK.GRAY,TRIM1#,4#

main58917-12102-B1iZRE152..6F201101-201208

DK.GRAY,TRIM1#,4#

58923APANEL, CONSOLE REAR END

main58923-12040-B0iNZE151200610-200812

DK.GRAY,TRIM1#,4#

main58923-12050-B0iNZE154200610-200812

DK.GRAY,TRIM1#,4#

58971LOCK, CONSOLE COMPARTMENT DOOR

main55631-12050-B0iZRE15#200610-200812

DK.GRAY,TRIM1#,4#

58989PANEL, CONSOLE COMPARTMENT DOOR

main58989-12010-B0iZRE15#200610-200812

DK.GRAY,TRIM1#,4#

58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH

main58991-12060iNZE15#,ZRE15#200812-200910

58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH

main58992-12030iNZE15#,ZRE15#200812-200910

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12100iNZE15#,ZRE15#200910

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12110iNZE151,ZRE152200812-200910

main58996-12130iNZE154,ZRE154200610-200812

main58996-12150iNZE151,ZRE152200910

main58996-12200iNZE154,ZRE154200910

9011908C59

main90119-08C59

9015960303

main90159-60303

9015960431

main90159-60431

9016130003

main90161-30003

9046710203

main90467-10203

9046712080

main90467-12080

9054104079

main90541-04079

9167380616

main91673-80616

91673A0816

main91673-A0816

9331915008

main93319-15008

9356054012

main93560-54012

9356855014

main93568-55014

34 parts on this diagram · 2 diagrams in section
