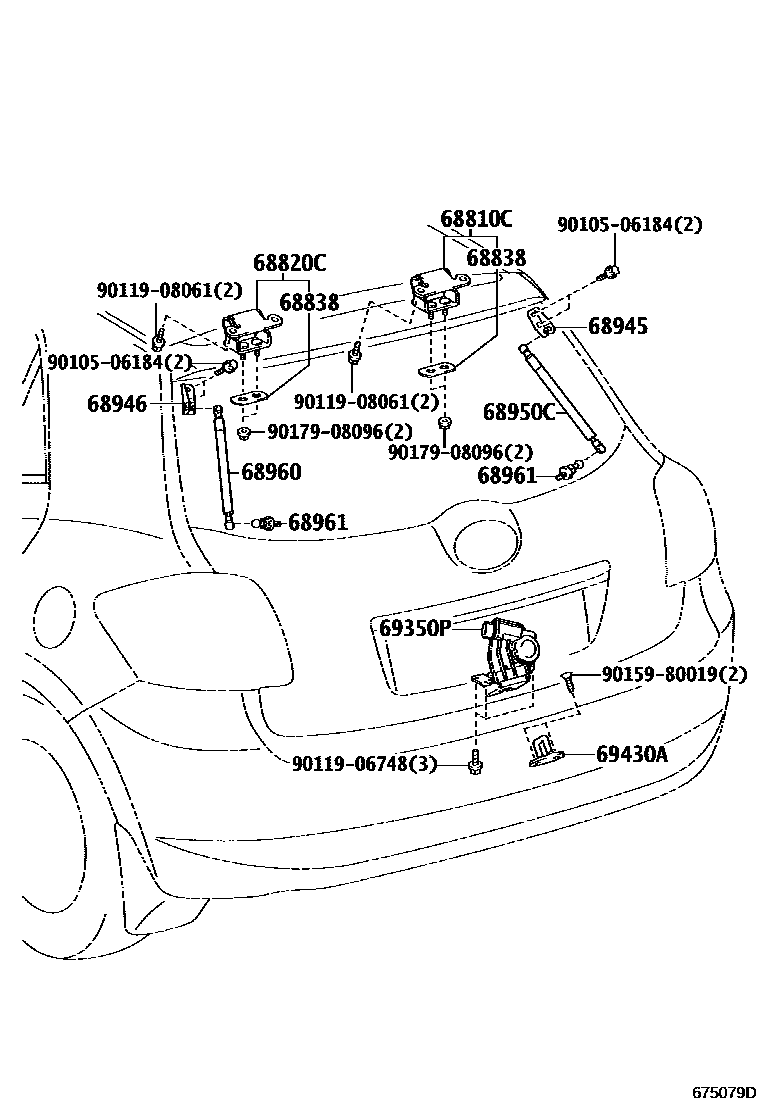

Toyota AURIS — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
9010506184
main90105-06184
9011906748
main90119-06748
9011908061
main90119-08061
9015980019
main90159-80019
9017908096
main90179-08096
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota AURIS
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota AURIS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
