Toyota AURIS — ARMREST & VISOR

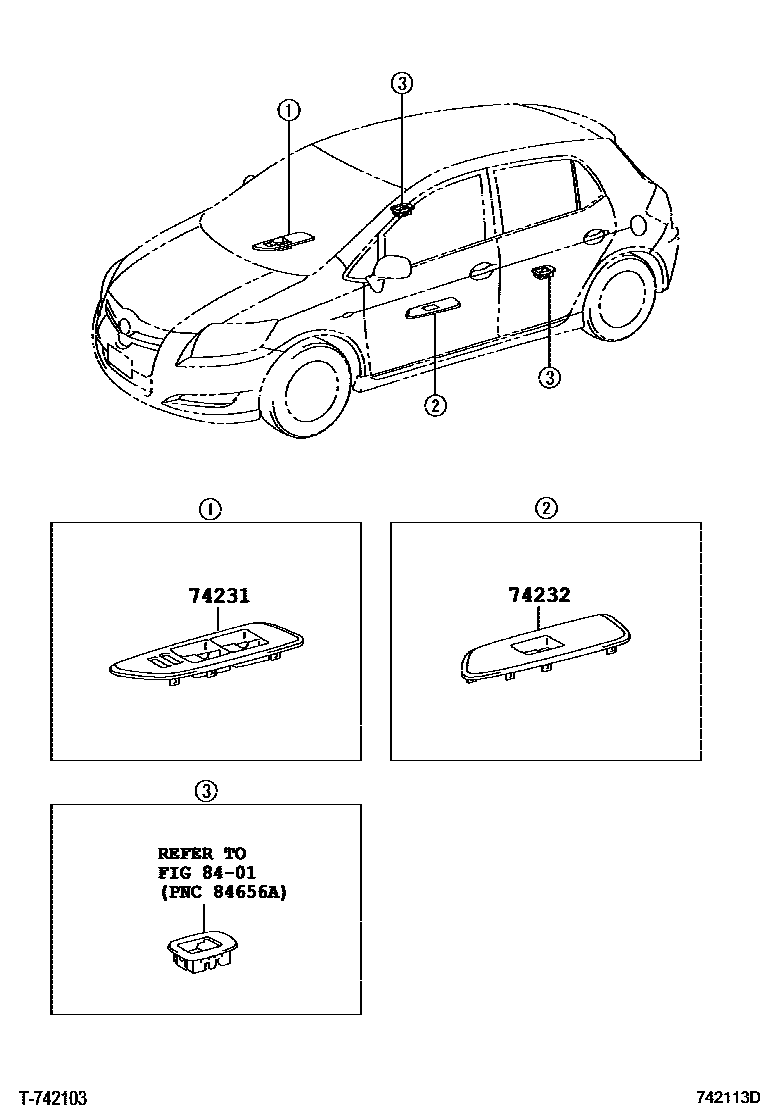

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12770-B0i200910-201208

DK.GRAY,TRIM1#

main74231-12770-E0i200910-201208

GREGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12570-B0i200910-201208

DK.GRAY,TRIM1#

main74232-12570-E0i200610-200812

GREGE,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota AURIS

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota AURIS. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, COVER, VISOR BRACKET, RH, COVER, VISOR BRACKET, LH.
