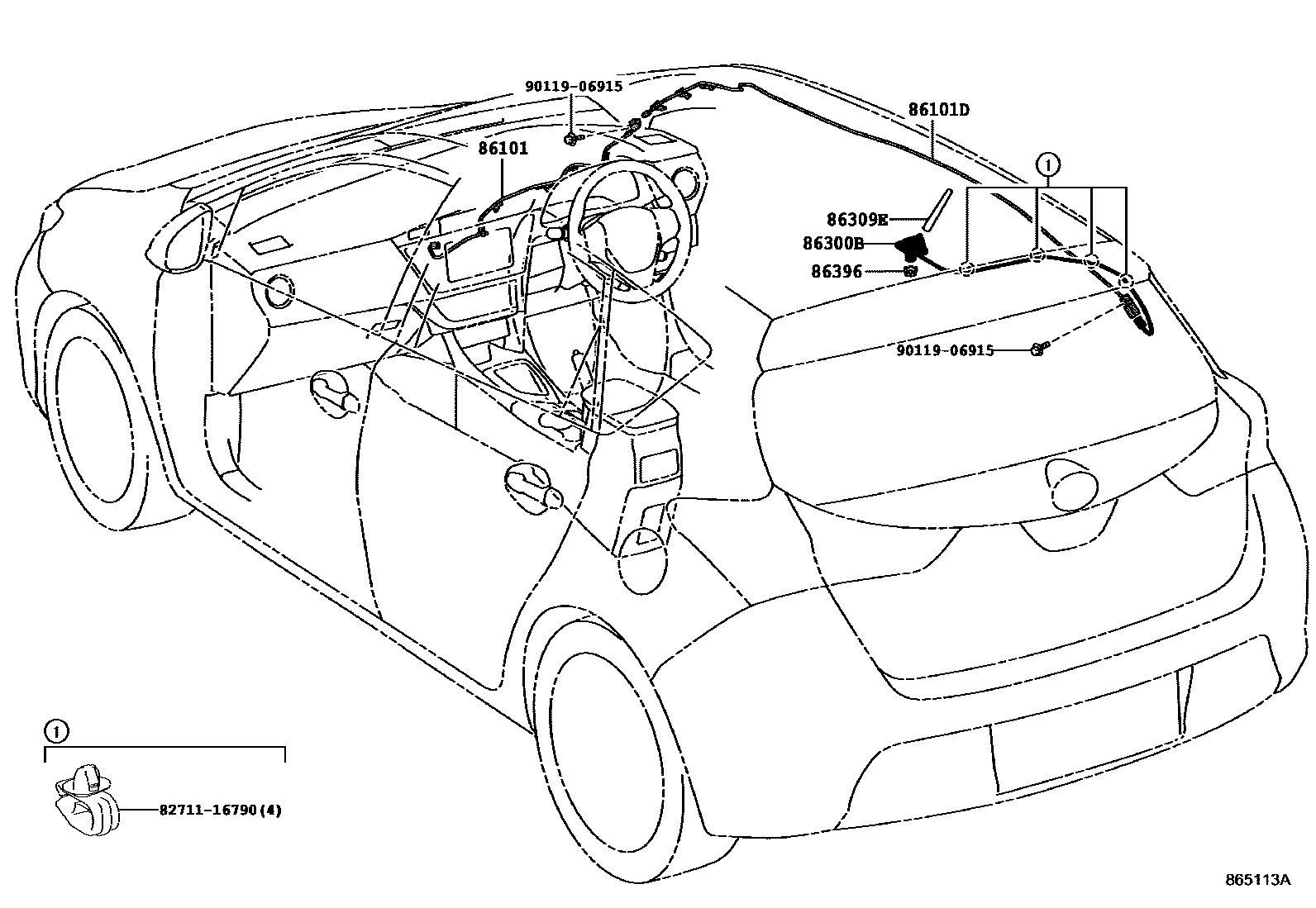

Toyota AURIS — ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86300BANTENNA ASSY, AMPLIFIER, NO.1
WHITE PEARL CS.,070
SILVER ME.,1F7
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
86309EPOLE SUB-ASSY, ROOF ANTENNA
86396NUT, ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906915
main90119-06915
7 parts on this diagram · 2 diagrams in section
ANTENNA for Toyota AURIS
This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota AURIS. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, ANTENNA ASSY, AMPLIFIER, NO.1, POLE SUB-ASSY, ROOF ANTENNA, NUT, ANTENNA.
