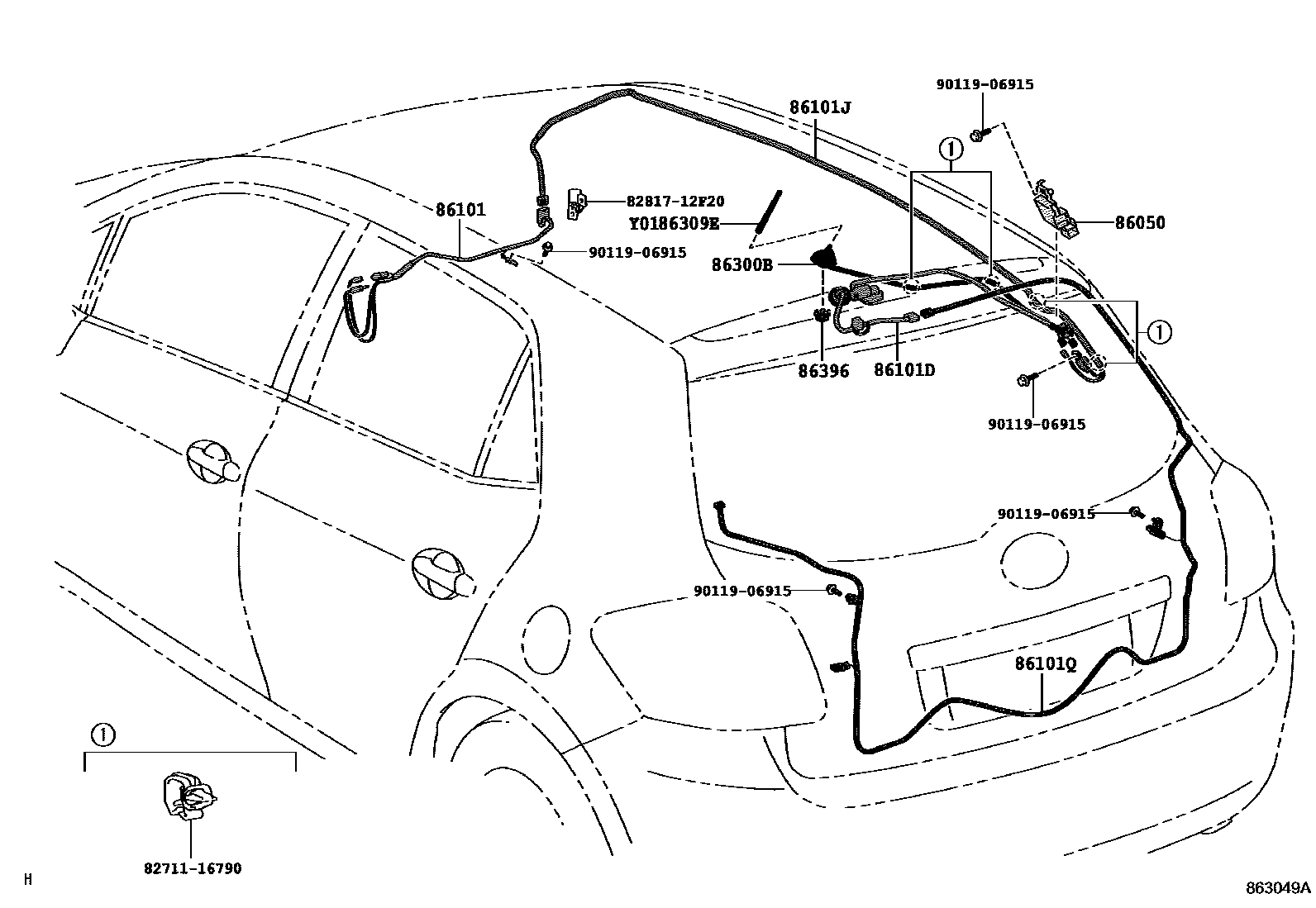

Toyota AURIS — ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-12040i200610-200812

86101CORD SUB-ASSY, ANTENNA

main86101-12490supersedes 86101-12460i200610-200812

main86101-12850supersedes 86101-12460i200910

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-12470i200812-200910

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12410i200910-201208

main86101-12440supersedes 86101-12410i200610-200812

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-12480i200610-200812

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12850i200610-200812

main86300-12A70i200910

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310i200610-200812

main86309-42070i200910

86396NUT, ANTENNA

main86396-20040i200610-200812

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8281712F20PROTECTOR, WIRING HARNESS, NO.1

main82817-12F20

9011906915

main90119-06915

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota AURIS

This section contains 11 genuine Toyota parts for the ANTENNA system of the Toyota AURIS. Key components include: ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.4.
