Toyota AURIS — ABS & VSC

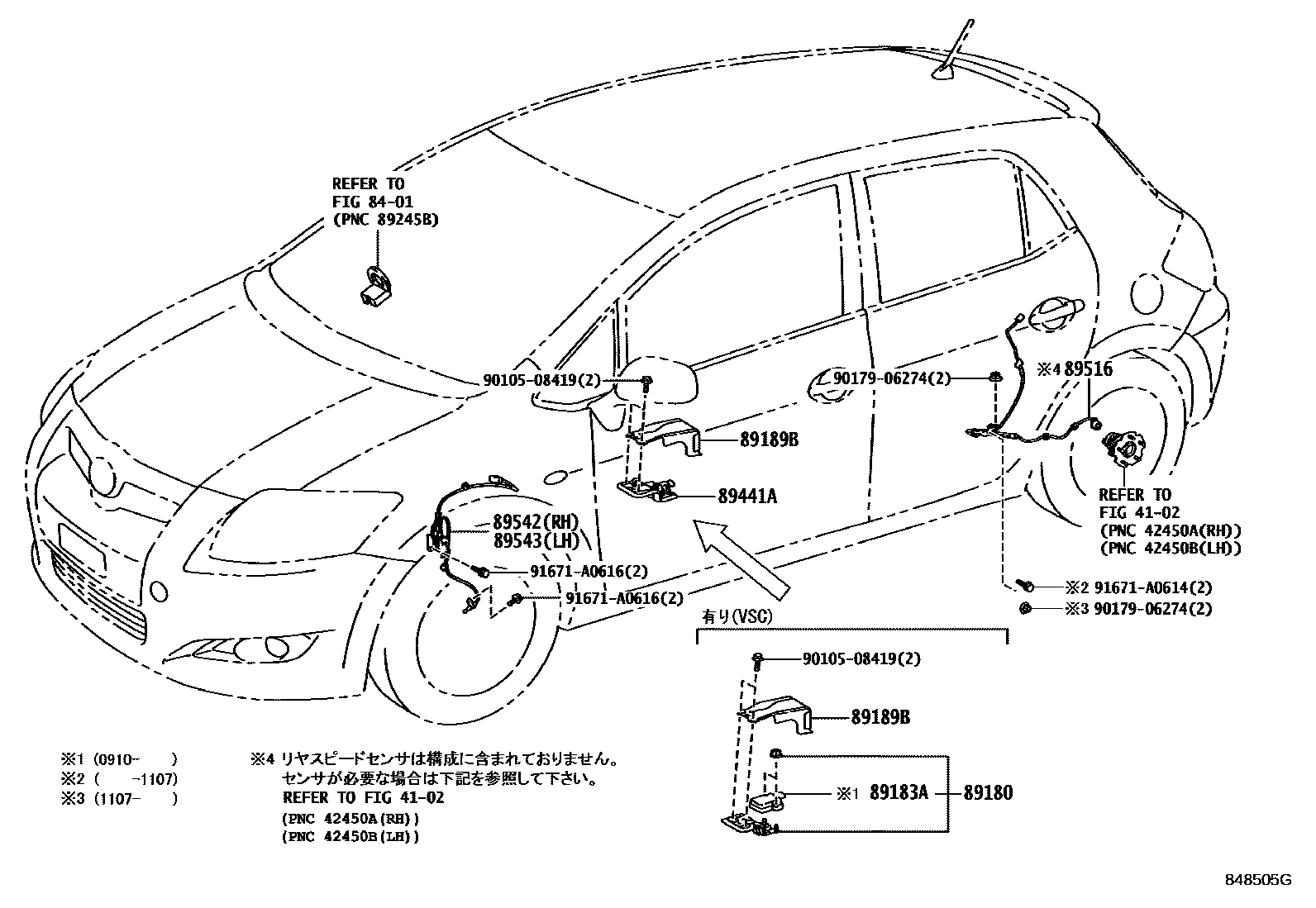

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89180SENSOR ASSY, YAWRATE

main89180-12061i200610-200703

main89180-12080i200812-200910

main89180-12140i200910

89183ASENSOR, YAWRATE

main89183-48030i200910

89189BBRACKET, YAWRATE SENSOR

main89189-12091i200610-200812

89441ASENSOR, DECELERATION

main89440-12100i200610-200812

89516WIRE, SKID CONTROL SENSOR

main89516-12051i200910-201107

main89516-12061i200610-200611

main89516-12070i201107-201208

main89516-12080i201107-201208

main89516-12180i200812-200909

main89516-12190i200812-200909

89542SENSOR, SPEED, FRONT RH

main89542-12080i200910-201208

89543SENSOR, SPEED, FRONT LH

main89543-12080i200610-200812

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

13 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota AURIS

This section contains 17 genuine Toyota parts for the ABS & VSC system of the Toyota AURIS. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, YAWRATE, SENSOR, YAWRATE, BRACKET, YAWRATE SENSOR.
