Toyota AURIS (UKP) — LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02230iZRE181201210-201505

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02500iZRE181201210-201505

69503CYLINDER SET, LOCK

main89704-02590iZRE181201210-201505

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02850iZRE181201210-201505

sub89070-02851

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-02830iZRE181201210-201505

89745ABATTERY, TRANSMITTER

main89745-0H010iZRE181201210-201505

CR2016

89751ACOVER, TRANSMITTER HOUSING

main89751-05020iZRE181201210-201505

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-02300iZRE181201210-201505

CUT KEY

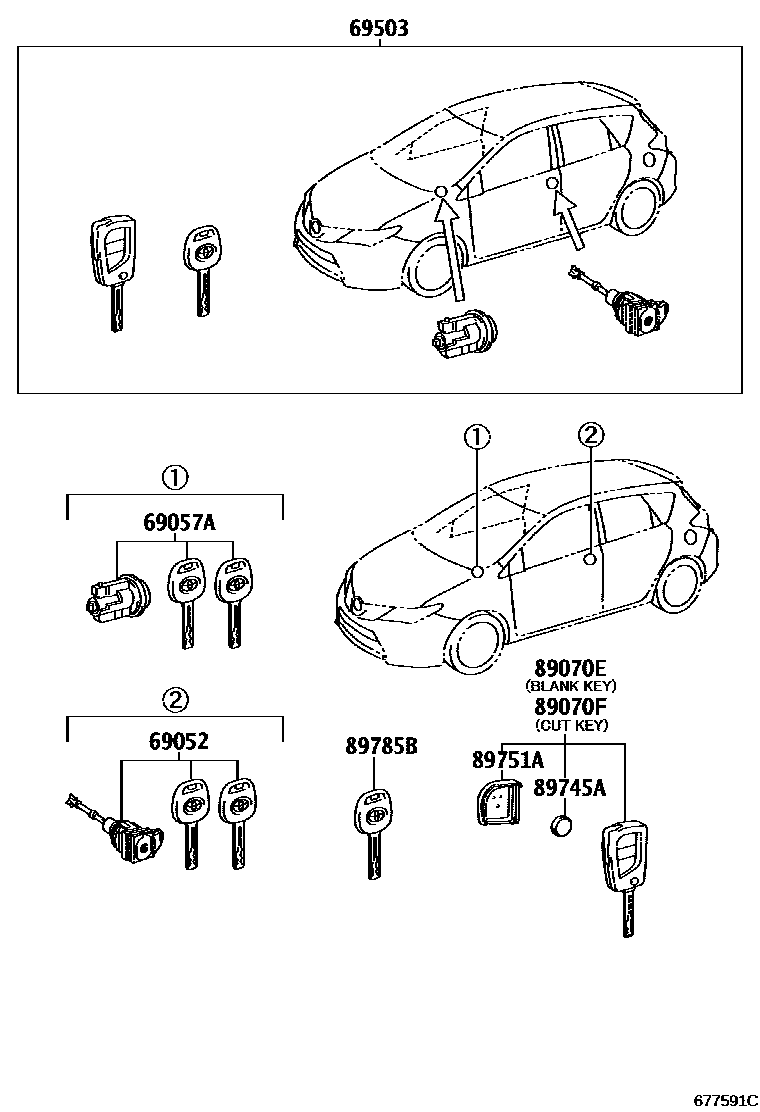

8 parts on this diagram · 1 diagram in section
