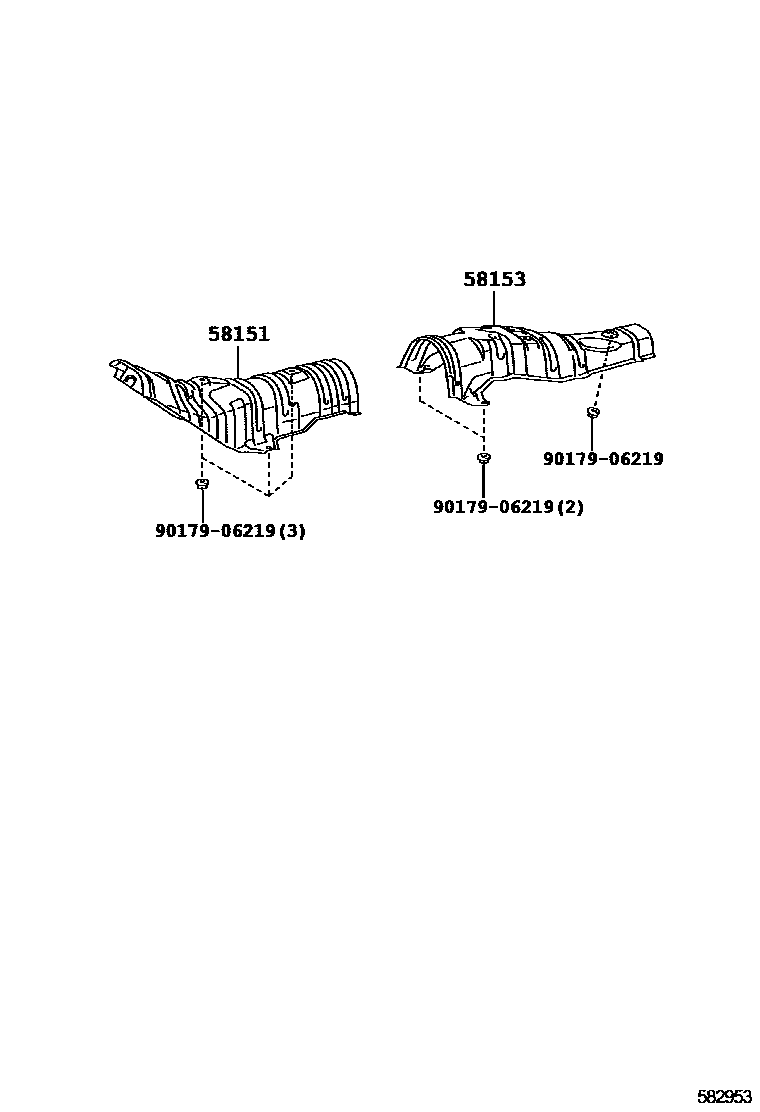

Toyota AURIS (UKP) — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02120iADE150,ZRE15#,ZZE150200706-200801

main58151-02121iZZE150200802-200811

main58151-02250iADE150,NRE150,ZRE152;ZRE151..(6F,6FS)..(RS,RT)200811-201001

sub58151-02251

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02120iADE150,ZRE15#,ZZE150200706-200806

main58153-02121iZZE150200807-200811

9017906219

main90179-06219

3 parts on this diagram · 1 diagram in section
