Toyota AURIS (UKP) — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-02360i201505

74411CARRIER, BATTERY

main74410-02150i201210-201505

74412ACARRIER, BATTERY, NO.2

main74412-02040i201210-201505

74417BRACKET, BATTERY CARRIER

main74401-02010i201505

74431TRAY, BATTERY

main74431-02160i201210-201505

74451BBOLT, BATTERY CLAMP

main74451-02140i201308-201407

main74451-30110i201210-201307

90182W0002

main90182-W0002

91671A0612

main91671-A0612

91673J0818

main91673-J0818

9 parts on this diagram · 1 diagram in section

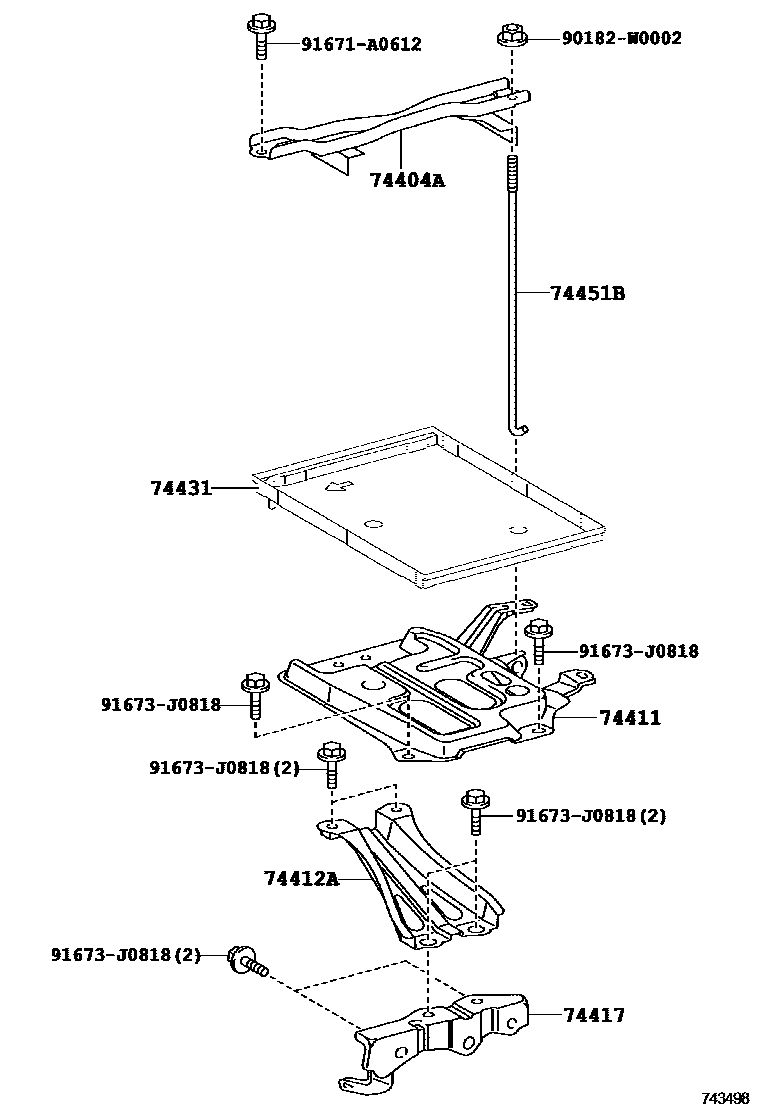

BATTERY CARRIER for Toyota AURIS (UKP)

This section contains 9 genuine Toyota parts for the BATTERY CARRIER system of the Toyota AURIS (UKP). Key components include: CLAMP SUB-ASSY, BATTERY, CARRIER, BATTERY, CARRIER, BATTERY, NO.2, BRACKET, BATTERY CARRIER, TRAY, BATTERY.
