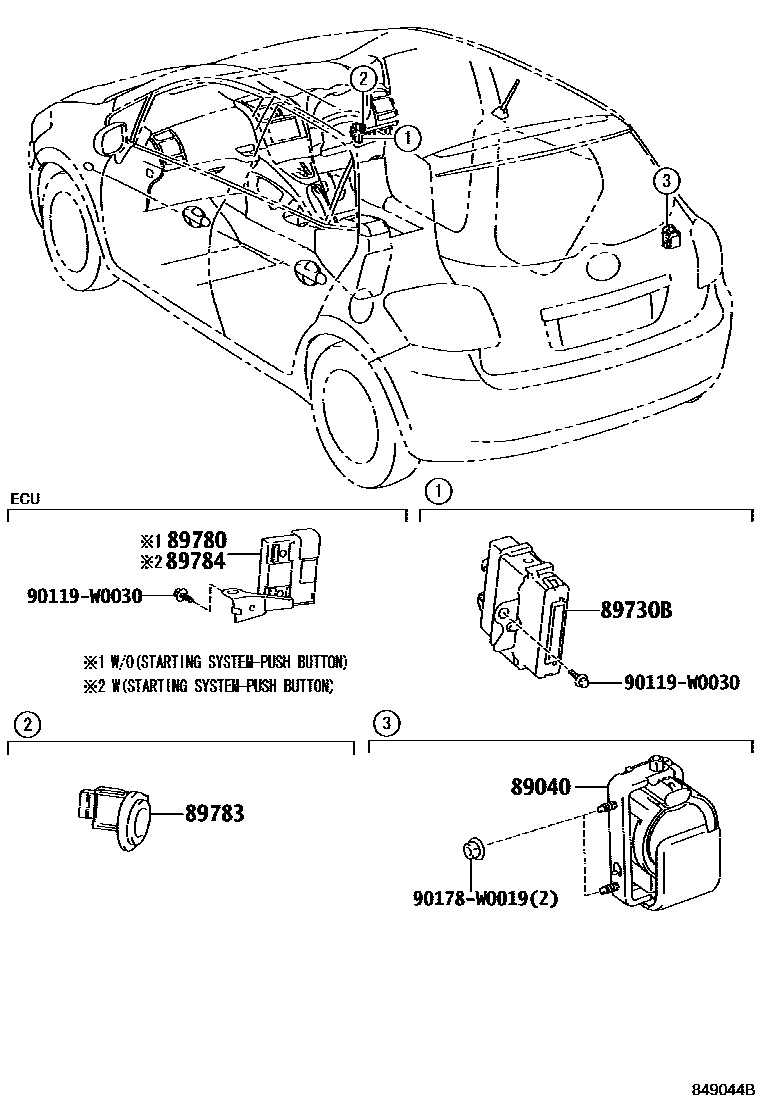

Toyota AURIS (UKP) — ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
89730BCOMPUTER ASSY, THEFT WARNING
89780COMPUTER ASSY, TRANSPONDER KEY
STARTING SYSTEM-PUSH BUTTON,P/N LABEL=8978002170
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
P/N LABEL=8978002170
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON,P/N LABEL=8978002170
P/N LABEL=8978002290
89783AMPLIFIER, TRANSPONDER KEY
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
P/N LABEL=8978302041
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON,P/N LABEL=8978302041
STARTING SYSTEM-PUSH BUTTON,P/N LABEL=8978302041
STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F010
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F010
P/N LABEL=897830F010
P/N LABEL=897830F011
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F011
STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F011
STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F012
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL & 2-TURN)&STARTING SYSTEM-PUSH BUTTON,P/N LABEL=897830F012
P/N LABEL=897830F012
90119W0030
main90119-W0030
90178W0019
main90178-W0019
7 parts on this diagram · 1 diagram in section
ANTI-THEFT DEVICE for Toyota AURIS (UKP)
This section contains 7 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota AURIS (UKP). Key components include: SIREN ASSY, THEFT WARNING, COMPUTER ASSY, THEFT WARNING, COMPUTER ASSY, TRANSPONDER KEY, AMPLIFIER, TRANSPONDER KEY, COMPUTER, IMMOBILIZER CODE.
