Toyota AURIS (UKP) — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-02120supersedes 89170-02550i200811-201001

main89170-02870i200912-201210

main89170-02110i200706-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02550i200706-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89170-0W290i200912-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09420i200706-200811

main89173-09630i200912-201210

89174ASENSOR, AIRBAG, FRONT LH

main89173-09420i200706-200811

main89173-09630i200912-201210

89833SENSOR, AIRBAG, REAR RH

main89831-02080i200706-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89831-0W060i200912-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89834SENSOR, AIRBAG, REAR LH

main89831-02080i200706-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89831-0W060i200912-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02060i200706-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02100i200912-201210

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02060i200706-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02100i200912-201210

90105W0093

main90105-W0093

90105W0095

main90105-W0095

90119W0073

main90119-W0073

90178W0019

main90178-W0019

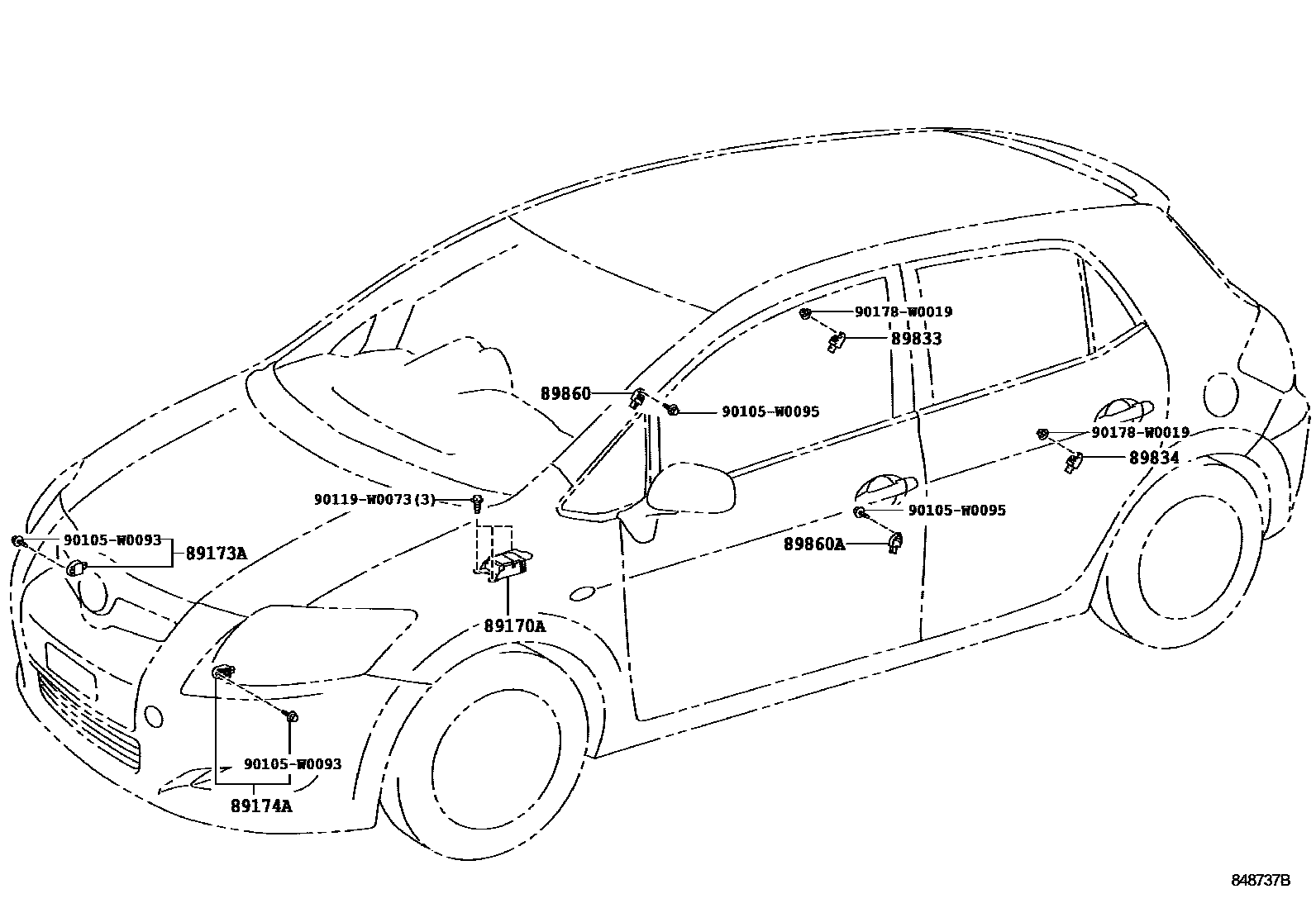

11 parts on this diagram · 1 diagram in section

AIR BAG for Toyota AURIS (UKP)

This section contains 11 genuine Toyota parts for the AIR BAG system of the Toyota AURIS (UKP). Key components include: COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR, AIRBAG, REAR RH, SENSOR, AIRBAG, REAR LH.
