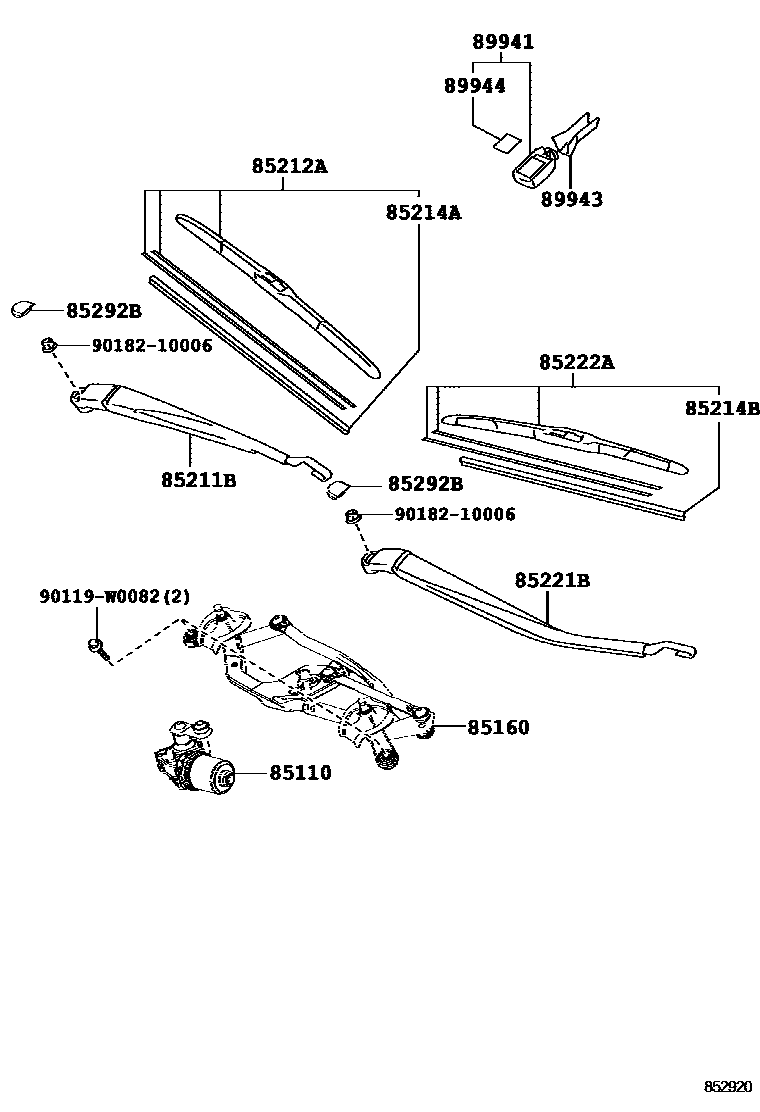

Toyota AURIS/HYBRID (UKP) — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02330iWWE185..RHD201210-201804

main85110-02340iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

85160LINK ASSY, WINDSHIELD WIPER

main85150-02290iWWE185..RHD201210-201804

main85150-02300iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

85211BARM, FRONT WIPER, RH

main85211-02290iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201804

main85211-02300iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

85212ABLADE, FR WIPER, RH

main85212-02250iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

main85212-02290iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201804

85214ARUBBER, WIPER, RH

main85214-02220iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201302

main85214-02260iWWE185..LHD201210-201804

main85214-02340iWWE185..RHD201303-201804

85214BRUBBER, WIPER, LH

main85214-02220iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201302

main85214-02260iWWE185..RHD201210-201804

main85214-02340iWWE185..LHD201303-201804

85221BARM, FRONT WIPER, LH

main85221-02300iNDE180,NRE18#,ZRE185,ZWE186..RHD201210-201804

main85221-02310iWWE185..LHD201210-201804

85222ABLADE, FR WIPER, LH

main85222-02260iNDE180,NRE18#,ZRE185,ZWE186..RHD201210-201804

main85222-02300iWWE185..LHD201210-201804

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201709

main85292-13010iNDE180,NRE18#,ZRE185,ZWE186201710-201804

89941SENSOR, RAIN

main89941-0D010iNDE180,NRE185,ZRE185,ZWE186..G201210-201804

COMFORT PACKAGE

main89941-0D010iZWE186..G201210-201505

HIGH GRADE

main89941-0D010iWWE185..G201505-201804

REFRIGERANT GAS TYPE=R-134A

main89941-0D010iWWE185..G201505-201804

LIGHT GRADE

main89941-0D010iNDE180,NRE185,ZRE185,ZWE186..G201505

RUSSIA SPEC

main89941-0D010iNDE180,NRE185,ZRE185,ZWE186..G201505

UKRAINE SPEC

89943COVER, RAIN SENSOR

main89943-02020iZWE186..G201210-201505

HIGH GRADE

main89943-02020iZWE186..G201210-201804

COMFORT PACKAGE

main89943-02020iWWE185..G201505-201804

REFRIGERANT GAS TYPE=R-134A

main89943-02020iWWE185..G201505-201804

LIGHT GRADE

main89943-02020iNDE180,NRE185,ZRE185,ZWE186..G201505

RUSSIA SPEC

main89943-02020iNDE180,NRE185,ZRE185,ZWE186..G201505

UKRAINE SPEC

89944TAPE, RAIN SENSOR

main89944-02010iZWE186..G201210-201505

HIGH GRADE

main89944-02010iZWE186..G201210-201804

COMFORT PACKAGE

main89944-02010iWWE185..G201505-201804

REFRIGERANT GAS TYPE=R-134A

main89944-02010iWWE185..G201505-201804

LIGHT GRADE

main89944-02010iNDE180,NRE185,ZRE185,ZWE186..G201505

RUSSIA SPEC

main89944-02010iNDE180,NRE185,ZRE185,ZWE186..G201505

UKRAINE SPEC

90119W0082

main90119-W0082

9018210006

main90182-10006

14 parts on this diagram · 2 diagrams in section
