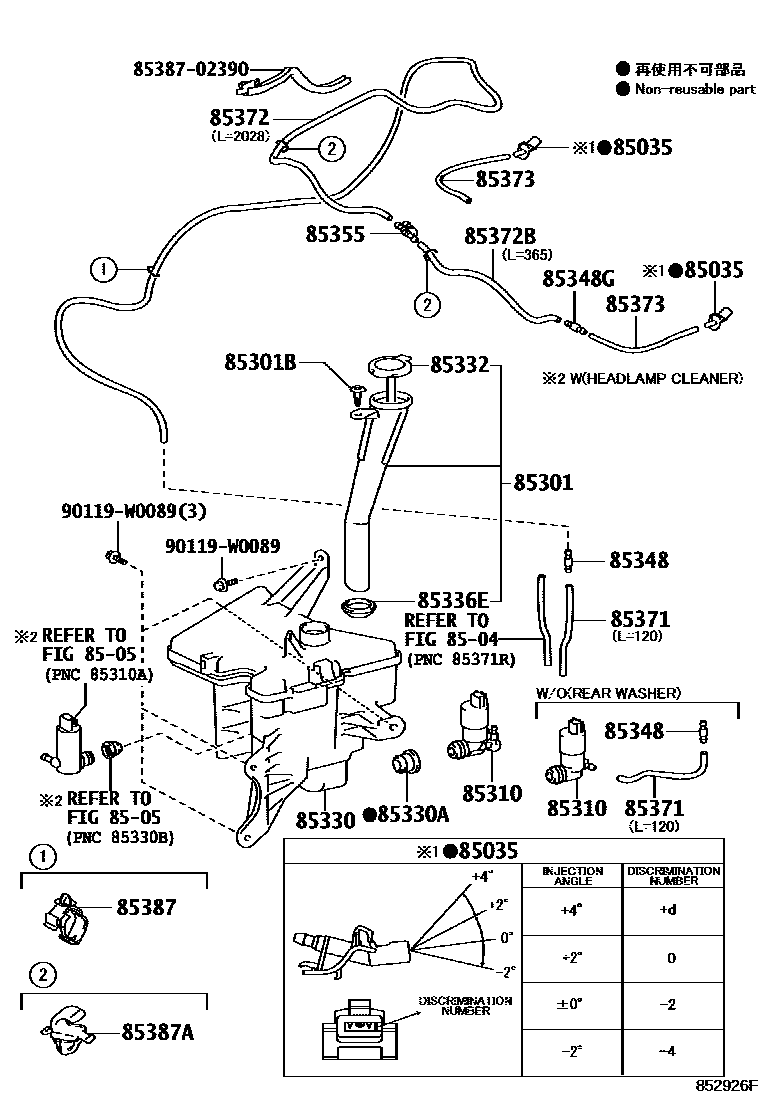

Toyota AURIS/HYBRID (UKP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400i201210-201804

ANGLE 0

main85381-12410i201210-201301

ANGLE -2

main85381-12420i201210-201804

ANGLE +2

sub85381-0K060

main85381-12430i201301-201804

ANGLE +4

8504

8505

85301INLET SUB-ASSY, WASHER

main85319-02490i201210-201804

85301BCLIP, WASHER

main90467-07076-C0i201210-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7i201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02050i201210-201804

85330JAR ASSY, WINDSHIELD WASHER

main85315-02490i201210-201804

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005i201210-201804

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010i201210-201804

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-38005i201210-201804

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i201210-201804

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-05050i201210-201804

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02240i201210-201804

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009i201210-201804

*318:REFER ILLUST.

main90069-16009i201210-201804

HEADLAMP CLEANER-WITH,*318:REFER ILLUST.

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010i201210-201804

*318:REFER ILLUST.

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009i201210-201804

*318:REFER ILLUST.

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62080i201210-201804

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350i201210-201804

85387ACLAMP, WASHER, NO.2

main85371-12040i201210-201804

8538702390CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-02390

90119W0089

main90119-W0089

21 parts on this diagram · 1 diagram in section
