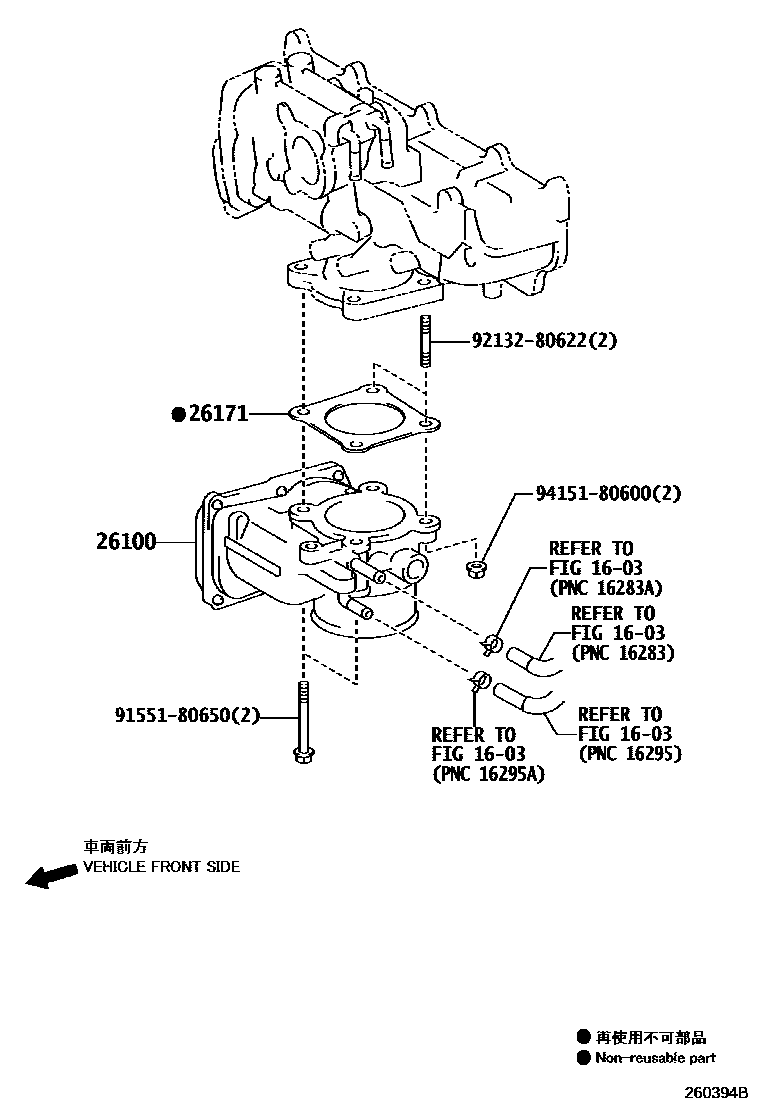

Toyota AURIS/HYBRID (UKP) — VENTURI

0001 1 0002 1 0003 1

1603

26100VENTURI ASSY

main26100-0R020i1ADFTV..ADE186201210

26171GASKET, VENTURI

main26171-0R010i1ADFTV..ADE186201210

main26171-33030i1NDTV..NDE180201210-201505

9155180650

main91551-80650

9213280622

main92132-80622

9415180600

main94151-80600

6 parts on this diagram · 3 diagrams in section
