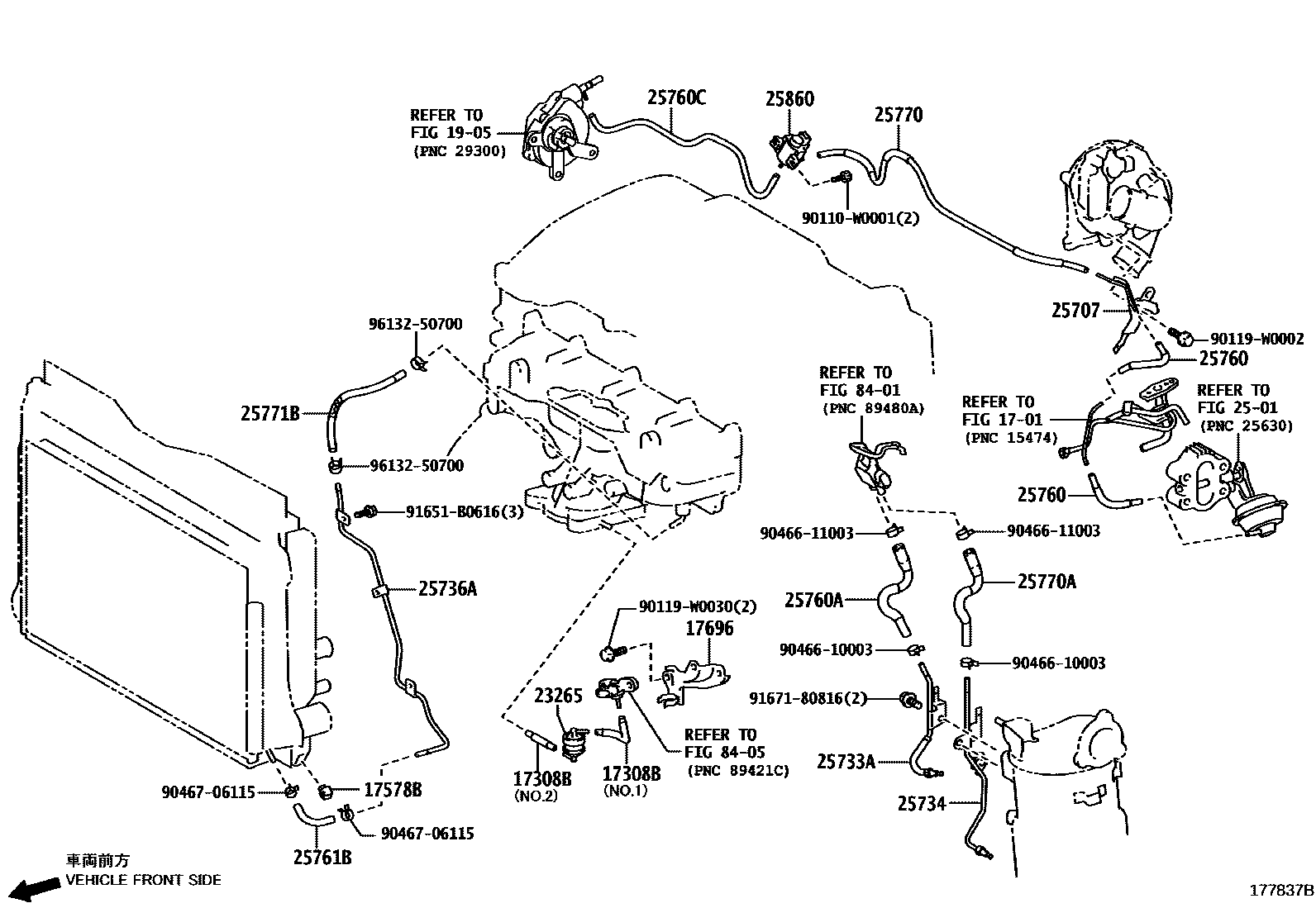

Toyota AURIS/HYBRID (UKP) — VACUUM PIPING
1701
17308BHOSE SUB-ASSY, VACUUM
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17578BCLAMP, PIPE
17696BRACKET, GAS FILTER
1905
23265FILTER, GAS, NO.1
2501
25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25733APIPE, VACUUM, NO.1
25734PIPE, VACUUM, NO.2
25736APIPE, VACUUM TRANSMITTING, NO.1
25760HOSE ASSY, VACUUM TRANSMITTING
25760AHOSE ASSY, VACUUM TRANSMITTING
25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3
25761BHOSE, VACCUM TRANSMITTING, NO.1
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2
25771BHOSE, VACCUM TRANSMITTING, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
8401
8405
90110W0001
main90110-W0001
90119W0002
main90119-W0002
90119W0030
main90119-W0030
9046610003
main90466-10003
9046611003
main90466-11003
9046706115
main90467-06115
91651B0616
main91651-B0616
9167180816
main91671-80816
9613250700
main96132-50700
30 parts on this diagram · 9 diagrams in section
