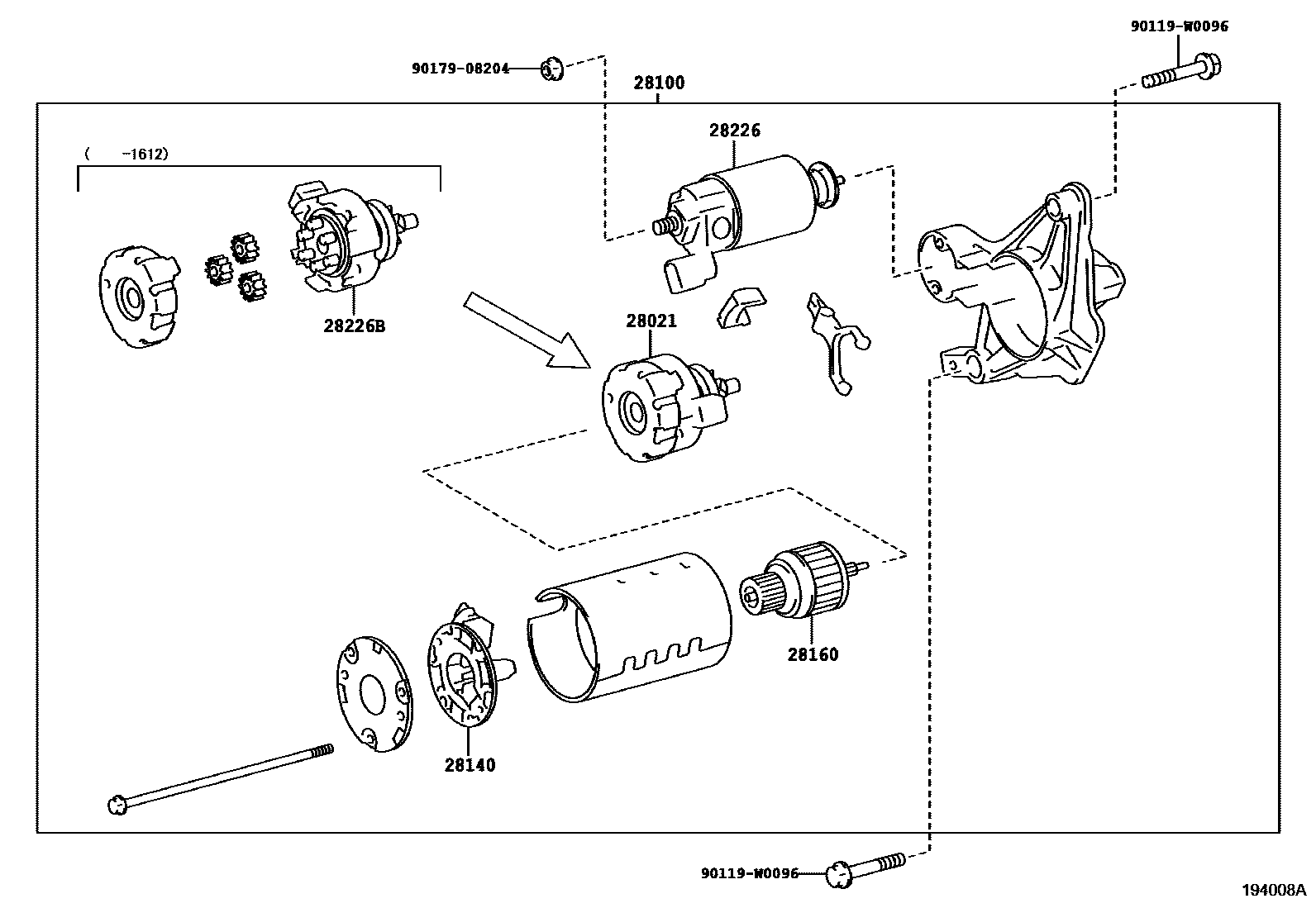

Toyota AURIS/HYBRID (UKP) — STARTER

0001 112V 1.0KW,1.2KW 0002 112V 1.6KW 0003 112V 1.1KW 0005 112V 1.6KW 0006 112V 1.7W,2.0KW 0007 112V 1.9KW 0008 112V 1.7KW 0009 112V 1.7KW 0010 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0N120i1NDTV..NDE180..RHD..6F201210-201405

main28021-21100i8NRFTS..NRE185..6F201505

START & STOP SYSTEM PACKAGE

main28021-26190i1ADFTV..ADE186201210-201505

main28021-33090i1NDTV..NDE180..LHD;1NDTV..NDE180..RHD..6FS201210-201505

main28021-47110i1NRFE..NRE180..RHD201210-201405

main28021-47170i1NRFE..NRE180201612

28100STARTER ASSY

main28100-0N040i1NDTV..NDE180..LHD;1NDTV..NDE180..RHD..6FS201210-201505

12V 1.6KW

main28100-0N120i1NDTV..NDE180..RHD..6F201210-201405

12V 1.7KW

sub28100-0N121

main28100-0R060i1ADFTV..ADE186201210-201409

12V 1.9KW

sub28100-0R061

main28100-0R061i1ADFTV..ADE186201410-201505

12V 1.9KW

main28100-0T030i1ZRFAE..ZRE185;8NRFTS..NRE185..6F201210-201505

12V 1.1KW

main28100-0X040i1WW..WWE185201505-201804

12V 2.0KW

main28100-0Y090i1NRFE..NRE180..LHD201210-201409

12V 1.0KW

sub28100-0Y091

main28100-0Y091i1NRFE..NRE180201410-201505

12V 1.0KW

sub28100-0Y290

main28100-0Y180i1NRFE..NRE180..RHD201210-201405

12V 1.6KW

main28100-0Y230i8NRFTS..NRE185..CVT201505

12V 1.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0D130i1ZRFAE..ZRE185;8NRFTS..NRE185..6F201210-201505

main28140-0N120i1NDTV..NDE180..RHD..6F201210-201405

main28140-0X040i1WW..WWE185201505-201804

main28140-21070i1NRFE..NRE180..LHD201210-201505

main28140-21100i1NDTV..NDE180..LHD201505

START & STOP SYSTEM PACKAGE&COLD AREA SPEC

main28140-21100i8NRFTS..NRE185..CVT201505

START & STOP SYSTEM PACKAGE

main28140-21100i8NRFTS..NRE185..CVT201505

START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC

main28140-37050i1NDTV..NDE180201210-201505

main28140-47110i1NRFE..NRE180..RHD201210-201405

28160ARMATURE ASSY, STARTER

main28160-0D130i1ZRFAE..ZRE185201210-201505

main28160-0X040i1WW..WWE185201505-201804

main28160-21070i1NRFE..NRE180..RHD201210-201505

main28160-26190i1ADFTV..ADE186201210-201505

main28160-33090i1NDTV..NDE180201210-201505

main28160-38070i8NRFTS..NRE185..CVT201505-201801

START & STOP SYSTEM PACKAGE

main28160-38070i1NDTV..NDE180..RHD..6F201210-201405

main28160-38070i8NRFTS..NRE185..CVT201505-201801

START & STOP SYSTEM PACKAGE&COLD AREA SPEC

main28160-38070i8NRFTS..NRE185..CVT201505-201801

START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC

main28160-38080i1NDTV..NDE180201801

START & STOP SYSTEM PACKAGE&SUB COLD AREA SPEC

sub28160-36110

main28160-38080i8NRFTS..NRE185..CVT201801

START & STOP SYSTEM PACKAGE

sub28160-36110

main28160-38080i8NRFTS..NRE185..CVT201801

START & STOP SYSTEM PACKAGE&COLD AREA SPEC

sub28160-36110

main28180-47110i1NRFE..NRE180..RHD201210-201405

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i1NRFE..NRE180..LHD201210-201410

sub28226-21081

main28226-21081i1NRFE..NRE180201410-201505

28226BSTARTER KIT, REPAIR SERVICE

main28226-0X040i1WW..WWE185201505-201804

main28226-47170i1NRFE..NRE180..LHD201210-201612

main28226-47190i1NRFE..NRE180..RHD201210-201405

90119W0096

main90119-W0096

9017908204

main90179-08204

8 parts on this diagram · 9 diagrams in section
