Toyota AURIS/HYBRID (UKP) — SIDE MOULDING

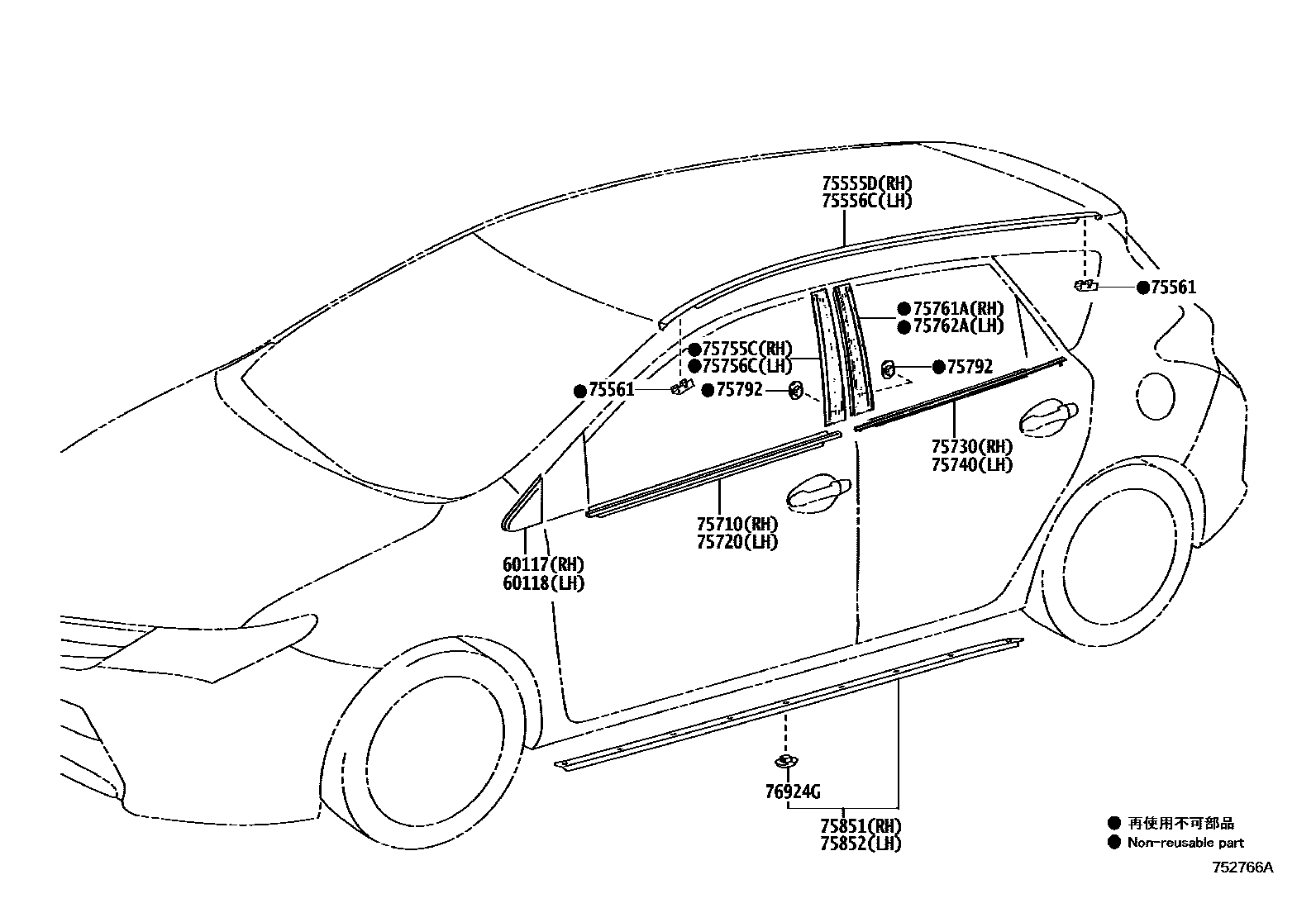

Parts diagram
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-02110i201210-201804
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-02110i201210-201804
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-02080i201210-201505
main75555-02080i201505-201804
LIGHT GRADE
main75555-02190i201505-201804
ROOF RAIL-WITH(BLACK)
main75555-02190i201505-201804
ROOF RAIL-WITH(SILVER)
main75555-02190i201306-201505
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75555-02080i201505-201804
LIGHT GRADE
main75555-02080i201210-201505
main75555-02190i201505-201804
ROOF RAIL-WITH(SILVER)
main75555-02190i201505-201804
ROOF RAIL-WITH(BLACK)
main75555-02190i201306-201505
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-33030i201505-201804
ROOF RAIL-WITH(BLACK)
main75561-33030i201210-201505
main75561-33030i201505-201804
LIGHT GRADE
main75561-33030i201505-201804
ROOF RAIL-WITH(SILVER)
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-02290i201505-201804
main75710-02290i201210-201505
LIGHT GRADE
main75710-12A10i201210-201804
DOOR BELT MOULDING-WITH(PLATING)
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-02290i201505-201804
main75720-02290i201210-201505
LIGHT GRADE
main75720-12890i201210-201804
DOOR BELT MOULDING-WITH(PLATING)
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-02270i201505-201804
main75730-02270i201210-201505
LIGHT GRADE
main75730-12400i201210-201804
DOOR BELT MOULDING-WITH(PLATING)
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-02270i201210-201505
LIGHT GRADE
main75740-02270i201505-201804
main75740-12490i201210-201804
DOOR BELT MOULDING-WITH(PLATING)
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-02010i201210-201505
LIGHT GRADE
main75755-02020i201210-201505
SPORT PACKAGE
sub75755-02030
main75755-02020i201210-201505
SPORT PACKAGE&DOOR BELT MOULDING-WITH(PLATING)
sub75755-02030
main75755-02020i201210-201505
DOOR BELT MOULDING-WITH(PLATING)
sub75755-02030
main75755-02020i201505-201509
sub75755-02030
main75755-02030i201510-201804
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-02010i201210-201505
LIGHT GRADE
main75756-02020i201210-201505
SPORT PACKAGE
sub75756-02100
main75756-02020i201210-201505
SPORT PACKAGE&DOOR BELT MOULDING-WITH(PLATING)
sub75756-02100
main75756-02020i201210-201505
DOOR BELT MOULDING-WITH(PLATING)
sub75756-02100
main75756-02020i201505-201509
sub75756-02100
main75756-02100i201510-201804
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-02010i201210-201505
NO PAINT REQ.
main75761-02010i201210-201505
NO PAINT REQ.,LIGHT GRADE
main75761-02020i201210-201509
NO PAINT REQ.
sub75761-02110
main75761-02020i201210-201505
NO PAINT REQ.,SPORT PACKAGE
sub75761-02110
main75761-02020i201210-201505
NO PAINT REQ.,SPORT PACKAGE&DOOR BELT MOULDING-WITH(PLATING)
sub75761-02110
main75761-02020i201210-201505
NO PAINT REQ.,DOOR BELT MOULDING-WITH(PLATING)
sub75761-02110
main75761-02110i201510-201804
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-02010i201210-201505
NO PAINT REQ.
main75762-02010i201210-201505
NO PAINT REQ.,LIGHT GRADE
main75762-02020i201210-201509
NO PAINT REQ.
sub75762-02110
main75762-02020i201210-201505
NO PAINT REQ.,SPORT PACKAGE
sub75762-02110
main75762-02020i201210-201505
NO PAINT REQ.,SPORT PACKAGE&DOOR BELT MOULDING-WITH(PLATING)
sub75762-02110
main75762-02020i201210-201505
NO PAINT REQ.,DOOR BELT MOULDING-WITH(PLATING)
sub75762-02110
main75762-02110i201510-201804
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-47010i201210-201804
75851MOULDING, ROCKER PANEL, RH
main75851-02081i201210-201804
75852MOULDING, ROCKER PANEL, LH
main75852-02081i201210-201804
76924GRETAINER, ROCKER PANEL MOULDING
main76924-12030i201210-201804

17 parts on this diagram · 2 diagrams in section
