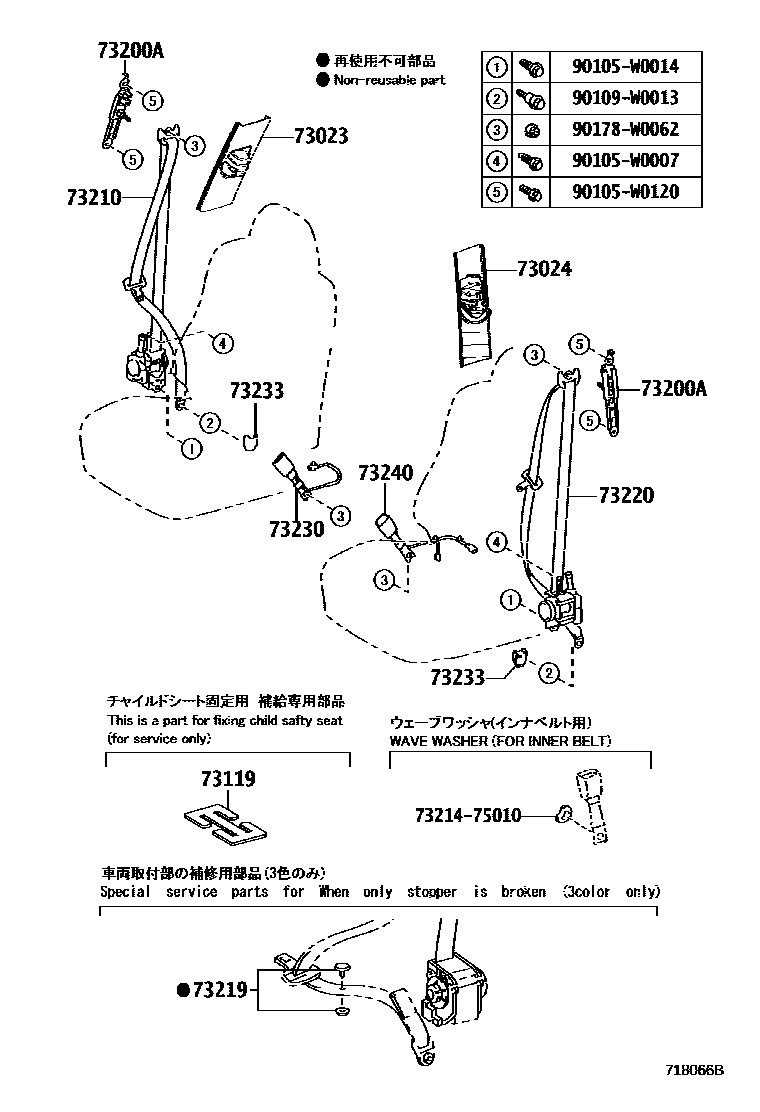

Toyota AURIS/HYBRID (UKP) — SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02040-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201210-201505

LT.GRAY,TRIM2#

main73023-02040-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

LT.GRAY,TRIM2#,4#

main73023-02040-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..D,N201210-201505

LT.GRAY,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02040-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201210-201505

LT.GRAY,TRIM2#

main73024-02040-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

LT.GRAY,TRIM2#,4#

main73024-02040-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..D,N201210-201505

LT.GRAY,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100iWWE185201210-201804

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02460-C2iZWE186..G201210-201505

BLACK,TRIM1#,2#

main73210-02460-C2iZWE186..G201210-201607

BLACK,TRIM2#

main73210-02460-C2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201505-201607

BLACK,TRIM2#,4#

main73210-02650-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201607

BLACK,TRIM2#,4#

main73210-02650-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201607

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iWWE185201210-201804

BLACK

main73219-33020iWWE185201210-201804

GRAY

main73219-33030iNDE180,NRE18#,ZRE185,ZWE186201210-201804

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02450-C2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201210-201607

BLACK,TRIM2#

main73220-02450-C2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201505-201607

BLACK,TRIM2#,4#

main73220-02450-C2iZWE186..G201210-201505

BLACK,TRIM1#,2#

main73220-02610-C0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201607

BLACK,TRIM2#,4#

main73220-02610-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201607

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02490-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201210-201607

BLACK,TRIM2#

main73230-02490-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201505-201607

BLACK,TRIM2#,4#

main73230-02490-C0iNDE180,NRE180,ZRE185,ZWE186..RHD..(D,N)201210-201505

BLACK,TRIM1#,2#

main73230-02550-C0iNDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..G201210-201607

BLACK,TRIM2#

main73230-02550-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

BLACK,TRIM1#,2#

main73230-02550-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201505-201607

BLACK,TRIM2#,4#

main73230-02710-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201607

BLACK,TRIM2#

main73230-02710-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201607

BLACK,TRIM2#,4#

main73230-02720-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201607

BLACK,TRIM2#

main73230-02720-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201607

BLACK,TRIM2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201210-201505

BLACK,TRIM2#

main73233-02040-C0iZWE186..G201210-201505

BLACK,TRIM1#,2#

main73233-02040-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S201505

BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02490-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201210-201607

BLACK,TRIM2#

main73230-02490-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201505-201607

BLACK,TRIM2#,4#

main73230-02490-C0iZWE186..LHD..G201210-201505

BLACK,TRIM1#,2#

main73230-02550-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201210-201607

BLACK,TRIM2#

main73230-02550-C0iNDE180,NRE180,ZRE185,ZWE186..RHD..(D,N)201210-201505

BLACK,TRIM1#,2#

main73230-02550-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201505-201607

BLACK,TRIM2#,4#

main73230-02710-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201607

BLACK,TRIM2#

main73230-02710-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201607

BLACK,TRIM2#,4#

main73230-02720-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201607

BLACK,TRIM2#

main73230-02720-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201607

BLACK,TRIM2#,4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90109W0013

main90109-W0013

90178W0062

main90178-W0062

16 parts on this diagram · 2 diagrams in section
