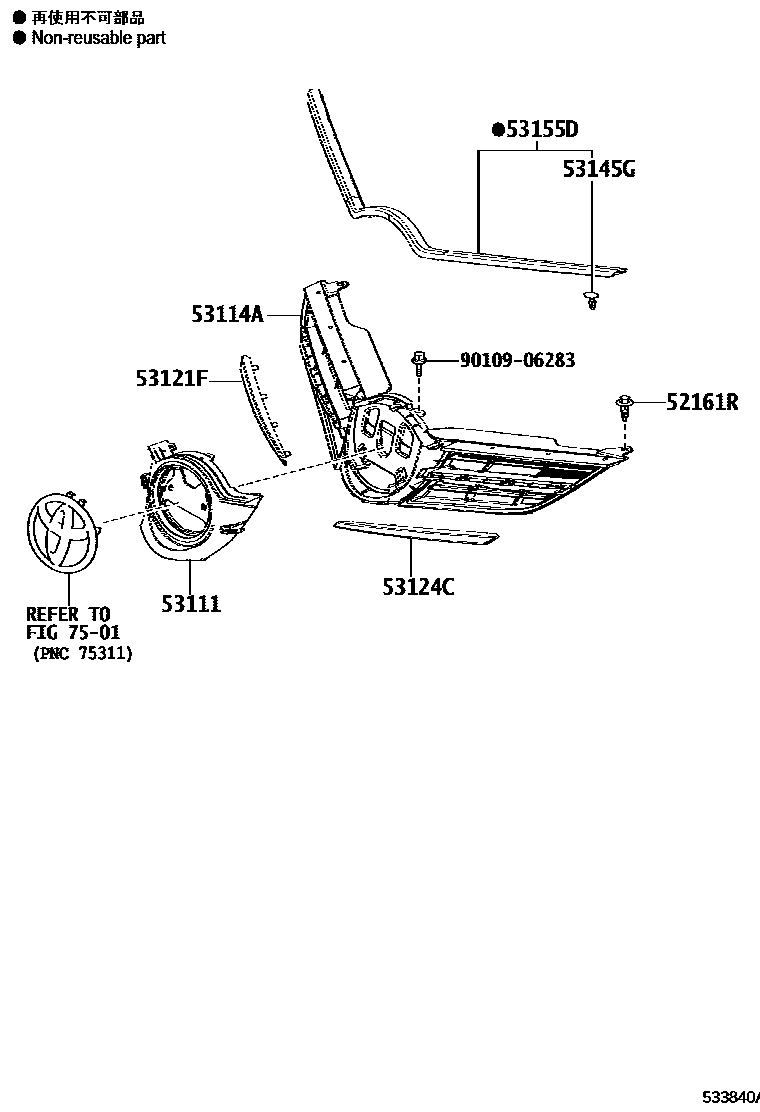

Toyota AURIS/HYBRID (UKP) — RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-02030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

(L)

main52161-16010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

(J)

sub52161-0K040

53111GRILLE, RADIATOR

main53111-02914iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

PAINT REQ.

main53111-02A50iWWE185201505-201804

PLATED

53114AGRILLE, RADIATOR, INNER

main53114-02260iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53114-02380iWWE185201505-201804

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02150iADE186,NDE180,NRE180,ZRE185,ZWE186..G,N201210-201505

main53121-02901iNDE180,NRE180,ZRE185..D201210-201505

LIGHT GRADE

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02140iADE186,NDE180,NRE180,ZRE185,ZWE186..G,N201210-201505

main53124-02901iNDE180,NRE180,ZRE185..D201210-201505

LIGHT GRADE

53145GCLIP, RADIATOR GRILLE

main53145-60030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

53155DSEAL, RADIATOR GRILLE, NO.1

main53037-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53037-02020iWWE185201505-201804

7501

9010906283

main90109-06283

9 parts on this diagram · 2 diagrams in section
