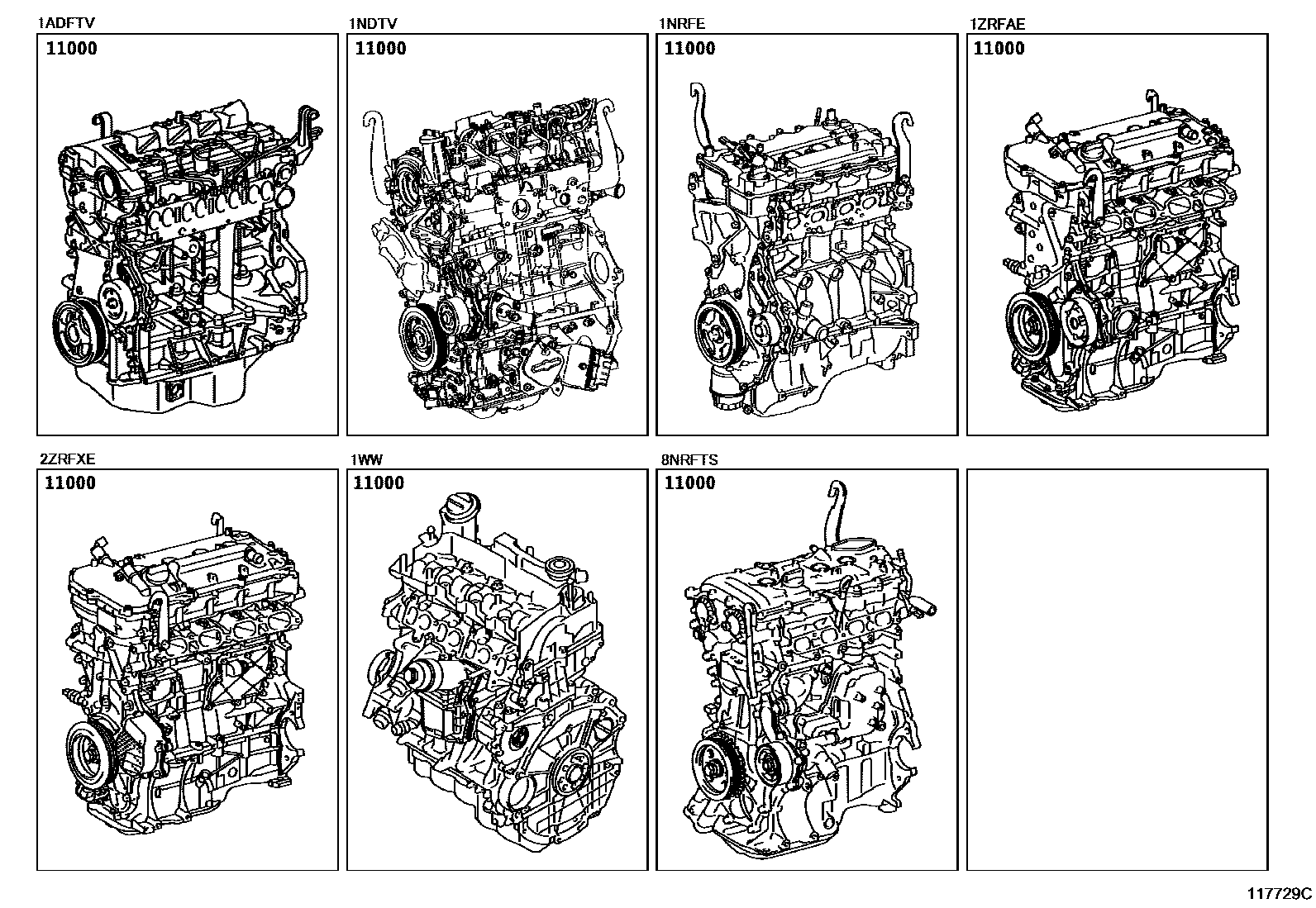

Toyota AURIS/HYBRID (UKP) — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0N070i1NDTV..NDE180..LHD;1NDTV..NDE180..RHD..6FS201210-201405

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

sub19000-0N071

main19000-0N071i1NDTV..NDE180201405-201505

main19000-0N080i1NDTV..NDE180..LHD..6F201210-201405

START & STOP SYSTEM PACKAGE

sub19000-0N081

main19000-0N110i1NDTV..NDE180201505

main19000-0R210i1ADFTV..ADE186201210-201505

main19000-0T070i1ZRFAE..ZRE185201210-201505

sub19000-0T072

main19000-0T072i1ZRFAE..ZRE185201505

main19000-0T160i2ZRFXE..ZWE186201210-201505

sub19000-0T162

main19000-0T162i2ZRFXE..ZWE186201505

sub19000-37472

main19000-47170i1NRFE..NRE180..RHD201210-201301

START & STOP SYSTEM PACKAGE

sub19000-47171

main19000-47171i1NRFE..NRE180..LHD201301-201309

START & STOP SYSTEM PACKAGE

main19000-47180i1NRFE..NRE180..LHD201210-201301

sub19000-47181

main19000-47181i1NRFE..NRE180..LHD201301-201309

main19000-47320i1NRFE..NRE180..RHD201309-201405

main19000-47340i1NRFE..NRE180..RHD201309-201505

main19000-47460i8NRFTS..NRE185201505-201805

main19000-47470i8NRFTS..NRE185201805

main19000-WA020i1WW..WWE185201505-201804

1 parts on this diagram · 1 diagram in section
