Toyota AURIS/HYBRID (UKP) — METER

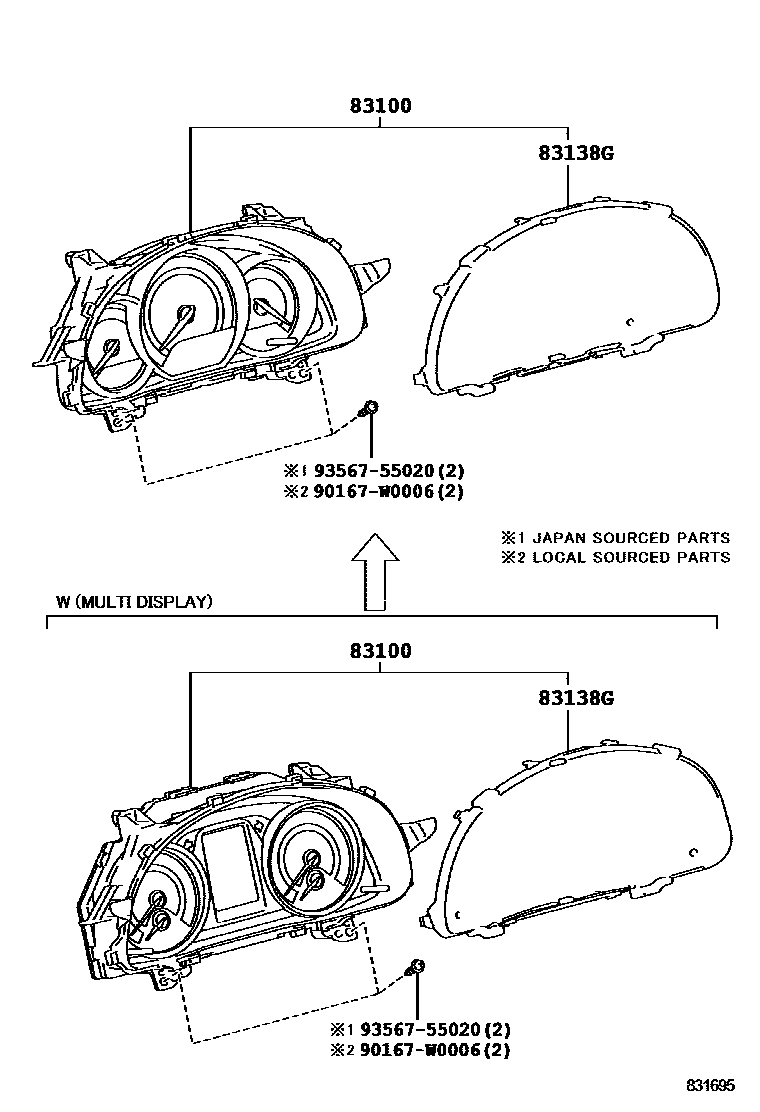

83100METER ASSY, COMBINATION

main83800-0Z250i201210-201404

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0Z251

main83800-0Z250i201210-201404

LIGHT GRADE&START & STOP SYSTEM PACKAGE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0Z251

main83800-0Z250i201210-201404

SPEEDOMETER-KM/H

sub83800-0Z251

main83800-0Z251i201405-201505

SPEEDOMETER-KM/H

main83800-0Z251i201405-201505

LIGHT GRADE&START & STOP SYSTEM PACKAGE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0Z251i201405-201505

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0Z260i201210-201404

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0Z261

main83800-0Z261i201405-201505

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0ZU10i201210-201404

SPEEDOMETER-KM/H

sub83800-0ZU11

main83800-0ZU11i201405-201505

FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H

main83800-0ZU11i201405-201505

FRONT FOG LAMP-WITH

main83800-0ZU11i201405-201505

SPEEDOMETER-KM/H

main83800-0ZU20i201210-201404

SPEEDOMETER-KM/H

sub83800-0ZU21

main83800-0ZU21i201405-201505

SPEEDOMETER-KM/H

main83800-0ZU21i201405-201505

FRONT FOG LAMP-WITH

main83800-0ZU30i201210-201404

LIGHT GRADE&SPEEDOMETER-MPH(MAIN) & KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0ZU31

main83800-0ZU31i201405-201505

LIGHT GRADE&SPEEDOMETER-MPH(MAIN) & KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0ZU50i201210-201404

sub83800-0ZU51

main83800-0ZU51i201405-201505

FRONT FOG LAMP-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83800-0ZU60i201210-201404

sub83800-0ZU61

main83800-0ZU61i201405-201505

main83800-0ZU70i201210-201404

LIGHT GRADE&START & STOP SYSTEM PACKAGE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0ZU71

main83800-0ZU70i201210-201404

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0ZU71

main83800-0ZU70i201210-201404

SPEEDOMETER-KM/H

sub83800-0ZU71

main83800-0ZU71i201405-201505

SPEEDOMETER-KM/H

main83800-0ZU71i201405-201505

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0ZU71i201405-201505

LIGHT GRADE&START & STOP SYSTEM PACKAGE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0ZU80i201210-201404

SPEEDOMETER-KM/H

sub83800-0ZU81

main83800-0ZU81i201405-201505

FRONT FOG LAMP-WITH

main83800-0ZU81i201405-201505

FRONT FOG LAMP-WITH&SPEEDOMETER-KM/H

main83800-0ZU81i201405-201505

SPEEDOMETER-KM/H

main83800-0ZU90i201210-201404

LIGHT GRADE&SPEEDOMETER-MPH(MAIN) & KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-0ZU91

main83800-0ZU91i201405-201505

LIGHT GRADE&START & STOP SYSTEM PACKAGE&SPEEDOMETER-MPH(MAIN) & KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-0ZV00i201210-201404

sub83800-0ZV01

main83800-0ZV01i201405-201505

FRONT FOG LAMP-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83800-0ZV20i201210-201404

SPEEDOMETER-KM/H

sub83800-0ZV21

main83800-0ZV21i201405-201505

main83800-0ZV40i201210-201404

main83800-0ZW30i201210-201402

sub83800-0ZW31

main83800-0ZW31i201403-201505

main83800-0ZW50i201210-201402

sub83800-0ZW51

main83800-0ZW51i201403-201505

main83800-F2210i201505

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2670i201210-201404

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

sub83800-F2671

main83800-F2671i201405-201505

LIGHT GRADE&SPEEDOMETER-KM/H&AUDIO-RADIO LESS & SPEAKER LESS

main83800-F2680i201210-201404

SPEEDOMETER-KM/H

sub83800-F2681

main83800-F2681i201405-201505

SPEEDOMETER-KM/H

main83800-F2681i201405-201505

FRONT FOG LAMP-WITH

main83800-F2700i201210-201404

sub83800-F2701

main83800-F2701i201405-201505

main83800-F2D30i201505-201508

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D31

main83800-F2D30i201505-201508

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D31

main83800-F2D30i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D31

main83800-F2D31i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D32

main83800-F2D31i201509-201606

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D32

main83800-F2D31i201509-201606

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D32

main83800-F2D32i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D33

main83800-F2D32i201607

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D33

main83800-F2D32i201607

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D33

main83800-F2D50i201505-201508

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITH(MULTI DISPLAY)

sub83800-F2D51

main83800-F2D50i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D51

main83800-F2D50i201505-201508

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D51

main83800-F2D51i201509-201606

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITH(MULTI DISPLAY)

sub83800-F2D52

main83800-F2D51i201509-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D52

main83800-F2D51i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D52

main83800-F2D52i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D53

main83800-F2D52i201607

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D53

main83800-F2D70i201505-201508

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D71

main83800-F2D70i201505-201508

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D71

main83800-F2D70i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D71

main83800-F2D71i201509-201606

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D72

main83800-F2D71i201509-201606

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D72

main83800-F2D71i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D72

main83800-F2D72i201607

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D73

main83800-F2D72i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2D73

main83800-F2D72i201607

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2D73

main83800-F2E20i201505-201508

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2E21

main83800-F2E20i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E21

main83800-F2E20i201505-201508

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2E21

main83800-F2E21i201509-201606

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2E22

main83800-F2E21i201509-201606

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2E22

main83800-F2E21i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E22

main83800-F2E22i201607

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

main83800-F2E22i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2E22i201607

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

main83800-F2E40i201505-201508

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E41

main83800-F2E40i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E41

main83800-F2E41i201509-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E42

main83800-F2E41i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E42

main83800-F2E42i201607

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E43

main83800-F2E42i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2E43

main83800-F2E60i201505-201508

sub83800-F2E61

main83800-F2E61i201509-201606

sub83800-F2E62

main83800-F2E62i201607-201608

sub83800-F2E63

main83800-F2E63i201608

sub83800-F2E64

main83800-F2F00i201505-201508

sub83800-F2F01

main83800-F2F01i201509-201606

sub83800-F2F02

main83800-F2F02i201607-201608

sub83800-F2F03

main83800-F2F03i201608

sub83800-F2F04

main83800-F2F20i201505-201508

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F21

main83800-F2F20i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F21

main83800-F2F21i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F22

main83800-F2F21i201509-201606

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F22

main83800-F2F22i201607-201704

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F23

main83800-F2F22i201607-201704

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F23

main83800-F2F23i201705

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2F23i201705

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

main83800-F2F40i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F41

main83800-F2F40i201505-201508

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F41

main83800-F2F41i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2F41i201509-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2F42i201607-201704

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F43

main83800-F2F42i201607-201704

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F43

main83800-F2F43i201705

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F44

main83800-F2F43i201705

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F44

main83800-F2F60i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F61

main83800-F2F60i201505-201508

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F61

main83800-F2F61i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F62

main83800-F2F61i201509-201606

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F62

main83800-F2F62i201607-201804

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

sub83800-F2F63

main83800-F2F62i201607-201804

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F63

main83800-F2F80i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F81

main83800-F2F80i201505-201508

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F81

main83800-F2F81i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F82

main83800-F2F81i201509-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F82

main83800-F2F82i201607-201804

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F83

main83800-F2F82i201607-201804

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F83

main83800-F2F90i201505-201508

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F91

main83800-F2F90i201505-201508

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F91

main83800-F2F90i201505-201508

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITH(MULTI DISPLAY)

sub83800-F2F91

main83800-F2F91i201509-201606

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-MPH(MAIN) & KM/H,WITH(MULTI DISPLAY)

sub83800-F2F92

main83800-F2F91i201509-201606

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F92

main83800-F2F91i201509-201606

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F92

main83800-F2F92i201607

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F93

main83800-F2F92i201607

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

sub83800-F2F93

main83800-F2J30i201505

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2J40i201505

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2J70i201505

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2J80i201505

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83800-F2J90i201505

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

83138GGLASS, COMBINATION METER

main83852-0Z250i201505

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83852-0Z250i201505

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83852-0Z250i201210-201505

main83852-0Z410i201210-201505

SPEEDOMETER-MPH(MAIN) & KM/H,WITH(MULTI DISPLAY)

main83852-0Z410i201210-201505

SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

main83852-F2D30i201505-201804

SPEEDOMETER-MPH(MAIN) & KM/H,WITHOUT(MULTI DISPLAY)

main83852-F2D30i201505-201804

SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY)

main83852-F2D30i201505

PRE-COLLISION SYSTEM-WITH&SPEEDOMETER-KM/H,WITH(MULTI DISPLAY)

90167W0006

main90167-W0006

9356755020

main93567-55020

4 parts on this diagram · 1 diagram in section
