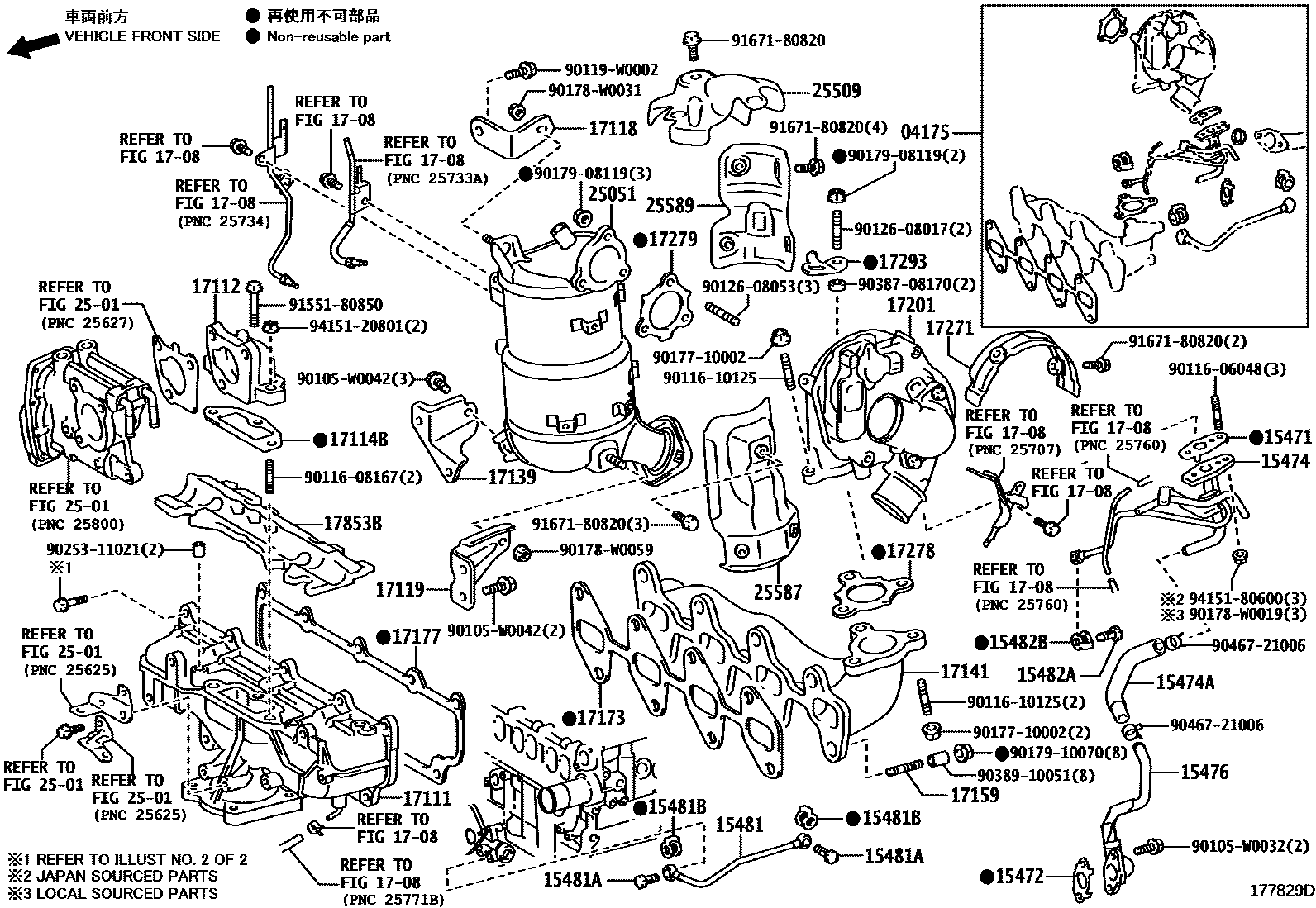

Toyota AURIS/HYBRID (UKP) — MANIFOLD
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
15476PIPE, TURBO OIL OUTLET, NO.2
15481ABOLT, UNION, NO.1
15481BGASKET(FOR UNION BOLT NO.1)
15482ABOLT, UNION, NO.2
15482BGASKET(FOR UNION BOLT NO.2)
1708
17112MANIFOLD, INTAKE, NO.2
17114BGASKET, INTAKE FLANGE
17119STAY, MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17271INSULATOR, TURBO, NO.1
NO.2
NO.1
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
(L)
(J)
17853BINSULATOR, INTAKE MANIFOLD
2501
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/0R070/Y
*114=*330
*114=TOYOTA/47070/Y
*114=TOYOTA/47130/Y
*114=*413
*114=*568
*114=TOYOTA/*386/Y
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25587INSULATOR, MANIFOLD CONVERTER, NO.2
25589INSULATOR, MANIFOLD CONVERTER, NO.4
90105W0032
main90105-W0032
90105W0042
main90105-W0042
9011606048
main90116-06048
9011608167
main90116-08167
9011610125
main90116-10125
90119W0002
main90119-W0002
9012608017
main90126-08017
9012608053
main90126-08053
9017710002
main90177-10002
90178W0019
main90178-W0019
90178W0031
main90178-W0031
90178W0059
main90178-W0059
9017908119
main90179-08119
9017910070
main90179-10070
9025311021
main90253-11021
9038708170
main90387-08170
9038910051
main90389-10051
9046721006
main90467-21006
9155180850
main91551-80850
9167180820
main91671-80820
9415120801
main94151-20801
9415180600
main94151-80600
55 parts on this diagram · 11 diagrams in section
