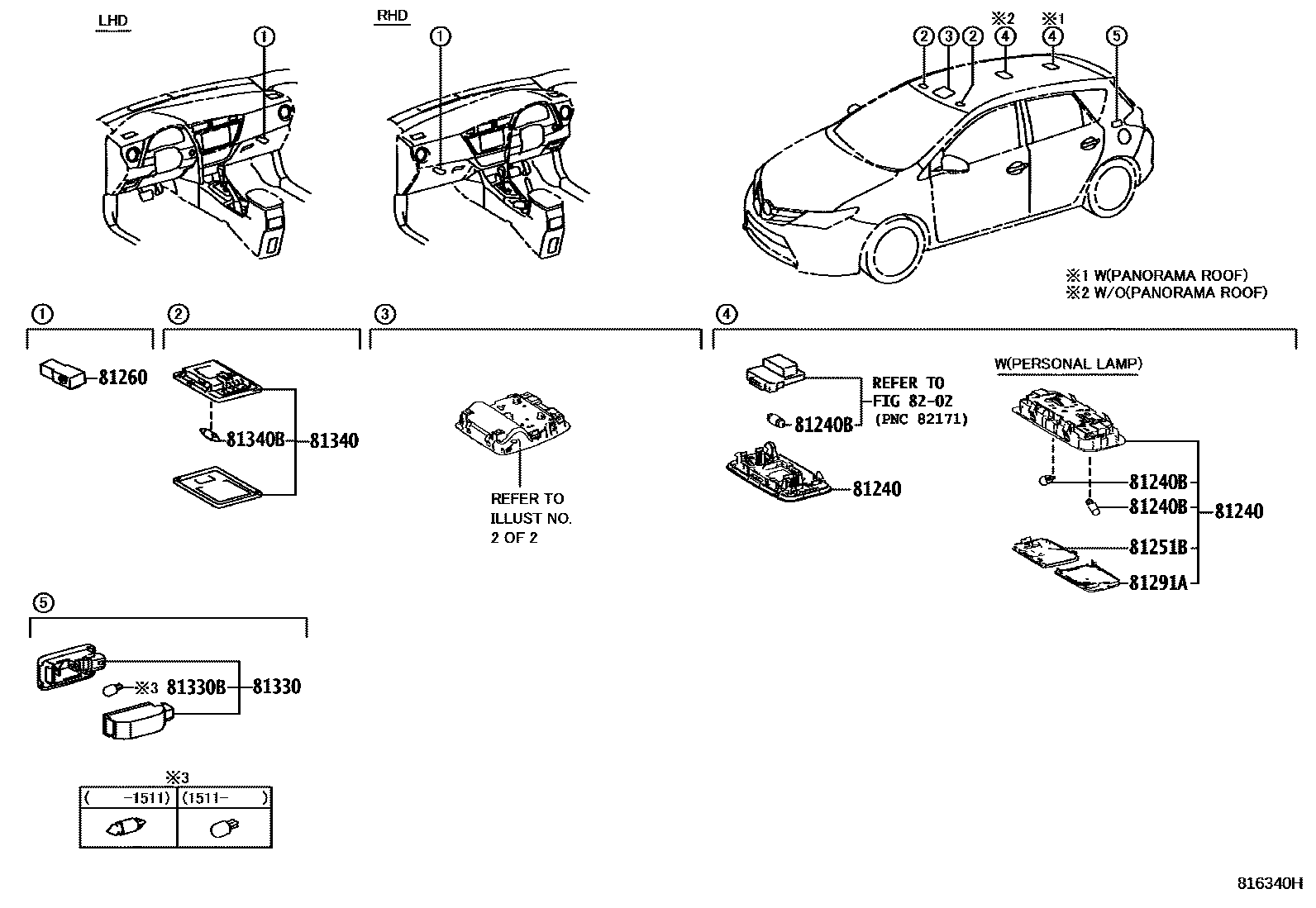

Toyota AURIS/HYBRID (UKP) — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-02080-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S201210-201505

LT.GRAY,TRIM2#

sub81240-02080

main81240-02080-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S201210-201505

LIGHT GRADE,LT.GRAY,TRIM2#

sub81240-02080

main81240-02080-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S201505

ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#,4#

sub81240-02080

main81240-02080-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S201210-201505

ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM2#

sub81240-02080

main81240-02080-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..N201210-201505

ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE),LT.GRAY,TRIM1#,2#

sub81240-02080

main81250-05030-B0iZWE186..G201210-201505

LT.GRAY,TRIM1#,2#

main81250-05030-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S201505

LIGHT GRADE,LT.GRAY,TRIM2#,4#

main81250-05030-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..N201210-201505

LT.GRAY,TRIM2#

main81250-05030-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..N201210-201505

LIGHT GRADE,LT.GRAY,TRIM1#,2#

main81250-05030-B0iADE186,NDE180,NRE180,ZRE185,ZWE186..N201210-201505

LIGHT GRADE,LT.GRAY,TRIM2#

main81250-05030-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

LT.GRAY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-11062iNDE180,NRE18#,ZRE185,ZWE186..G,N,S201505-201804

12V 8W,LIGHT GRADE

main90981-11062iNDE180,NRE18#,ZRE185,ZWE186..G,N,S201210-201804

12V 8W

main90981-14011iNDE180,NRE18#,ZRE185,ZWE186..G,N,S201505

12V 8W,LIGHT GRADE

main90981-14011iNDE180,NRE180,ZRE185..D201210-201505

12V 8W

main90981-14011iNDE180,NRE180,ZRE185..D201210-201505

12V 8W,ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iADE186,NDE180,NRE180,ZRE185,ZWE186..G,N201210-201505

main81251-05030iWWE185201505-201804

LIGHT GRADE

81260LAMP ASSY, GLOVE BOX

main81080-0D010iWWE185201601-201804

main81080-48010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201512

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iWWE185201505-201804

LIGHT GRADE

main81291-05030iADE186,NDE180,NRE180,ZRE185,ZWE186..G,N201210-201505

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02060iWWE185201511-201804

main81330-05050iNDE180,NRE18#,WWE185,ZRE185,ZWE186201210-201510

sub81330-02060

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-WB021iNDE180,NRE18#,ZRE185,ZWE186201511-201804

12V 5W

main90981-WE003iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201511

12V 5W

81340LAMP ASSY, VANITY

main81340-02030-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

LT.GRAY,TRIM2#,4#

main81340-02030-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201210-201505

LT.GRAY,TRIM2#

main81340-02030-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

LIGHT GRADE,LT.GRAY,TRIM2#,4#

main81340-02030-B0iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201210-201505

LIGHT GRADE,LT.GRAY,TRIM2#

main81340-02030-B0iZWE186..G201210-201505

LT.GRAY,TRIM1#,2#

main81340-02030-B0iZWE186..G201210-201505

LIGHT GRADE,LT.GRAY,TRIM1#,2#

81340BBULB (FOR VANITY LAMP)

main90981-WE003iADE186,NDE180,NRE180,ZRE185,ZWE186..G,N201210-201804

12V 5W

main90981-WE003iWWE185201505-201804

12V 5W,LIGHT GRADE

8202

10 parts on this diagram · 2 diagrams in section
