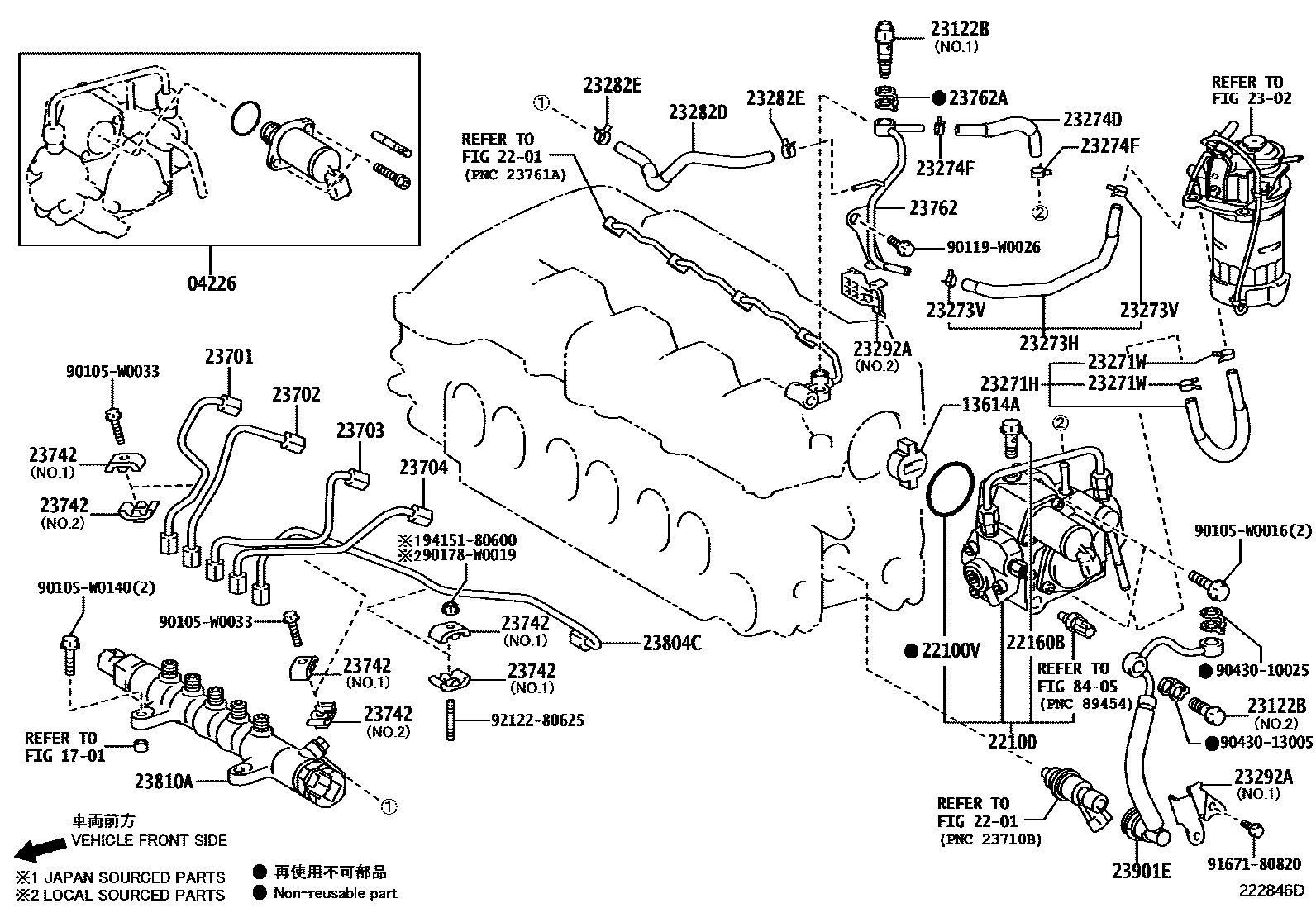

Toyota AURIS/HYBRID (UKP) — INJECTION PUMP ASSEMBLY
04226VALVE KIT, SUCTION CONTROL
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
(L)
(J)
1701
2201
22100VRING, O(FOR INJECTION PUMP)
22160BSCREW
23122BVALVE, CHECK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23271HHOSE, FUEL, NO.1
23271WCLIP(FOR FUEL HOSE NO.1)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23273HHOSE, FUEL, NO.2
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(J),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
23273VCLIP(FOR FUEL HOSE NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23274DHOSE, FUEL, NO.3
23274FCLIP(FOR FUEL HOSE NO.3)
23282DHOSE, FUEL, NO.4
23282ECLIP(FOR FUEL HOSE NO.4)
23292APROTECTOR, FUEL HOSE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23742CLAMP, INJECTION PIPE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23762PIPE, NOZZLE LEAKAGE, NO.2
23762AGASKET, NOZZLE LEAKAGE PIPE NO.2
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
23901ETUBE SUB-ASSY, FUEL
8405
90105W0016
main90105-W0016
90105W0033
main90105-W0033
90105W0140
main90105-W0140
90119W0026
main90119-W0026
90178W0019
main90178-W0019
9043010025
main90430-10025
9043013005
main90430-13005
9167180820
main91671-80820
9212280625
main92122-80625
9415180600
main94151-80600
38 parts on this diagram · 4 diagrams in section
