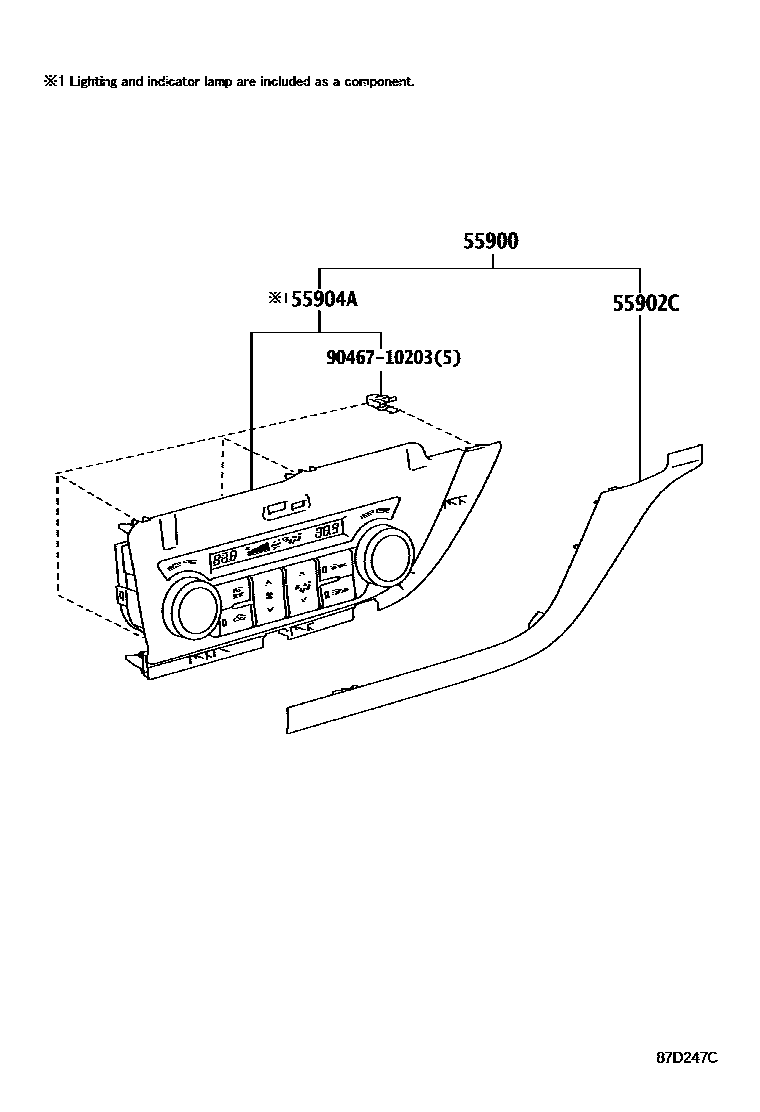

Toyota AURIS/HYBRID (UKP) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1HEATER CONTROL PANEL 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR 0007 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-02360-C2iZWE186..LHD..G201210-201505

BLACK,TRIM1#,2#

main55900-02360-C2iZWE186..LHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2#

main55900-02370-C0iZWE186..LHD..G201210-201505

AIR CONDITIONER-AUTO(SINGLE MODE),BLACK,TRIM2#

main55900-02370-C0iZRE185..D201210-201505

BLACK,TRIM2#

main55900-02370-C0iZRE185..D201210-201505

LIGHT GRADE,BLACK,TRIM2#

main55900-02370-C0iZRE185..D201210-201505

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE),BLACK,TRIM2#

main55900-02380-B0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

METAL SILVER,TRIM2#

main55900-02400-C0iNDE180,NRE180..LHD..D201210-201505

BLACK,TRIM2#

main55900-02400-C0iNDE180,NRE180..LHD..D201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2#

main55900-02410-C2iZWE186..RHD..G201210-201505

BLACK,TRIM1#,2#

main55900-02410-C2iZWE186..RHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2#

main55900-02430-B0iNDE180,NRE180,ZRE185..RHD..N201210-201505

METAL SILVER,TRIM2#

main55900-02450-C0iNDE180,NRE180..RHD..D201210-201505

BLACK,TRIM2#

main55900-02450-C0iNDE180,NRE180..RHD..D201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2#

main55900-02460-B0iZWE186..LHD..N201210-201505

ICE GRAY,TRIM2#

main55900-02470-B0iZWE186..RHD..N201210-201505

ICE GRAY,TRIM2#

main55900-02810iNDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..G201505-201604

main55900-02820iZRE185,ZWE186..LHD..(D,N,S);NDE180,NRE18#,WWE185..LHD..(N,S)201505-201604

LIGHT GRADE

main55900-02820iZRE185,ZWE186..LHD..(D,N,S);NDE180,NRE18#,WWE185..LHD..(N,S)201505-201604

AIR CONDITIONER-AUTO(SINGLE MODE)

main55900-02830iNDE180,NRE180..LHD..D201505-201604

LIGHT GRADE&AIR CONDITIONER-WITHOUT

main55900-02840iNRE185,WWE185,ZWE186..RHD..G201505-201604

main55900-02850iZWE186..RHD..(D,N,S);NDE180,NRE18#,WWE185,ZRE185..RHD..(N,S)201505-201604

LIGHT GRADE

main55900-02850iZWE186..RHD..(D,N,S);NDE180,NRE18#,WWE185,ZRE185..RHD..(N,S)201505-201604

AIR CONDITIONER-AUTO(SINGLE MODE)

main55900-02860iNDE180,NRE180..RHD..D201505-201604

LIGHT GRADE&AIR CONDITIONER-WITHOUT

main55900-02C50iWWE185..LHD..G201604-201804

main55900-02C60iNDE180,NRE18#..LHD..(N,S);ZRE185,ZWE186..LHD..(D,N,S)201604

LIGHT GRADE

main55900-02C60iWWE185..LHD..(N,S)201604-201804

main55900-02C60iNDE180,NRE18#..LHD..(N,S);ZRE185,ZWE186..LHD..(D,N,S)201604

AIR CONDITIONER-AUTO(SINGLE MODE)

main55900-02C70iNRE185,ZRE185..LHD;NDE180,NRE180..LHD..(G,N,S)201604

LIGHT GRADE&AIR CONDITIONER-WITHOUT

main55900-02C80iNRE185,ZWE186..RHD..G201604-201804

main55900-02C90iZWE186..RHD..G201604

AIR CONDITIONER-AUTO(SINGLE MODE)

main55900-02C90iNDE180,NRE180..RHD..D201604

LIGHT GRADE

main55900-02C90iWWE185..RHD..(N,S)201604-201804

main55900-02D00iNDE180,NRE180..RHD..D201604

LIGHT GRADE&AIR CONDITIONER-WITHOUT

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-02220-C0iZWE186..LHD..G201210-201505

BLACK,TRIM1#,2#

main55902-02220-C0iZWE186..LHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2#

main55902-02230-C0iZWE186..RHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE),BLACK,TRIM2#

main55902-02230-C0iZWE186..RHD..G201210-201505

BLACK,TRIM1#,2#

main55902-12220-C0iNDE180,NRE180,ZRE185..RHD..N201210-201505

LIGHT GRADE,BLACK,TRIM2#

main55902-12220-C0iNDE180,NRE180..RHD..D201210-201505

BLACK,TRIM2#

main55902-12220-C0iNDE180,NRE180..RHD..D201210-201505

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE),BLACK,TRIM2#

main55902-12220-C0iNDE180,NRE180..RHD..D201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2#

main55902-12230-B0iNDE180,NRE180,ZRE185..RHD..N201210-201505

METAL SILVER,TRIM2#

main55902-12240-B0iZWE186..RHD..N201210-201505

ICE GRAY,TRIM2#

main55902-12260-C0iNDE180,NRE180,ZRE185..LHD..D201210-201505

LIGHT GRADE,BLACK,TRIM2#

main55902-12260-C0iNDE180,NRE180,ZRE185..LHD..D201210-201505

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE),BLACK,TRIM2#

main55902-12260-C0iNDE180,NRE180,ZRE185..LHD..D201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT,BLACK,TRIM2#

main55902-12260-C0iZWE186..LHD..N201210-201505

BLACK,TRIM2#

main55902-12270-B0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

METAL SILVER,TRIM2#

main55902-12280-B0iZWE186..LHD..N201210-201505

ICE GRAY,TRIM2#

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-02050iZWE186..LHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE)

main55904-02060iNDE180,NRE180..LHD..D201210-201505

AIR CONDITIONER-AUTO(SINGLE MODE)

main55904-02060iNDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..LHD..(D,N)201210-201505

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE)

main55904-02070iADE186,ZRE185..LHD;NDE180,NRE180..LHD..N201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT

main55904-02080iZWE186..RHD..G201210-201505

HIGH GRADE&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&AIR CONDITIONER-AUTO(DUAL MODE)

main55904-02090iNDE180,NRE180,ZRE185,ZWE186..RHD..N201210-201505

LIGHT GRADE&INSTRUMENT FINISH PANEL-BASE(BLACK HAIRLINE)

main55904-02090iNDE180,NRE180,ZRE185,ZWE186..RHD..N201210-201505

AIR CONDITIONER-AUTO(SINGLE MODE)

main55904-02100iNDE180,NRE180..RHD..D201210-201505

LIGHT GRADE&AIR CONDITIONER-WITHOUT

9046710203

main90467-10203

4 parts on this diagram · 7 diagrams in section
