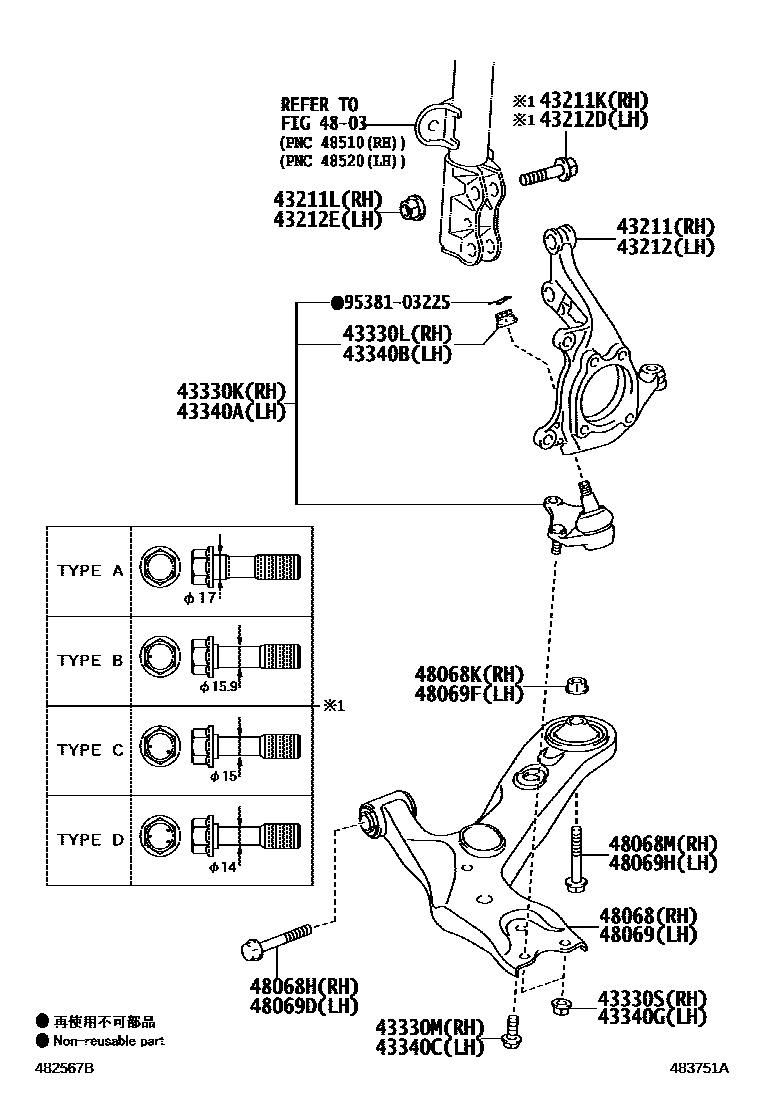

Toyota AURIS/HYBRID (UKP) — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-05090iWWE185201210-201804

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iNDE180,NRE18#,ZRE185,ZWE186201210-201804

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

OD=15,TYPE C:REFER ILLUST.

main90105-17011iWWE185201210-201804

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iWWE185201210-201804

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43212KNUCKLE, STEERING, LH

main43212-05090iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iNDE180,NRE18#,ZRE185,ZWE186201210-201804

OD=15,TYPE C:REFER ILLUST.

main90105-17011iNDE180,NRE18#,ZRE185,ZWE186201210-201804

OD=14,TYPE D:REFER ILLUST.

main90105-W0070iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09630iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201609

sub43330-09631

main43330-09631iWWE185201610-201804

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-W0077iNDE180,NRE18#,ZRE185,ZWE186201210-201804

sub90105-12346

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09630iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201609

sub43330-09631

main43330-09631iWWE185201610-201804

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-W0077iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

sub90105-12346

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02130iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090iNDE180,NRE18#,ZRE185,ZWE186201306-201804

main91554-L1690iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201305

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090iADE186,NDE180,NRE180,ZRE185,ZWE186201306-201804

main91554-L1690iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02130iNDE180,NRE18#,ZRE185,ZWE186201210-201804

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090iWWE185201306-201804

main91554-L1690iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201305

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iWWE185201210-201804

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090iNDE180,NRE18#,ZRE185,ZWE186201306-201804

main91554-L1690iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201305

9538103225

main95381-03225

24 parts on this diagram · 1 diagram in section
