Toyota AURIS/HYBRID (UKP) — ECO-RUN SYSTEM

0001 1 0002 1

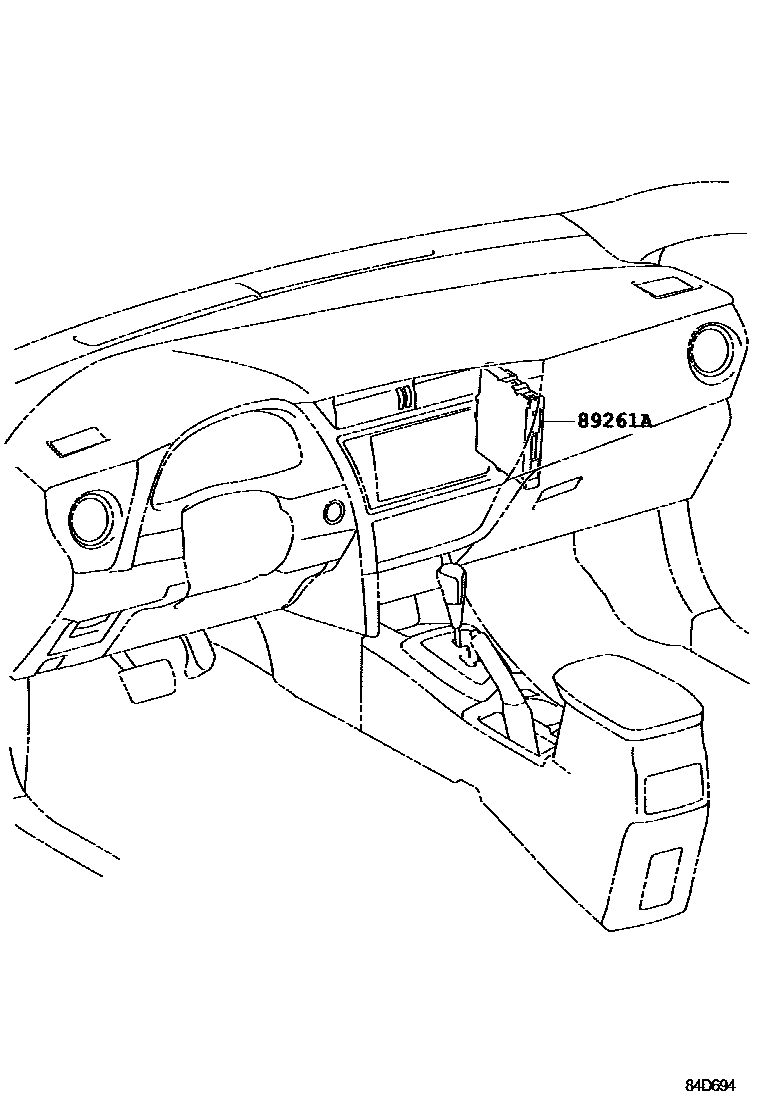

89261ACOMPUTER, ENGINE STOP AND START

main89260-12100iADE186201210-201212

START & STOP SYSTEM PACKAGE

main89261-02010iNDE180..RHD..HB..D201210-201405

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

sub89261-02011

main89261-02010iADE186..WG201210-201406

sub89261-02011

main89261-02010iNDE180,NRE180..LHD..6F201212-201406

START & STOP SYSTEM PACKAGE

sub89261-02011

main89261-02011iADE186201407-201505

START & STOP SYSTEM PACKAGE

main89261-02030iNRE185..CVT201505

main89261-02050iWWE185201505-201804

1 parts on this diagram · 2 diagrams in section
