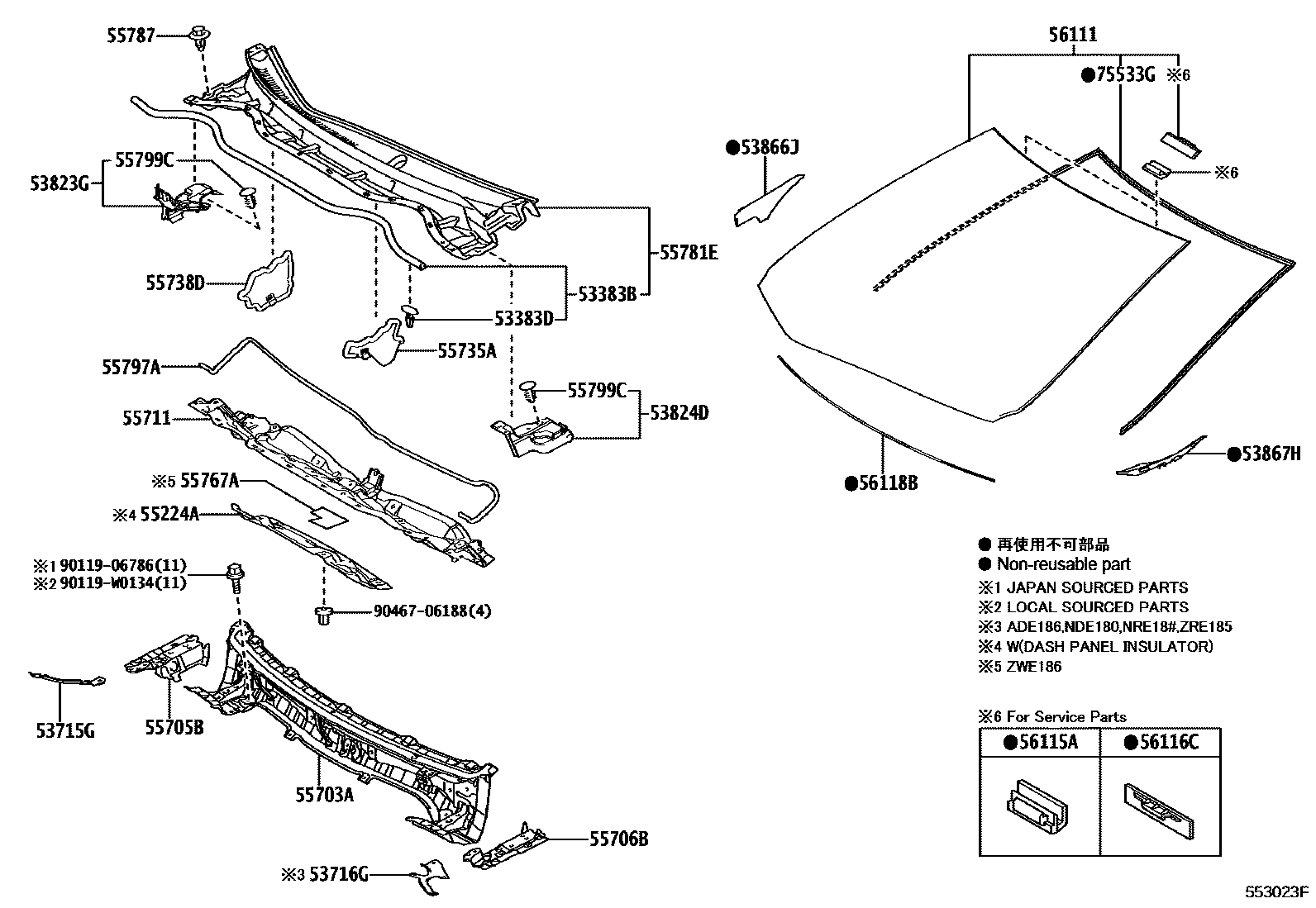

Toyota AURIS/HYBRID (UKP) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
LIGHT GRADE
LIGHT GRADE
LIGHT GRADE
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735APLATE, WATER GUARD, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55767ASHEET, COWL TOP INSULATOR, NO.5
55787CLIP, COWL VENTILATOR LOUVER, INNER
55797ASEAL, COWL WATER EXTRACT
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO)
sub56101-02A61
LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO)
COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)
sub56101-02A71
COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)
HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)
LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO)
LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO)
HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)
COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)
COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)
HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)
COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH
LIGHT GRADE&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
LIGHT GRADE&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT
COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH
sub56101-0Z020
COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH
COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
*D,L=1262.5,AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION
*D,L=1262.5,AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5,PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5
*D,L=1262.5,LIGHT GRADE&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
*D,L=1262.5,COMFORT PACKAGE
*D,L=1262.5,COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH
*D,L=1262.5,COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER &NAVIGATION
*D,L=1262.5,COMFORT PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER &NAVIGATION(*VCS)
*D,L=1262.5,COMFORT PACKAGE&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,COMFORT PACKAGE&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION
*D,L=1262.5,COMFORT PACKAGE&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5,PRE-COLLISION SYSTEM-WITH
*D,L=1262.5,PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION
*D,L=1262.5,PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5,PRE-COLLISION SYSTEM-WITHOUT
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT
*D,L=1262.5,AUDIO-*DA,DAB,JBL,6SPEAKER,NAVIGATION(*VCS)
*D,L=1262.5,PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA,DAB,JBL,6SPEAKER,NAVIGATION(*VCS)
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GAS TYPE=R-134A&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&PRE-COLLISION SYSTEM-WITHOUT&AUDIO-*DA & DAB & 6SPEAKER & NAVIGA
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&AUDIO-*DA & DAB & 6SPEAKER
*D,L=1262.5,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE&REFRIGERANT GAS TYPE=R-134A&AUDIO-*DA & DAB & 6SPEAKER & NAVIGATION(*VCS)
*D,L=1262.5,HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO)
*D,L=1262.5,LIGHT GRADE&LIGHT CONTROL SYSTEM-WITHOUT(AUTO)
*D,L=1262.5,COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO)
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
90119W0134
main90119-W0134
9046706188
main90467-06188
28 parts on this diagram · 4 diagrams in section
