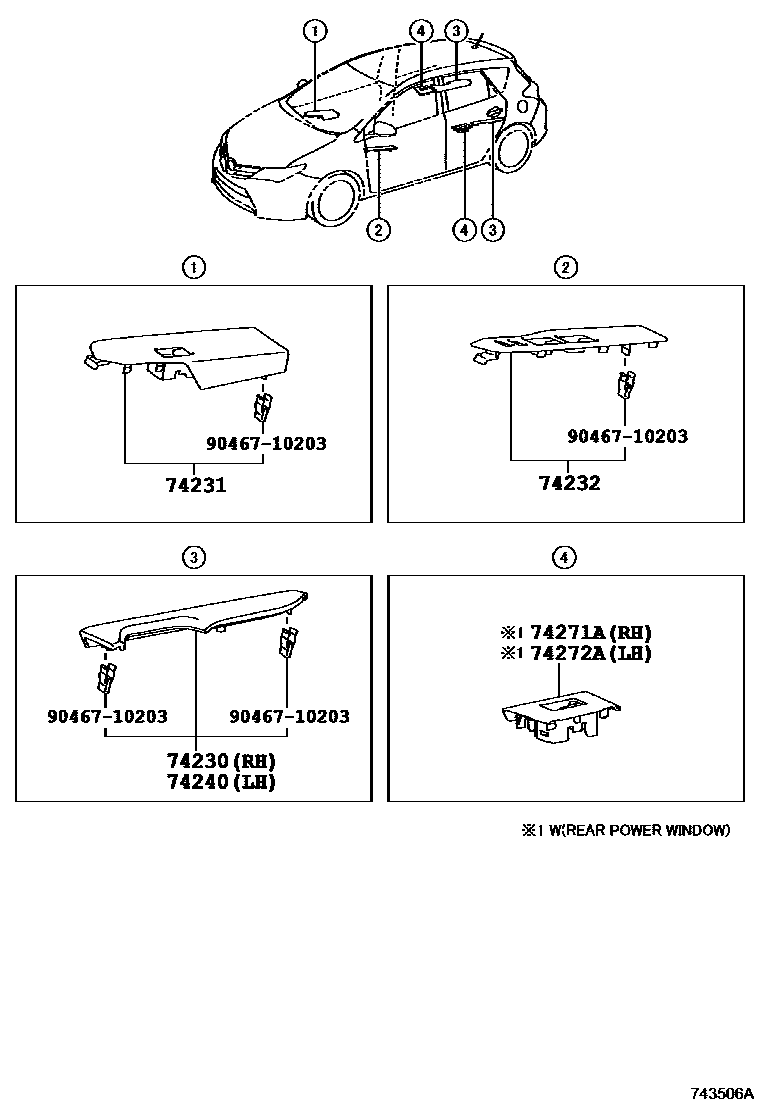

Toyota AURIS/HYBRID (UKP) — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74230ARMREST ASSY, REAR, RH

main74250-02030-C2iNDE180,NRE180,ZRE185..D201210-201505

BLACK,TRIM2#

main74250-02030-C8iNDE180,NRE180,ZRE185,ZWE186..D201505

BLACK,TRIM2#

main74250-02030-C8iNDE180,NRE180,ZRE185,ZWE186..D201505

REFRIGERANT GAS TYPE=R-134A,BLACK,TRIM2#

main74250-02050-C4iNDE180,NRE185,WWE185,ZRE185,ZWE186..S201505-201610

BLACK/TOYOBO ESTHER,TRIM2#

main74250-02050-C5iNDE180,NRE185,WWE185,ZRE185,ZWE186..S201610

BLACK,TRIM2#

main74250-02070-C4iZWE186..RHD..N201210-201505

BLACK,TRIM2#

main74250-02070-C4iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74250-02080-C5iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

BLACK/GRAY NO.205,TRIM2#

main74250-02080-C6iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

BLACK/COPPER,TRIM4#

main74250-02120-C3iZWE186..G201210-201505

BLACK,TRIM2#

main74250-02120-C3iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74250-02120-C3iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74250-02120-C3iADE186,NDE180,NRE180,ZRE185..N201210-201505

BLACK,TRIM1#,2#

main74250-02340-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N201505

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02D20-C0iZWE186..RHD..N201210-201505

BLACK,TRIM2#

sub74231-02D21

main74231-02D20-C0iZWE186..RHD..N201210-201405

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub74231-02D21

main74231-02D20-C0iNDE180,NRE180..RHD..D201210-201505

LIGHT GRADE,BLACK,TRIM2#

sub74231-02D21

main74231-02D21iNDE180,NRE18#,ZRE185,ZWE186..RHD..(G,N,S)201505

LIGHT GRADE

main74231-02D30-C0iNDE180,NRE180,ZRE185..RHD..N201210-201505

BLACK,TRIM2#

sub74231-02D31

main74231-02D31iNDE180,NRE18#,ZRE185,ZWE186..RHD..(G,N,S)201505-201804

main74231-02D40-C0iZWE186..RHD..G201210-201505

BLACK,TRIM1#,2#

main74231-02D50-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

BLACK,TRIM2#

sub74231-02D51

main74231-02D50-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

BLACK,TRIM1#,2#

sub74231-02D51

main74231-02D51iNDE180,NRE18#,ZRE185,ZWE186..LHD201505-201804

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02E00-C0iNDE180,NRE180,ZRE185,ZWE186..RHD..(D,N)201210-201505

BLACK,TRIM2#

sub74232-02E01

main74232-02E00-C0iNDE180,NRE180,ZRE185,ZWE186..RHD..(D,N)201210-201505

BLACK,TRIM1#,2#

sub74232-02E01

main74232-02E01iNDE180,NRE18#,ZRE185,ZWE186..RHD201505-201804

main74232-02E10-C0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

BLACK,TRIM2#

sub74232-02E11

main74232-02E10-C0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub74232-02E11

main74232-02E11iNDE180,NRE180,ZRE185,ZWE186..LHD..D201505

REFRIGERANT GAS TYPE=R-134A

main74232-02E11iNDE180,NRE180,ZRE185,ZWE186..LHD..D201505

LIGHT GRADE

main74232-02E20-C0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74232-02E20-C0iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

BLACK,TRIM2#

main74232-02E21iNDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S)201505-201804

main74232-02E30-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74232-02E30-C0iZWE186..LHD..G201210-201505

BLACK,TRIM1#,2#

74240ARMREST ASSY, REAR, LH

main74260-02020-C3iNDE180,NRE180,ZRE185..D201210-201505

BLACK,TRIM2#

main74260-02020-C9iNDE180,ZRE185..HB..6F..(G,S);NRE18#,WWE185..LHD..6F..(G,N,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S)201505

BLACK,TRIM2#

main74260-02020-C9iNDE180,ZRE185..HB..6F..(G,S);NRE18#,WWE185..LHD..6F..(G,N,S);NDE180,ZRE185..LHD..WG..6F..(G,N,S)201505

REFRIGERANT GAS TYPE=R-134A,BLACK,TRIM2#

main74260-02040-C4iNDE180,NRE185,WWE185,ZRE185,ZWE186..S201505-201610

BLACK/TOYOBO ESTHER,TRIM2#

main74260-02040-C5iNDE180,NRE185,WWE185,ZRE185,ZWE186..S201610

BLACK,TRIM2#

main74260-02060-C4iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74260-02060-C4iADE186,NDE180,NRE180,ZRE185..LHD..N201210-201505

BLACK,TRIM2#

main74260-02090-C3iADE186,NDE180,NRE180,ZRE185..N201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74260-02090-C3iZWE186..G201210-201505

BLACK,TRIM1#,2#

main74260-02090-C3iZWE186..G201210-201505

BLACK,TRIM2#

main74260-02090-C3iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74260-02340-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..N201505

BLACK,TRIM2#

main74260-02620-C5iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

BLACK/GRAY NO.205,TRIM2#

main74260-02620-C6iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505

BLACK/COPPER,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02630-C0iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub74271-02631

main74271-02630-C0iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

sub74271-02631

main74271-02630-C0iADE186,NDE180,NRE180,ZRE185..N201210-201505

BLACK,TRIM1#,2#

sub74271-02631

main74271-02630-C0iADE186,NDE180,NRE180,ZRE185..N201210-201505

BLACK,TRIM2#

sub74271-02631

main74271-02631iWWE185201505-201804

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02630-C0iADE186,NDE180,NRE180,ZRE185..N201210-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74272-02630-C0iZWE186..G201210-201505

BLACK,TRIM1#,2#

main74272-02630-C0iZWE186..G201210-201505

BLACK,TRIM2#

main74272-02630-C0iZWE186..G201210-201505

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN),BLACK,TRIM2#

main74272-02631iWWE185201505-201804

9046710203

main90467-10203

7 parts on this diagram · 3 diagrams in section
