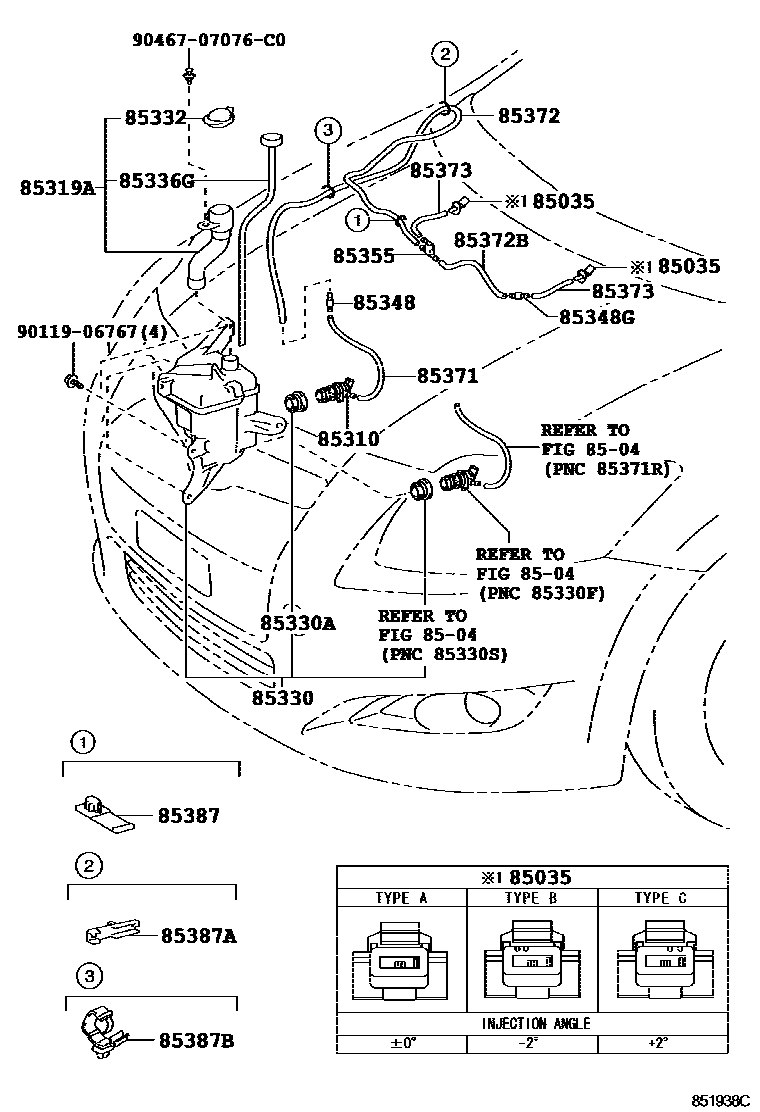

Toyota AURIS/COROLLA (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i200610-200812

TYPE A:REFER ILLUST.

main85381-12340×2i200610-200812

TYPE B:REFER ILLUST.

main85381-12350×2i200610-200812

TYPE C:REFER ILLUST.

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71010i200910

main85330-02030i200809-200910

HEADLAMP CLEANER-WITH

85319AHOSE, INLET

main85319-12530i200610-200812

85330JAR ASSY, WINDSHIELD WASHER

main85315-12530i200910

main85355-02060i200610-200812

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200809-200910

main90069-20005i200610-200812

HEADLAMP CLEANER-WITH

85332CAP, WINDSHIELD WASHER JAR

main85316-52190i200610-200901

main85356-02060i200610-200812

HEADLAMP CLEANER-WITH

85336GGAGE, WATER LEVEL

main85313-20130i200910

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200910

main85375-05050i200809-200910

HEADLAMP CLEANER-WITH

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200610-200812

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200610-200812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200910

L=1450(*H,L=100)

main90069-16009i200809-200910

HEADLAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62030i200910-201003

L=1820

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200610-200812

L=1450(*H,L=360)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200610-200812

L=1450(*H,L=125)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E020i200610-200812

85387ACLAMP, WASHER, NO.2

main85387-12840i200610-200812

85387BCLAMP, WASHER, NO.3

main82711-1E350i200610-200812

9011906767

main90119-06767

9046707076C0

main90467-07076C0

20 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota AURIS/COROLLA (JPP)

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AURIS/COROLLA (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
