83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNRE150,ZRE15#..6F,6FS200809-200910

VALEO

main83530-0E010iZRE151201110

(L),DENSO

main83530-28010iNDE150200910

DENSO

main83530-28020iZRE151200910

(J),DENSO

main83530-60010iADE150;NDE150..5F,5FS200610-200901

YAZAKI

main83530-60020iNRE150,ZRE15#..6F,6FS200809-200910

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iADE150;NDE150,ZRE151..5FS200610-200901

main84210-52010iNDE150,ZRE151,ZZE150..5F200610-200812

main84210-52050iNDE150,ZRE151201205-201208

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20360iADE150..DCRL200610-200901

main89425-20380iADE150200901-200910

main89425-52010iNDE150..DCRL200812-200910

sub89425-52H00

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20370iADE150..DCRL200610-200901

main89425-20390iADE150200901-200910

main89425-52020iNDE150..DCRL200812-200910

sub89425-52H00

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE150201107

(L)

main89467-12020iADE150..DCRL200610-200901

main89467-12030iZRE15#..HTWVM200812-200910

main89467-12130iNDE150201107

(J)

main89467-12170iNDE150200910-201106

main89467-20100iADE150200901-200910

main89467-52070iNRE150200809-200910

sub89467-52090

89491SENSOR, ENGINE OIL LEVEL

main89491-12030iNDE150200610-200812

main89491-20120iADE150200610-200901

main89491-52030iNDE150..DCR200812-200910

main89491-52031iNDE150201112

main89491-52040iNDE150..DCRL200812-200910

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iNDE150200610-200812

main90430-36005iNDE150200910

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

9043018008

main90430-18008

9165160614

main91651-60614

9167180612

main91671-80612

9415180600

main94151-80600

9622110706

main96221-10706

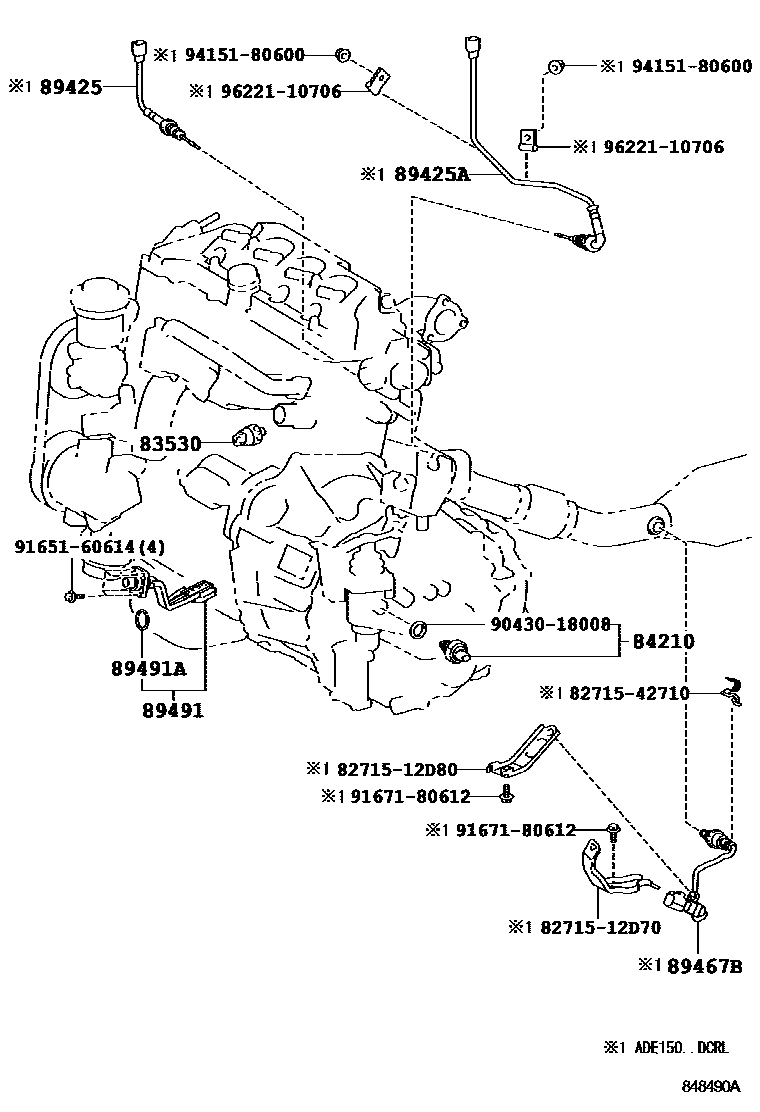

15 parts on this diagram · 19 diagrams in section
