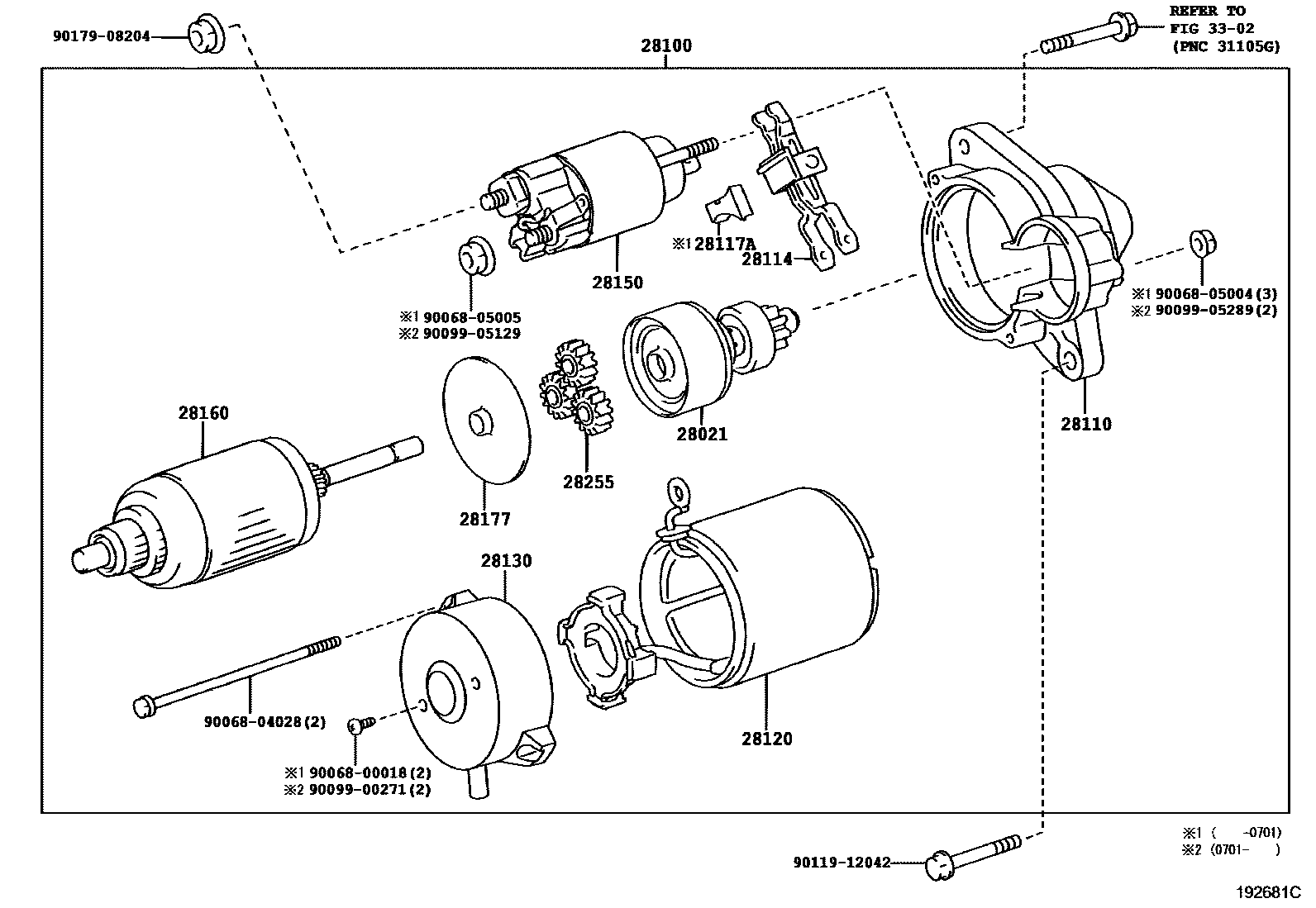

Toyota AURIS/COROLLA (JPP) — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0G040i200610-200701

main28021-0R010i200701-200901

main28021-70020i201102

main28021-33100i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28021-47110i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

28100STARTER ASSY

main28100-0G040i200610-200612

12V 2.0KW

main28100-0R010i200701-200901

12V 2.0KW

main28100-37020i200812-200906

12V 0.8KW

main28100-37021i200907-200910

12V 0.8KW

main28100-22040i200610-200812

12V 1.0KW,COLD AREA SPEC; 12V 1.0KW,SUB COLD AREA SPEC

main28100-33080i200610-200812

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

main28100-33120i200812-200910

12V 2.0KW,COLD AREA SPEC; 12V 2.0KW,SUB COLD AREA SPEC

main28100-37030i200812-200906

12V 1.0KW,COLD AREA SPEC; 12V 1.0KW,SUB COLD AREA SPEC

main28100-37031i200907-200910

12V 1.0KW,COLD AREA SPEC; 12V 1.0KW,SUB COLD AREA SPEC

main28100-47110supersedes 28100-47121i200809-200910

12V 1.6KW,STOP & START SYSTEM PACKAGE; 12V 1.6KW,STOP & START SYSTEM PACKAGE&COLD AREA SPEC; 12V 1.6KW,STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

main28100-47130i200809-200906

12V 1.0KW,COLD AREA SPEC; 12V 1.0KW,SUB COLD AREA SPEC

main28100-47131supersedes 28100-47121i200907-200910

12V 1.0KW,COLD AREA SPEC; 12V 1.0KW,SUB COLD AREA SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-0G040i200610-200701

main28110-0R010i200701-200901

main28110-33120supersedes 28110-33110i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28110-47110i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

28114PIN, STARTER DRIVE LEVER SET

main28113-0G020i200610-200701

main28114-0R010i200701-200901

main28114-33100i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

28117ASEAL, RUBBER

main28117-0G020i200610-200701

main28117-37050i200812-200910

main28117-47110i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-0G020i200610-200701

main28120-38020supersedes 28120-33110i200701-200901

main28120-47120i200907-200910

main28120-70020i200812-200907

main28120-40130i200907-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28120-47110supersedes 28120-47120i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

main28120-54380i200610-200812

COLD AREA SPEC; SUB COLD AREA SPEC

main28120-70050supersedes 28120-70020i200610-200812

COLD AREA SPEC; SUB COLD AREA SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0G040i200610-200701

main28130-0R010i200901-200910

main28130-33120i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28130-47110i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i200812-200910

main28150-37020i200701-200901

main28150-40090i200809-200910

main28150-70030i200610-200706

main28150-33040i200610-200812

COLD AREA SPEC; SUB COLD AREA SPEC

28160ARMATURE ASSY, STARTER

main28160-0G020i200901-200910

main28160-70021i200910

main28160-38020i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28160-54380i200610-200812

COLD AREA SPEC; SUB COLD AREA SPEC

main28160-70050i200809-200910

COLD AREA SPEC; SUB COLD AREA SPEC

main28180-47110i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i200901-200910

main28177-38020i200812-200910

COLD AREA SPEC; SUB COLD AREA SPEC

28255GEAR, PLANET

main28255-0G040×3i200901-200910

main28255-33090×3i200812-200910

main28255-47110×3i200809-200910

STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

9006800018

main90068-00018

9006804028

main90068-04028

9006805004

main90068-05004

9006805005

main90068-05005

9009900271

main90099-00271

9009905129

main90099-05129

9009905289

main90099-05289

9011912042

main90119-12042

9017908204

main90179-08204

21 parts on this diagram · 8 diagrams in section

STARTER for Toyota AURIS/COROLLA (JPP)

This section contains 38 genuine Toyota parts for the STARTER system of the Toyota AURIS/COROLLA (JPP). Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE.
