Toyota AURIS/COROLLA (JPP) — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

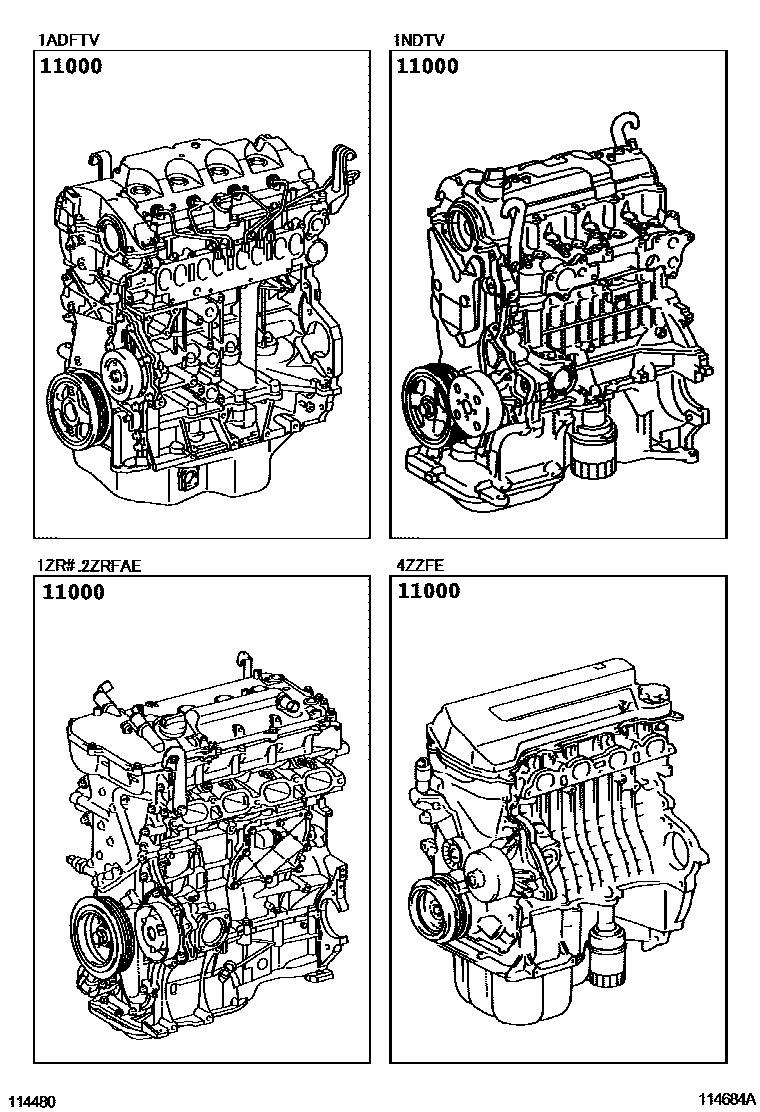

11000ENGINE ASSY, PARTIAL

main19000-22A50i4ZZFE..ZZE150200610-200807

sub16258-28030

sub16268-22091

sub16268-22101

main19000-22A51i4ZZFE..ZZE150200807-200812

sub19000-22351

sub12315-22020

main19000-26400i1ADFTV..ADE150..DCR200801-200802

TURKEY SPEC

sub16261-0R080

sub16279-26050

sub16283-26010

sub26100-0R011

sub96136-41501

main19000-26401i1ADFTV..ADE150..DCR200802-200901

sub19000-0R031

main19000-26430i1ADFTV..ADE150200901-200910

sub19000-26431

sub25760-26200

sub25770-26172

main19000-33260i1NDTV..NDE150200610-200812

main19000-33280i1NDTV..NDE150..DCRL200812-200910

sub19000-33281

main19000-33300i1NDTV..NDE150200910-200911

main19000-33301i1NDTV..NDE150200911-201009

sub16206-33041

sub16206-33051

sub16263-33030

sub90301-20016

main19000-33302i1NDTV..NDE150201009-201112

sub16262-33011

main19000-33303i1NDTV..NDE150201112-201208

main19000-37240i1ZRFE..ZRE151200610-200812

main19000-37410i1ZRFE..ZRE151200812-200910

main19000-37430i2ZRFAE..ZRE152200812-200910

main19000-37440i1ZRFAE..ZRE151200812-200910

main19000-47080supersedes 19000-47090i1NRFE..NRE150200809-200910

STOP & START SYSTEM PACKAGE

sub19000-47081

sub91671-G0825

sub94188-00841

1 parts on this diagram · 2 diagrams in section
