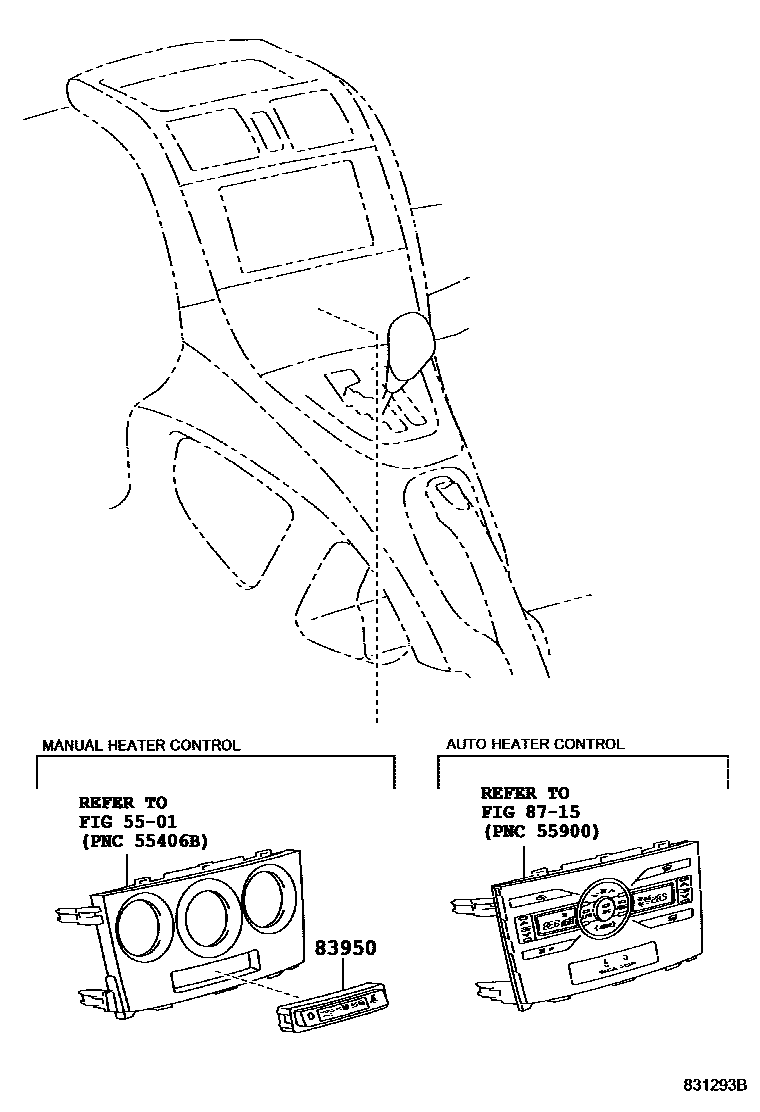

Toyota AURIS/COROLLA (JPP) — INDICATOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

83950LAMP ASSY, TELLTALE

main83950-12160i200610-200901

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

3 parts on this diagram · 1 diagram in section

INDICATOR for Toyota AURIS/COROLLA (JPP)

This section contains 3 genuine Toyota parts for the INDICATOR system of the Toyota AURIS/COROLLA (JPP). Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, LAMP ASSY, TELLTALE, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
