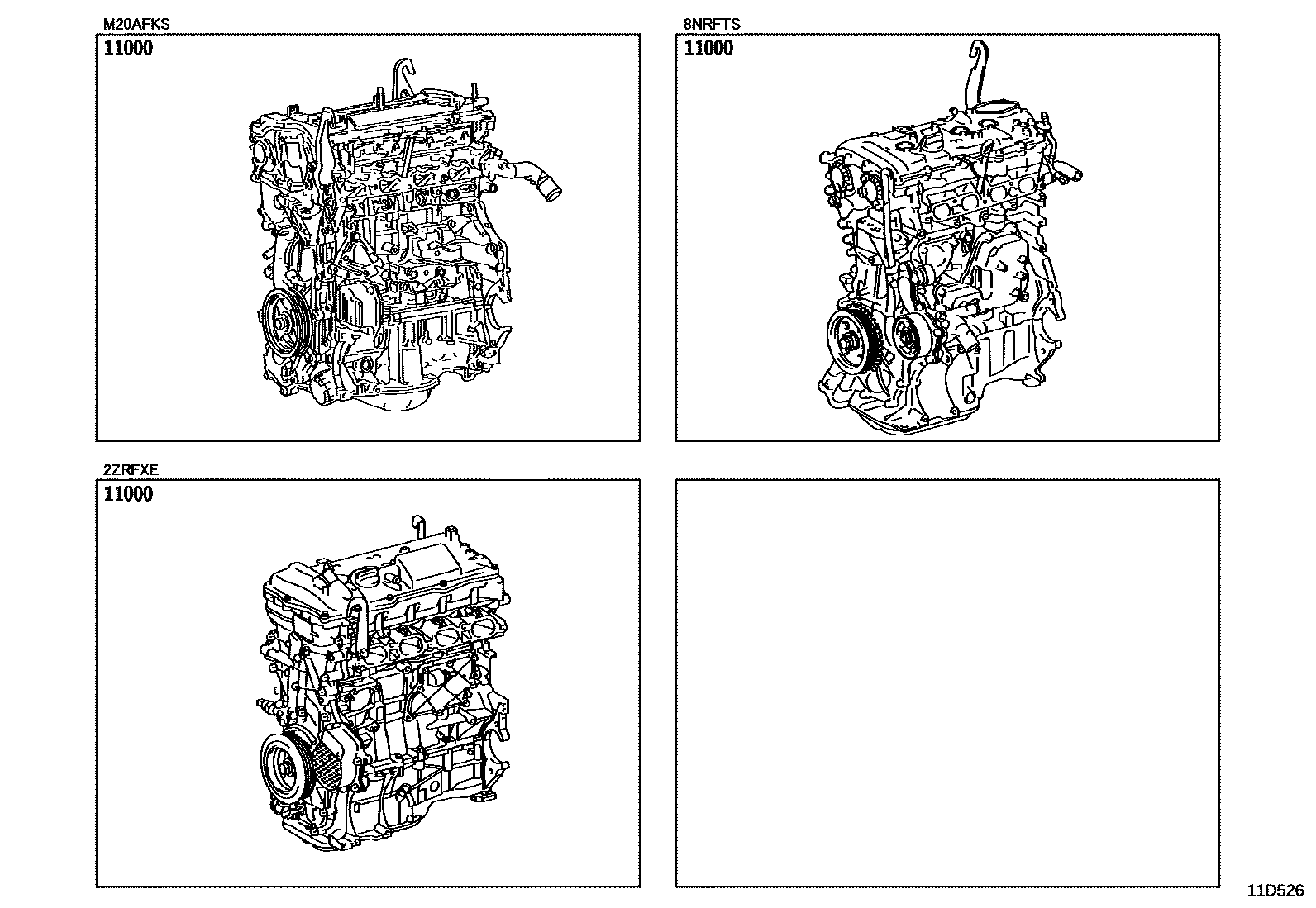

Toyota AURIS/COROLLA HB(JPP — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-24300iM20AFKS..MZEA12..TAIW201806-202209

main19000-24310iM20AFKS..MZEA12..CVT..ARL201806-202209

main19000-24380iM20AFKS..MZEA12..ARL202209-202508

main19000-24410iM20AFKS..MZEA12..TAIW202209

main19000-37800i2ZRFXE..ZWE211201806-202110

sub16281-37190

sub25601-37060

main19000-37A70i2ZRFXE..ZWE219202209

main19000-37B00i2ZRFXE..ZWE211202110

main19000-47470i8NRFTS..NRE210201806

1 parts on this diagram · 1 diagram in section
