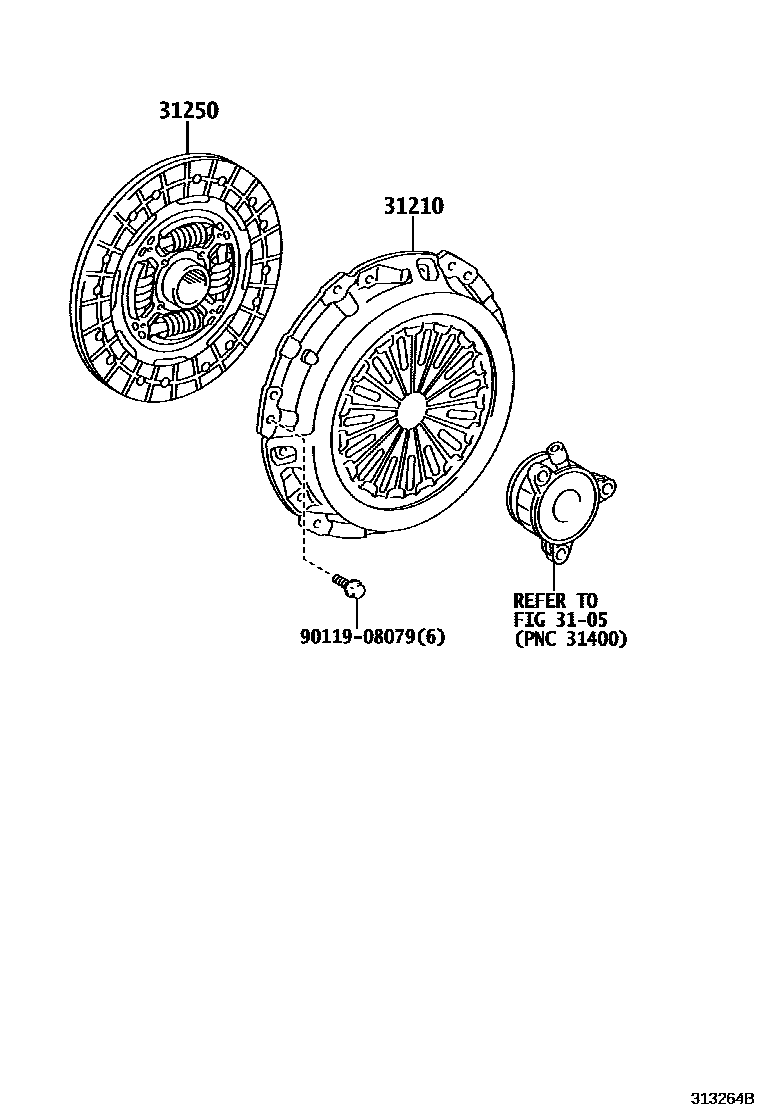

Toyota AURIS/COROLLA HB(JPP — CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-12371i201806

main31210-12390i201806

31250DISC ASSY, CLUTCH

main31250-12670i201806

main31250-12680i201806

9011908079

main90119-08079

4 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota AURIS/COROLLA HB(JPP

This section contains 5 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota AURIS/COROLLA HB(JPP. Key components include: CLUTCH RELEASE CYLINDER, COVER ASSY, CLUTCH, DISC ASSY, CLUTCH.
