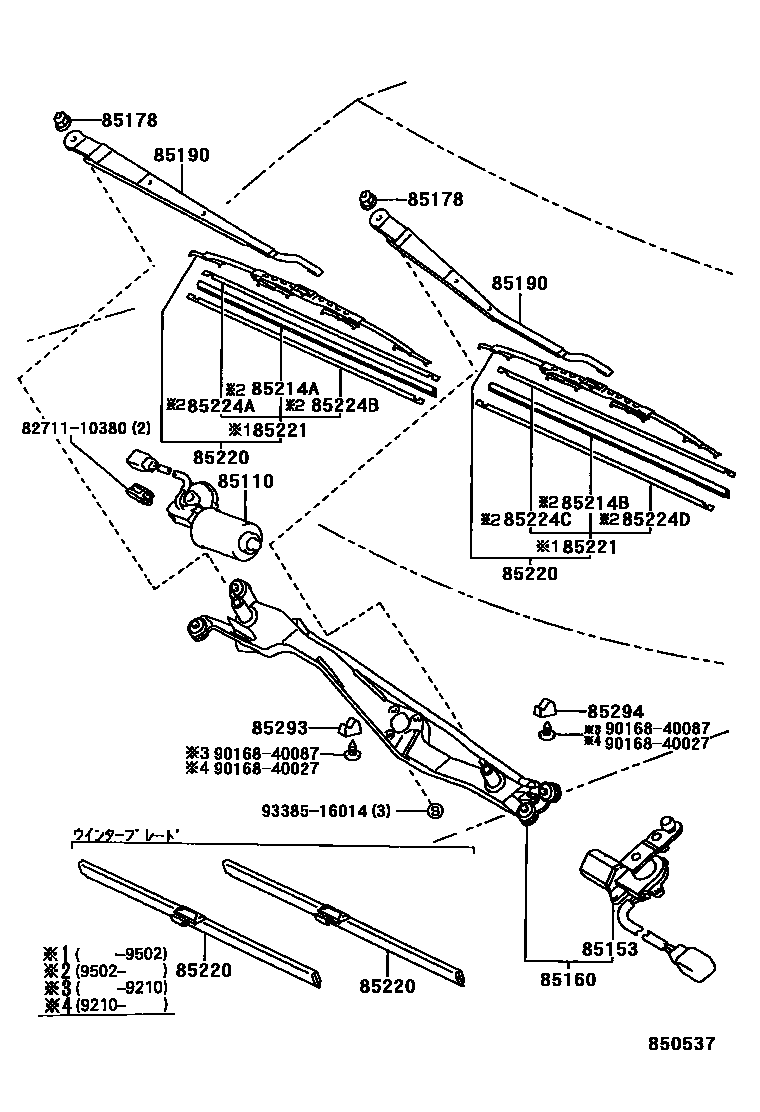

Toyota ARISTO — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85153MOTOR, FULL AREA WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
85221BLADE, WINDSHIELD WIPER
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85293STEP, LINEAR WIPER, RH
85294STEP, LINEAR WIPER, LH
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9016840027
main90168-40027
9016840087
main90168-40087
9338516014
main93385-16014
19 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota ARISTO
This section contains 19 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota ARISTO. Key components include: MOTOR ASSY, WINDSHIELD WIPER, MOTOR, FULL AREA WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER.
