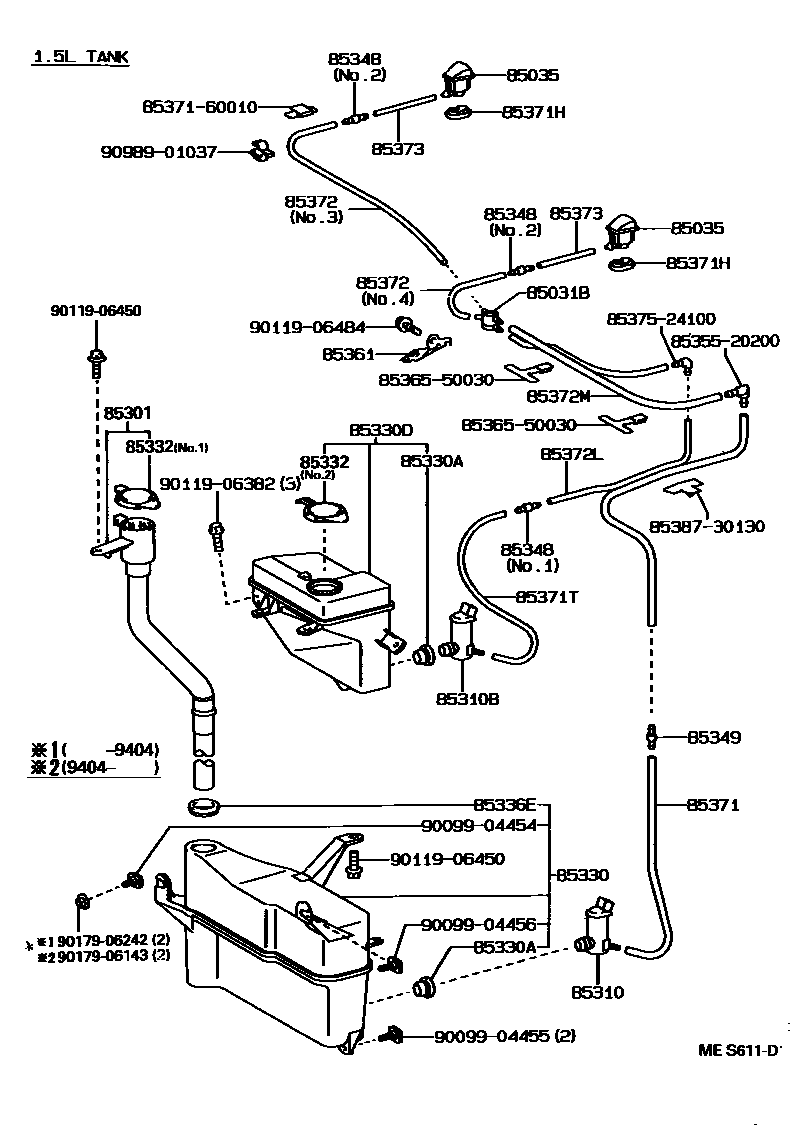

Toyota ARISTO — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
sub85330-10280
85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER
sub85330-33020
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85330DJAR ASSY, WASHER
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85361HOLDER, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
8535520200VALVE, WINDSHIELD WASHER HOSE
main85355-20200
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-60010
8537524100HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-24100
8538730130CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-30130
9009904454
main90099-04454
9009904455
main90099-04455
9009904456
main90099-04456
9011906382
main90119-06382
9011906450
main90119-06450
9011906484
main90119-06484
9017906143
main90179-06143
9017906242
main90179-06242
9098901037
main90989-01037
34 parts on this diagram · 1 diagram in section
