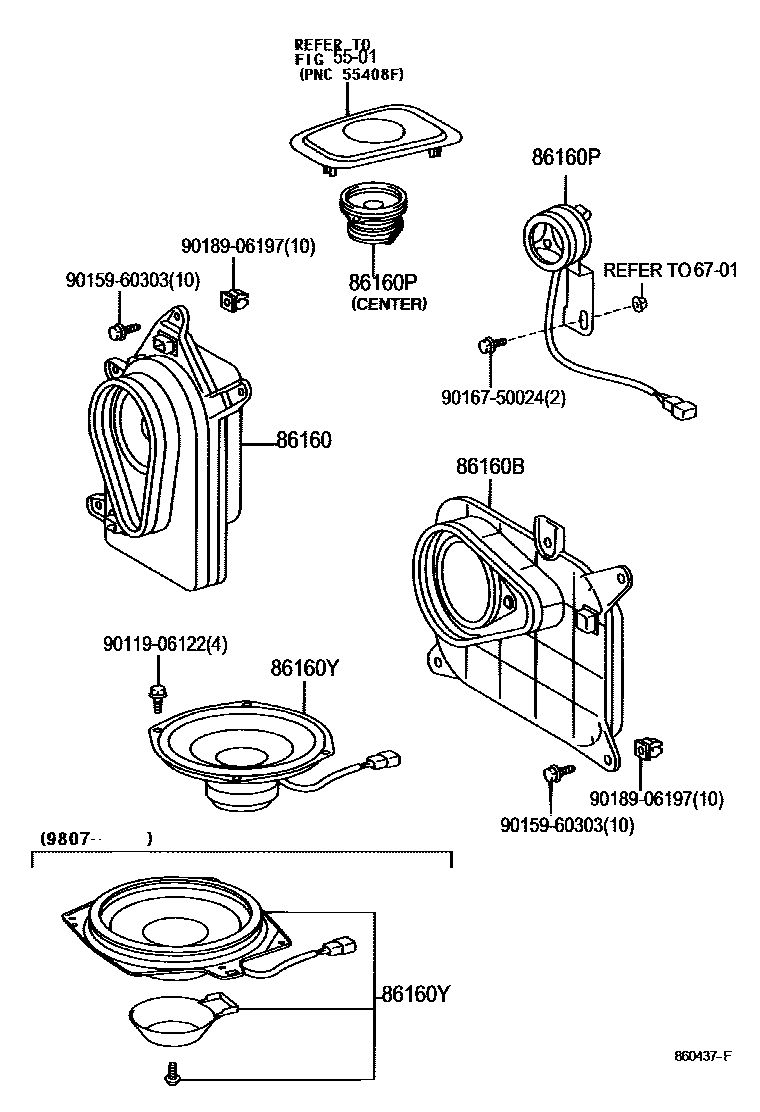

Toyota ARISTO — SPEAKER

5501

6701

86160SPEAKER ASSY, FRONT NO.1

main86150-30250iJZS160199708-199908

main86150-30251iJZS160199908-200501

main86150-30260iJZS160199708-199908

main86150-30261iJZS160199908-200501

main86160-0W030iJZS16#199708-200501

main86160-0W040iJZS16#199708-200501

86160BSPEAKER ASSY, REAR

main86150-30270iJZS160199708-199908

main86150-30271iJZS160199908-200501

main86150-30280iJZS160199708-199908

main86150-30281iJZS160199908-200501

main86160-0W050iJZS16#199708-200501

main86160-0W060iJZS16#199708-200501

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W080iJZS16#199708-200501

main86160-0W090iJZS16#199708-200501

main86160-0W100iJZS16#199708-200501

main86160-3A320iJZS160199708-200501

main86160-3A330iJZS160199708-200501

86160YSPEAKER ASSY, REAR NO.2

main86160-0W070iJZS16#199708-199811

main86160-0W071iJZS16#199811-200501

9011906122

main90119-06122

9015960303

main90159-60303

9016750024

main90167-50024

9018906197

main90189-06197

10 parts on this diagram · 1 diagram in section
